Draw-Tite 30095 FIFTH WHEEL RAILS - Manual (Page 6)

30095N 1/30/12 REV. H
©2012 Cequent Performance Products, Inc. PRINTED IN XXX 6

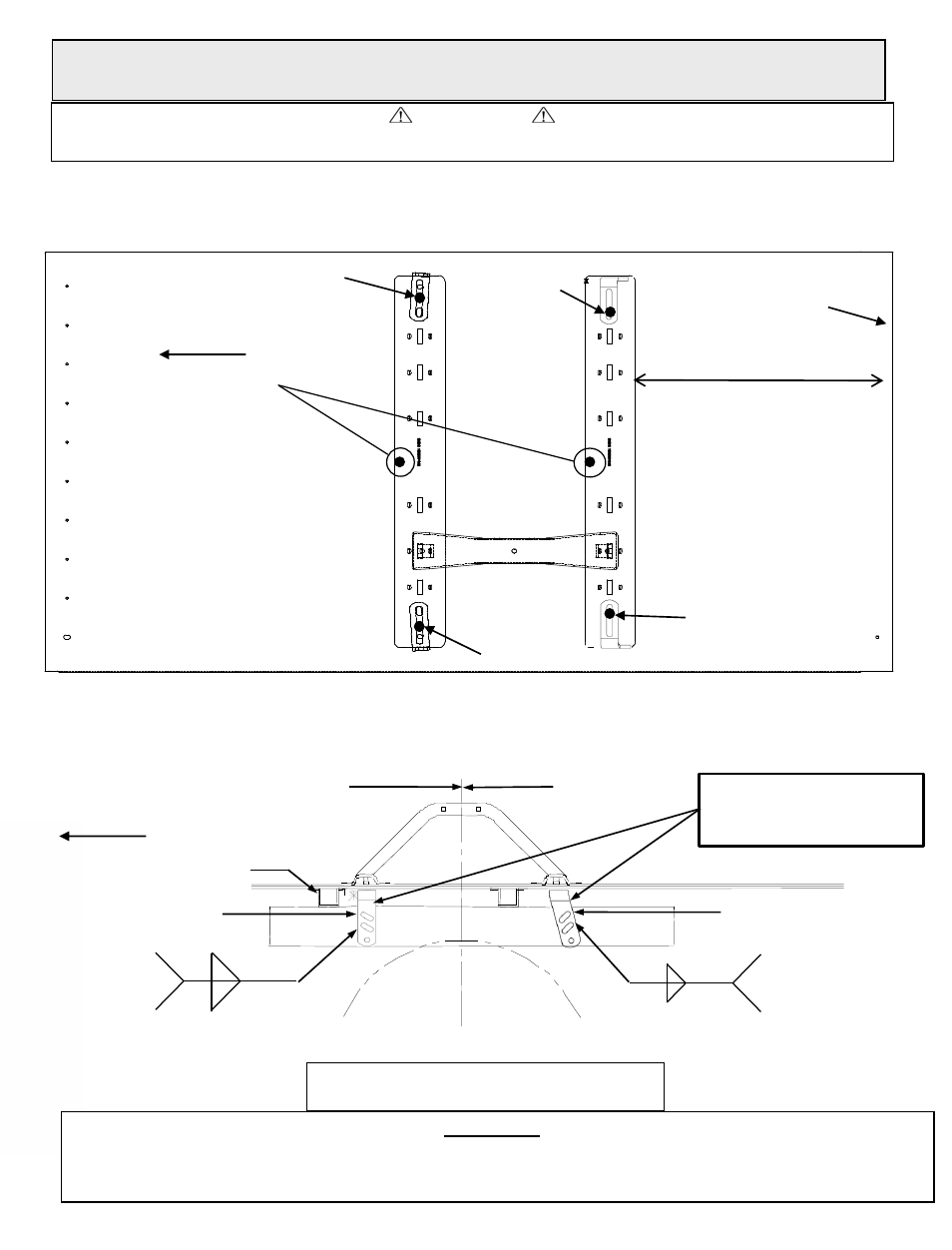

Front of
Vehicle
Fifth wheel hitches over
18k must have a center
bolt in the center hole in
both rails.
Note: Place center bolt in
the hole that does not
interfere with the bed sill. If
needed, flip the rail around.
Center bolts and hardware
are supplied with Fifth
wheel or gooseneck
hitches that are rated over
18k.
Rear Edge of
Truck Bed
Measure from rear edge of
truck bed to rear edge of
base rail
Long Bed = 29 7/16”
Short Bed =23 15/16”
* Optional weld
pattern
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
Cequent Performance Products, Inc. does its best to communicate tow vehicle manufacturer changes; however, it is ultimately
the responsibility of the installer to prevent damage due to installation.
CAUTION!
Read pages 1-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
CHEVROLET/GMC 88-98 & 92-98 4-DOOR & 99 SILVERADO
SIERRA CLASSIC (WITH TAPERED FRAME) (RED TURN SIGNALS)
Axle Center
1/4 1.5-3
1/4 2
*
1/4 2
1/4 2
*
Drivers side 1/2 ton Long Box shown
King Pin Center
over Axle Center
Straight bracket Angle bracket
Bed Sill
Front of
Vehicle
Note: Pull wire provided, will be needed to install
hardware in brackets through frame.
IMPORTANT NOTES FOR THIS INSTALLATION:
1. Find parallel rows of bed sill spot welds in bed of truck. No drilling should be done in the approximately 4 ” between
parallel rows of spot welds where the bed sill sets.
Center Hole
Inside Hole
Inside Hole
Center Hole
Left, right angle and frame
brackets maybe place where
ever brackets fits best.
