Draw-Tite 30095 FIFTH WHEEL RAILS - Manual (Page 10)

30095N 1/30/12 REV. H
©2012 Cequent Performance Products, Inc. PRINTED IN XXX 10

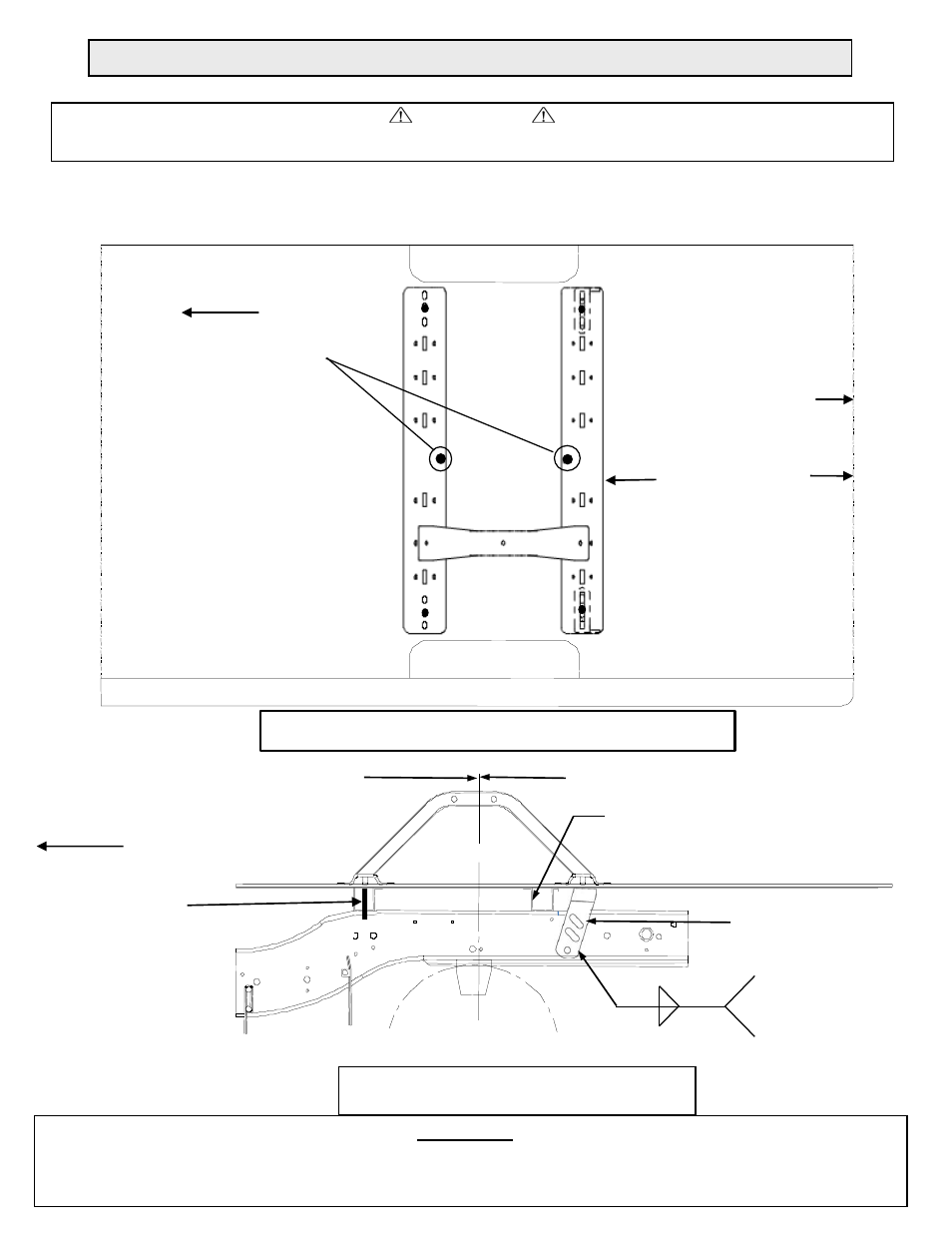

King Pin Center approx.
Over Axle Center
Axle Center
1/4 2
1/4 2
*
*
Optional
weld
pattern
Drivers side Ram 1500 Shown
Angled
bracket
Bed Sill
Front
of
Vehicle
CAUTION!
Read pages 1-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
94-01 DODGE 1500 & 94-02 DODGE 2500, 3500 LONG BED AND SHORT BED
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
Cequent Performance Products, Inc. does its best to communicate tow vehicle manufacturer changes; however, it is ultimately
the responsibility of the installer to prevent damage due to installation.
Note: Pull wire provided, may be needed to install
hardware in brackets through frame.
Front of Vehicle
28- 7/16” Long Bed
24- 5/16” Short Bed
Measure from Rear Edge of
truck bed to rear edge of
base rail.
Rear Edge of
Truck Bed
Fifth wheel hitches over
18k must have a center
bolt the center hole in both
rails.
Note: Place center bolt in
the hole that does not
interfere with the bed sill. If
needed, flip the rail around.
Center bolts and hardware
are supplied with Fifth
wheel or gooseneck
hitches that are rated over
18k.
IMPORTANT NOTES FOR THIS INSTALLATION:
1. Find parallel rows of bed sill spot welds in bed of truck.
See following page
for carriage bolt (9)
installation
instructions.
Instructions continued on the next page.
