Draw-Tite 30095 FIFTH WHEEL RAILS - Manual (Page 4)

30095N 1/30/12 REV. H
©2012 Cequent Performance Products, Inc. PRINTED IN XXX

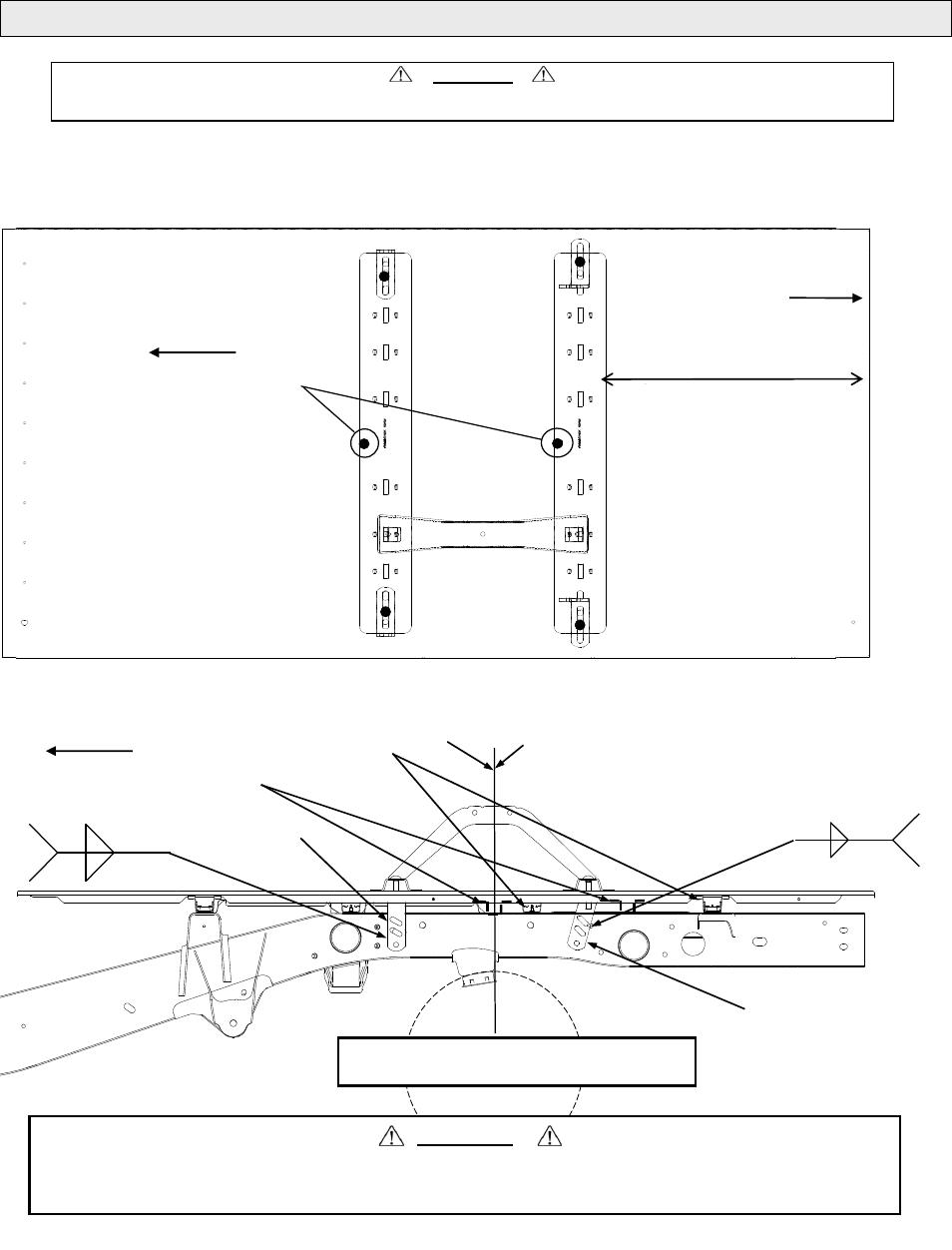

Drivers side of 3/4 ton HD shown
* Optional weld
pattern
Straight frame
bracket
Angled bracket
On inside of frame
1/4 2
1/4 2
* 1/4 1.5-3
1/4 2
*
King pin
Long Bed Sills
Short Bed Sills
Front of
Vehicle
Note: Pull wire provided, will be needed to install
hardware in brackets through frame.
Axle center
Front of
Vehicle
Rear Edge of
Truck Bed
Measure from rear edge of
truck bed to rear edge of
base rail
Fifth wheel hitches over 18k
must have a center bolt in the
center hole in both rails.
Note: Place center bolt in the
hole that does not interfere
with the bed sill. If needed, flip
the rail around.
Center bolts and hardware
are supplied with Fifth wheel
or gooseneck hitches that are
rated over 18k.
Long Bed = 29 11/16”
Short Bed =25 3/16”
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
Cequent Performance Products, Inc. does its best to communicate tow vehicle manufacturer changes; however, it is ultimately
the responsibility of the installer to prevent damage due to installation.
4
Chevy and GM 2011 & 2012 2500 HD & 3500 HD Silverado and Sierra
CAUTION!
Read pages 1-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
IMPORTANT NOTES FOR THIS INSTALLATION:
1. Find parallel rows of bed sill spot welds in bed of truck. No drilling should be done in the approximately 4 ” between
parallel rows of spot welds where the bed sill sets.
