Draw-Tite 30095 FIFTH WHEEL RAILS - Manual (Page 14)

30095N 1/30/12 REV. H
©2012 Cequent Performance Products, Inc. PRINTED IN XXX 14
1/4 2
*
1/4 2
1/4 2
*

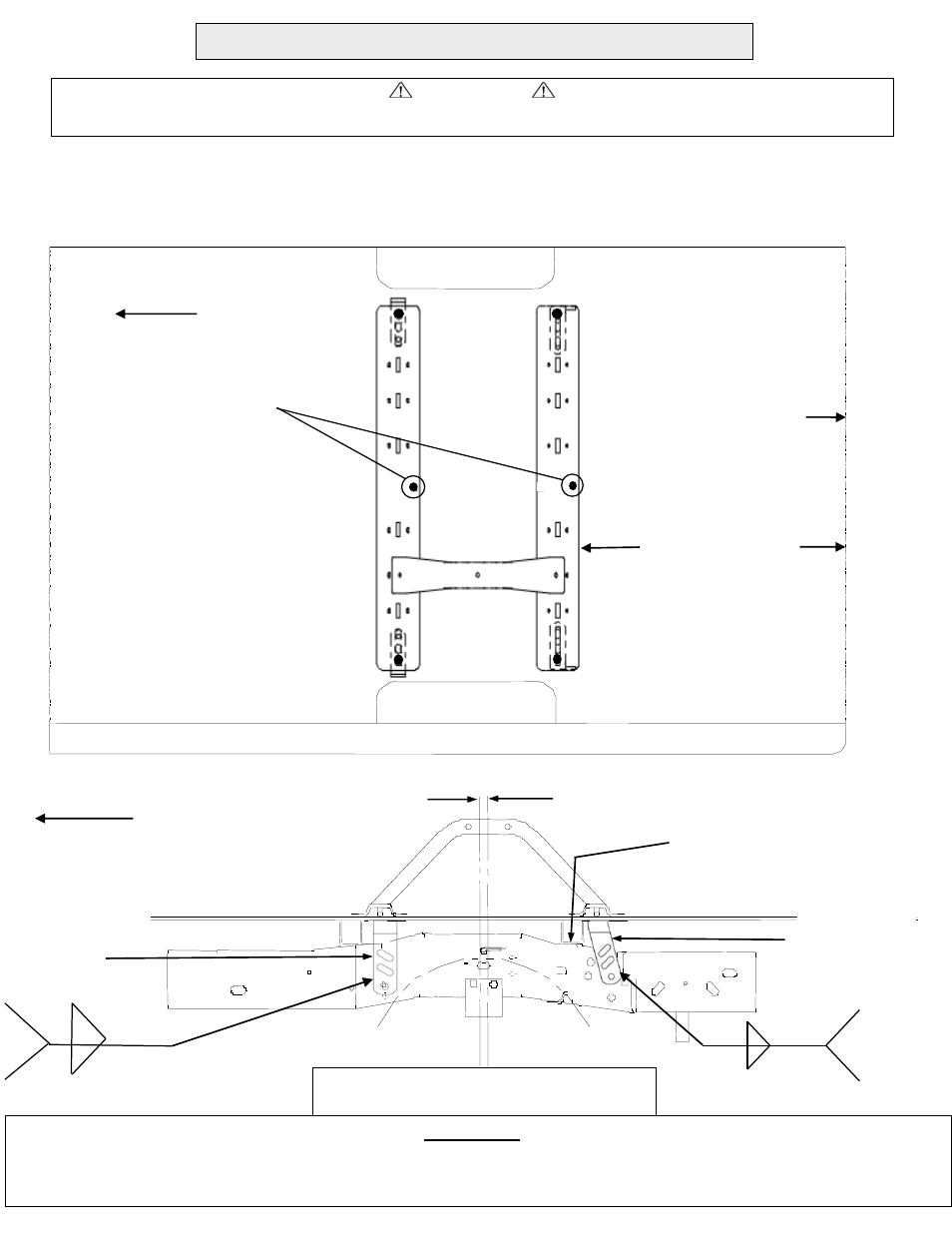

Axle Center
King Pin Center approx
. 1/2” rearward of
Axle Center
Drivers side of F350 Super Duty
long bed Shown
* Optional weld pattern
STRAIGHT
BRACKET
Angled bracket
Bed Sill
Front of
Vehicle
1/4 2
Front of Vehicle
30 3/16 ” Long Bed
and Short Bed
Measure from Rear Edge of
truck bed to rear edge of base
rail.
Rear Edge of
Truck Bed
CAUTION!
Read pages 1-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
1992-2004 FORD F-250 & F-350 SHORT & LONG BED
Fifth wheel hitches over
18k must have a center
bolt in the center hole in
both rails.
Note: Place center bolt in
the hole that does not
interfere with the bed sill. If
needed, flip the rail around.
Center bolts and hardware
are supplied with Fifth
wheel or gooseneck
hitches that are rated over
18k.
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc. Cequent
Performance Products, Inc. does its best to communicate tow vehicle manufacturer changes; however, it is ultimately the responsibility of the
installer to prevent damage due to installation.
IMPORTANT NOTES FOR THIS INSTALLATION:
1. Find parallel rows of bed sill spot welds in bed of truck. No drilling should be done in the approximately 4 ” between parallel
rows of spot welds where the bed sill sets.
Note: Pull wire provided, will be needed to install
hardware in brackets through frame.
