Draw-Tite 30095 FIFTH WHEEL RAILS User Manual
Installation instructions, Fig. 1

30095N 1/30/12 REV. H
©2012 Cequent Performance Products, Inc.
PRINTED IN XXX
INSTALLATION INSTRUCTIONS
30095 BASE RAIL MOUNTING KIT
For Installation Assistance or Technical Help, Call 1-888-521-0510
(1) Provide this Manual to end user.
(2) Physically demonstrate procedures in this Manual to end user.
(3) Have end user demonstrate that he/she understands procedures.
(1) Read and follow this Manual every time you use Hitch.
(2) Save this Manual for future reference.
(3) Pass on copies of Manual to any other user or owner of Hitch.
DEALER/INSTALLER:
END USER:
BASE RAIL KIT QTY.
1. STRAIGHT FRAME BRACKET
(2)
2. ANGLED FRAME BRACKET (RH)
(1)
3. ANGLED FRAME BRACKET (LH)
(1)
4. FILLER SPACER – 5/16” THICK (4)
5. 5/8” x 3-1/2” CARRIAGE BOLTS GR 5
(4)
6. ½” x 1-1/2” KNURLED BOLTS GR 5
(8)
7. 1/2” NUTS
(8)
8. 1/2” SERRATED WASHERS
(8)
9. 5/8” x 6” CARRIAGE BOLT GR 5
(2)
10. TUBE SPACER - 1-1/4” LONG (4)
11. BASE RAILS
(2)
12. TUBE SPACER – 2-3/8” LONG (2)
13. 5/8” SERRATED WASHERS
(4)
14. 5/8” NUTS
(4)
15. ½” PULL WIRE
(4)
16. U-SHAPED BRACKET (2)
NOTE: ALL HARDWARE WILL NOT BE USED ON ALL INSTALLATIONS

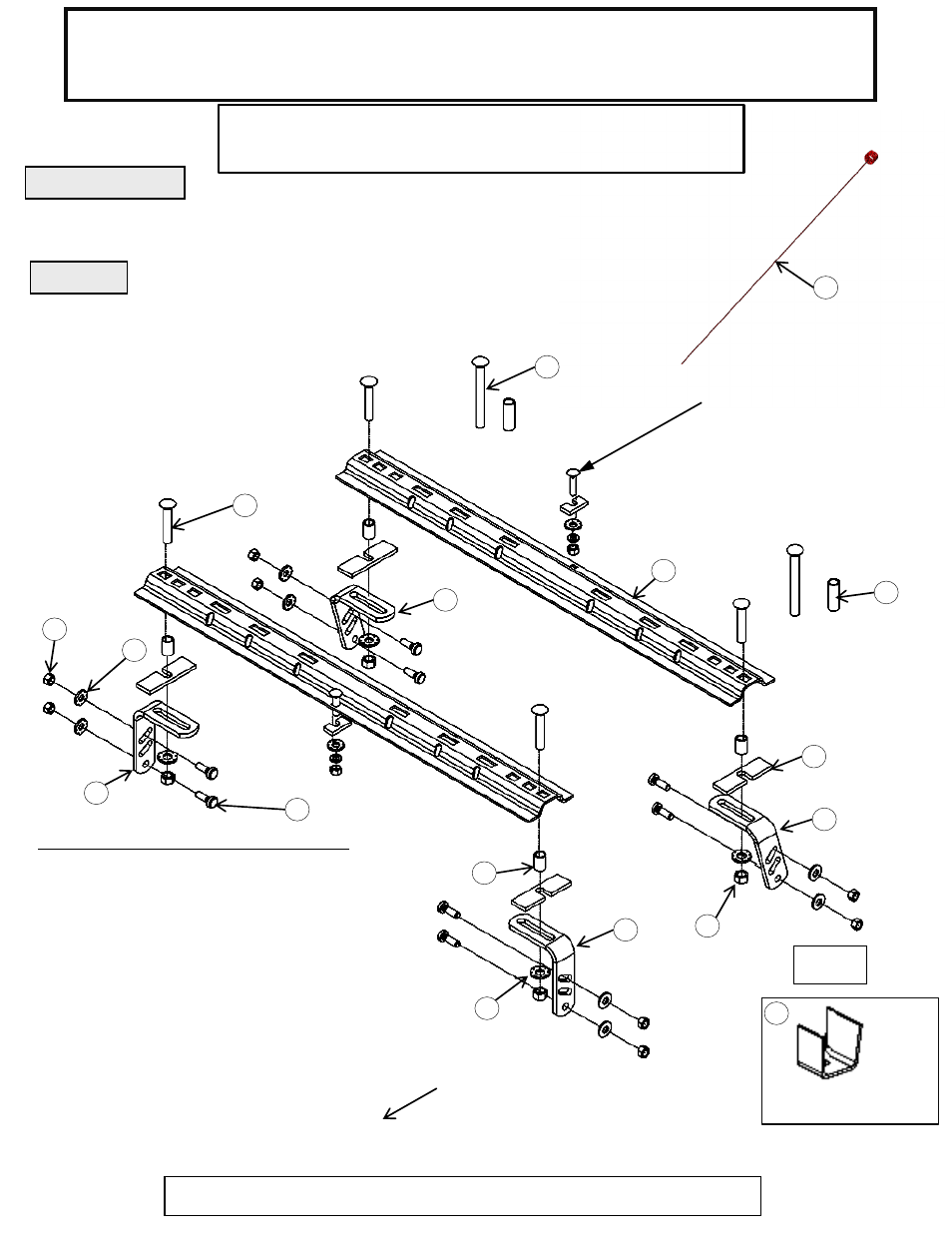

Fig. 1
Center bolts and hardware
are supplied with Fifth
wheel or gooseneck
hitches that are rated
over 18k.
15
For updated instructions see
www.ReeseProducts.com or www.Draw-Tite.com
1
10
3
9
2
4
12
11
1
8
7
6
13
5*
14
NOTE: SEE PG. 9 FOR USE OF
U-SHAPED BRACKETS
16
*
FOR EASE OF INSTALLATION:
5/8” x 3-1/2” HEX BOLT MAY BE USED ALONG WITH A
FLAT WASHER ABOVE THE RAIL IN PLACE OF THE
5/8” x 3-1/2” CARRIAGE BOLT (GRADE 5 OR HIGHER).
HEX BOLT AND WASHER NOT SUPPLIED.
Front of Vehicle
