PL – Power Level: Select/Read transmitter output power. This is a pull
down option. Selections are:
0
– 10dBm (Lowest)
1 – 12dBm (Low)
2 – 14dBm (Medium)
3 – 16dBm (High)
4 – 18dBm (Highest)
CA
– CCA Threshold: Set/read the Clear Channel Assessment (CCA)
threshold. If the modem detects energy above the CCA Threshold, if will
not transmit. The CCA parameter is measured in units of -dBm. The
range is 0x0 to 0x50.
Sleep Mode (Non Beacon): Configure low power options for non-
beaconing systems.

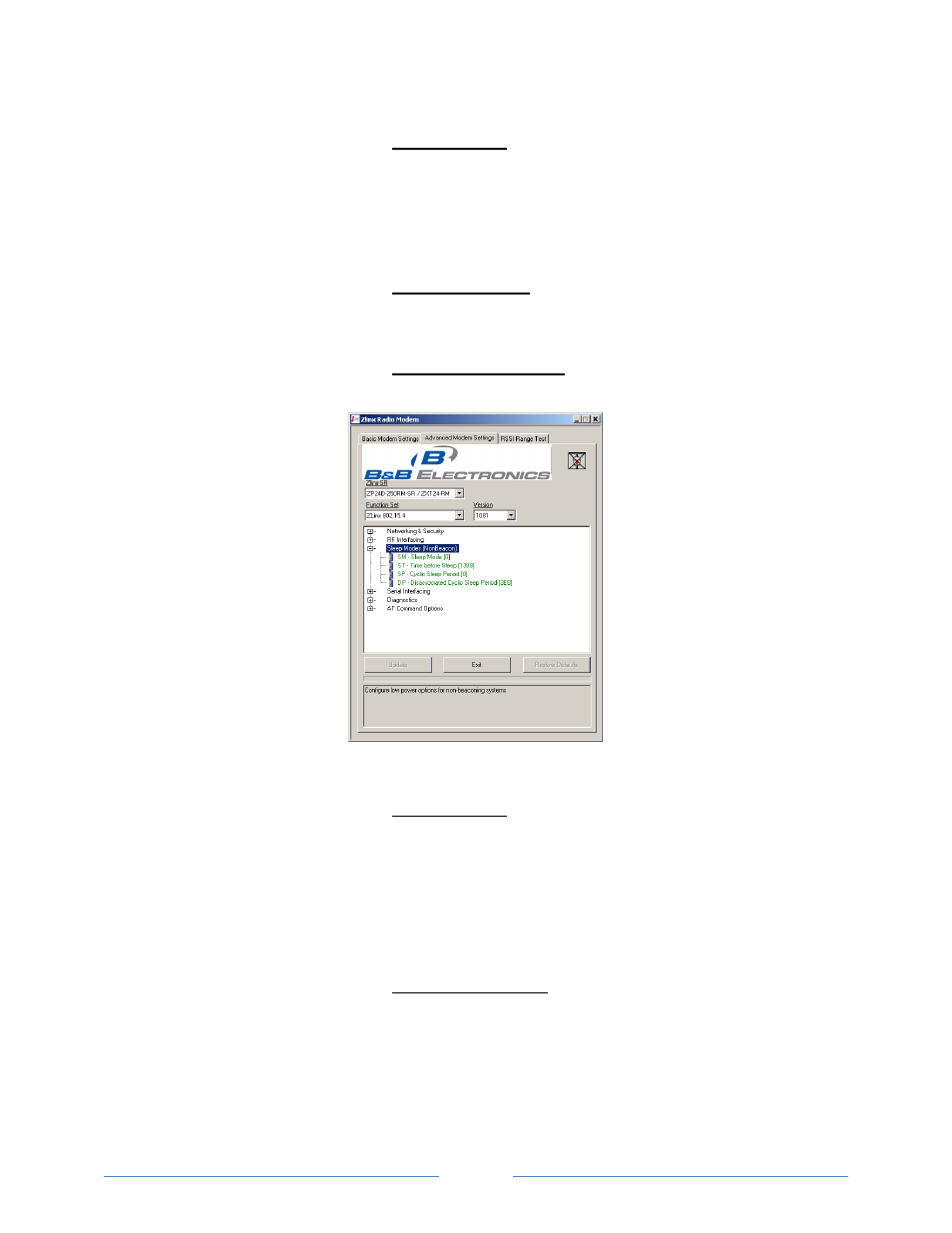

Figure 5-33 Sleep Mode (Non Beaconing) (ZXT24-RM)
SM – Sleep Mode: Set/read sleep mode: Pin Hibernate is lowest power,
Pin Doze provides the fastest wake up, Cyclic Sleep Remote with or
without pin wake up. This is a pull down option. Selections are:
0
– No Sleep
1 – Pin Hibernate
2 – Pin Doze
3 – Reserved (NOT USED)
4 – Cycle Sleep Remote
5 – Cycle Sleep Remote with Pin
ST
– Time Before Sleep: Set/read time period of inactivity (no serial or
RF data is sent or received) before activating Sleep Mode. The ST
parameter is used only with Cyclic Sleep settings (SM=4-5). Set ST on
Cyclic Sleep Coordinator to match Cyclic Sleep Remotes. Range is 0x1
to 0xFFFF.
