3.6 Optional Antennas
3.6.1 Omni Antenna Description
In some applications, a higher gain Omni directional antenna may be required. An Omni-
directional antenna is an antenna system which radiates power uniformly in one plane with
a directive pattern shape in a perpendicular plane. This pattern is often described as
"donut shaped". Omni-directional antenna can be used to link multiple directional
antennas in outdoor point-to-multipoint communication.
Omni Directional antennas are a good choice if you need to mount your antenna on a
mast to increase its elevation. Please note that mounting brackets must also be
purchased. Also note that these antennas have an N style connector. Refer to section 3.9
to select the correct cable.

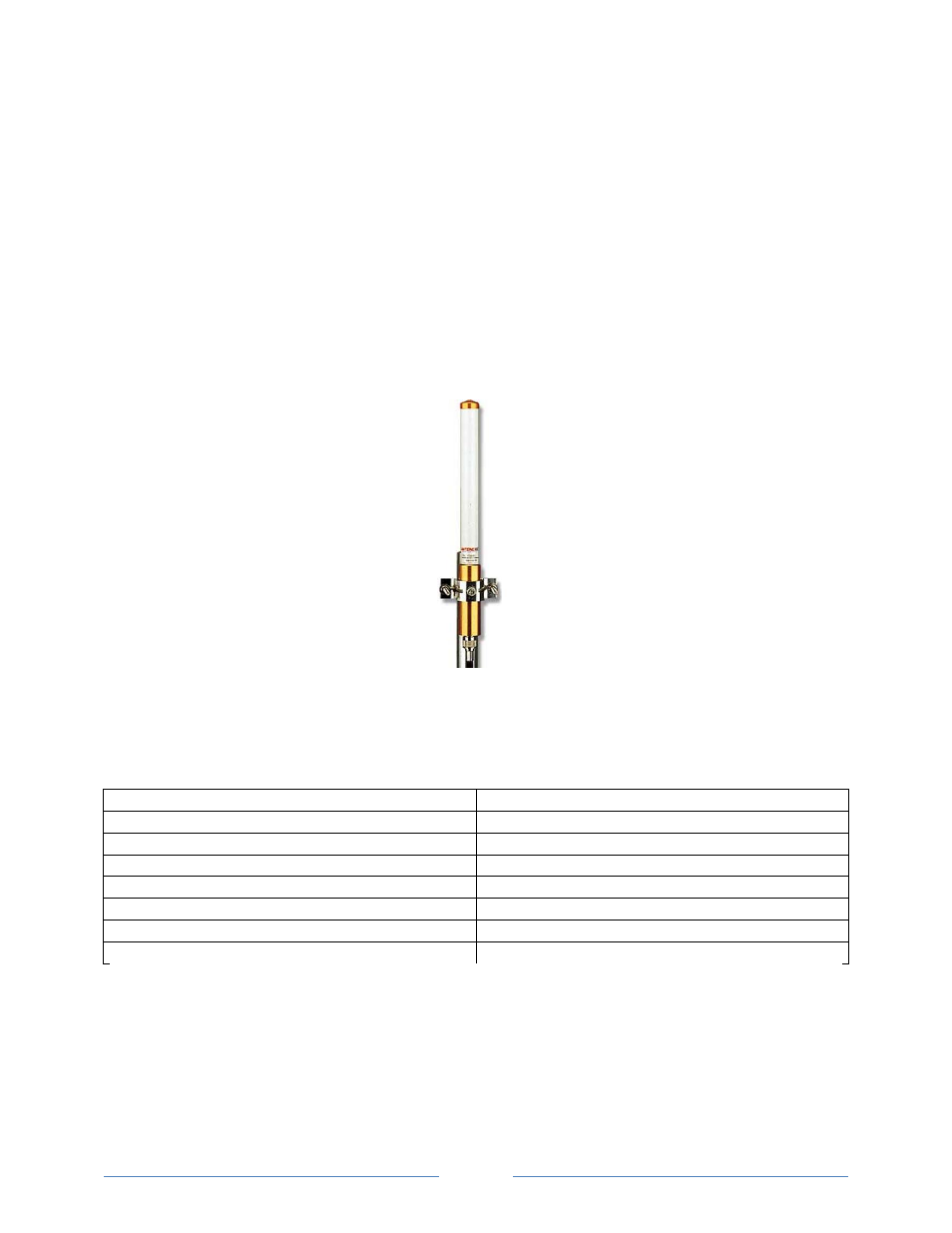

Figure 3-10 Representative Photograph of Optional Omni Antenna
FG9023 – High Gain Omni Directional (900 MHz)
Use With ZXT9-RM (900 MHz)
Impedance 50Ω
Connector N Female
VSWR 2:1 Max (In Band)
Gain 3 dBi
Polarization Vertical
Length 25 inches (63.5 cm)
Mounting Brackets (Not Included) FM2
