6.6 Firmware Update
6.6.1 Caution
A firmware update should never be interrupted before it is finished.
6.6.2 Firmware update procedure
1. Download the new firmware file and store it in the firmware directory:
C:\Program Files\B&B Electronics\Zlinx\Zlinx Manager\update
2. Connect your PC to the radio modem using a USB cable.
3. From the manager launch screen, click on the radio modem firmware update link.

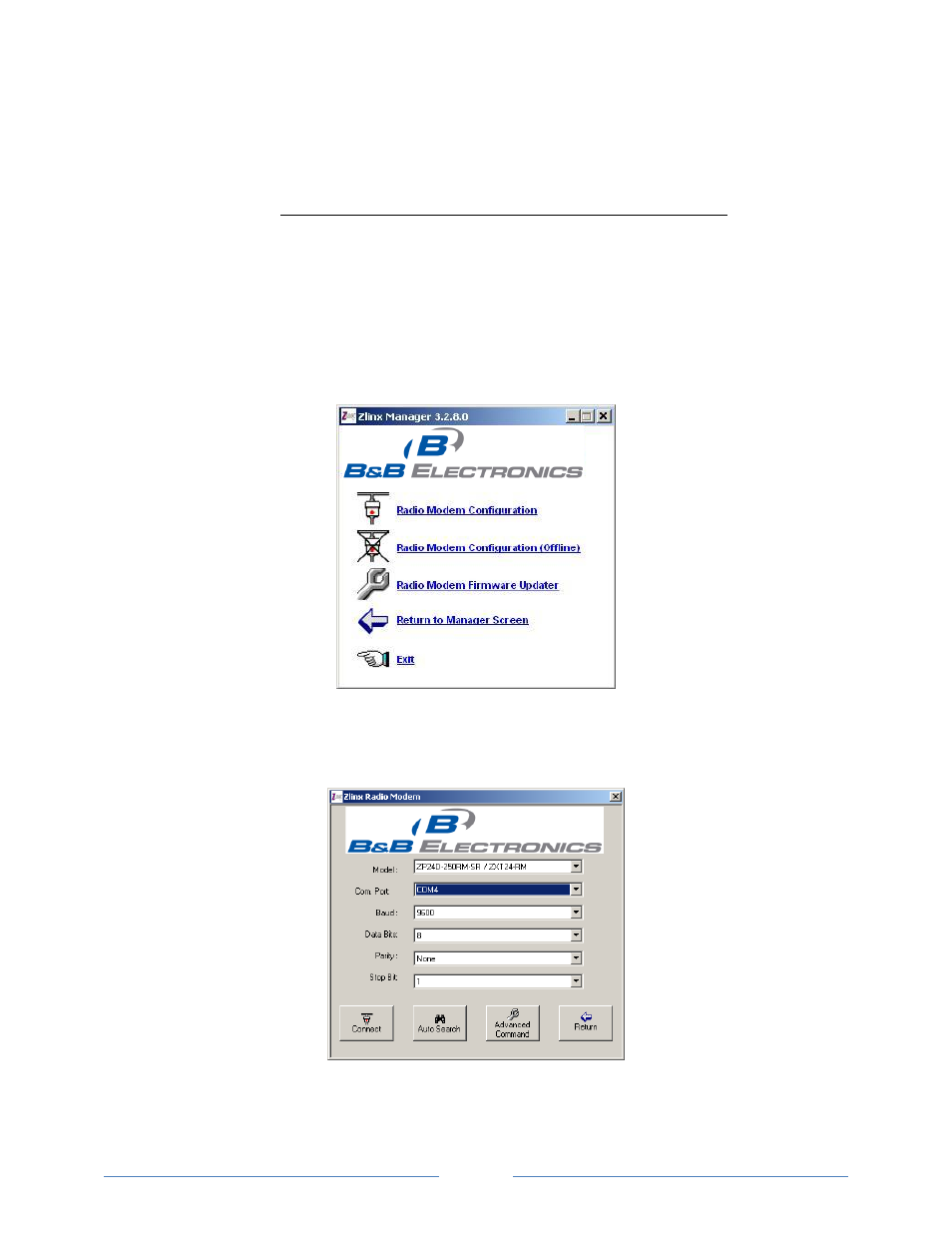

Figure 6-2 Manager Launch Screen
4. The radio modem communications parameters screen will appear. Verify the
parameters and click the connect button
.
Figure 6-3 Radio modem communications parameters screen
