C.3 Supplied Antenna

The supplied antenna has a male RPSMA connector. The antenna is attached to the female RPSMA
jack on the enclosure. In order to operate, the antenna must be vertical.

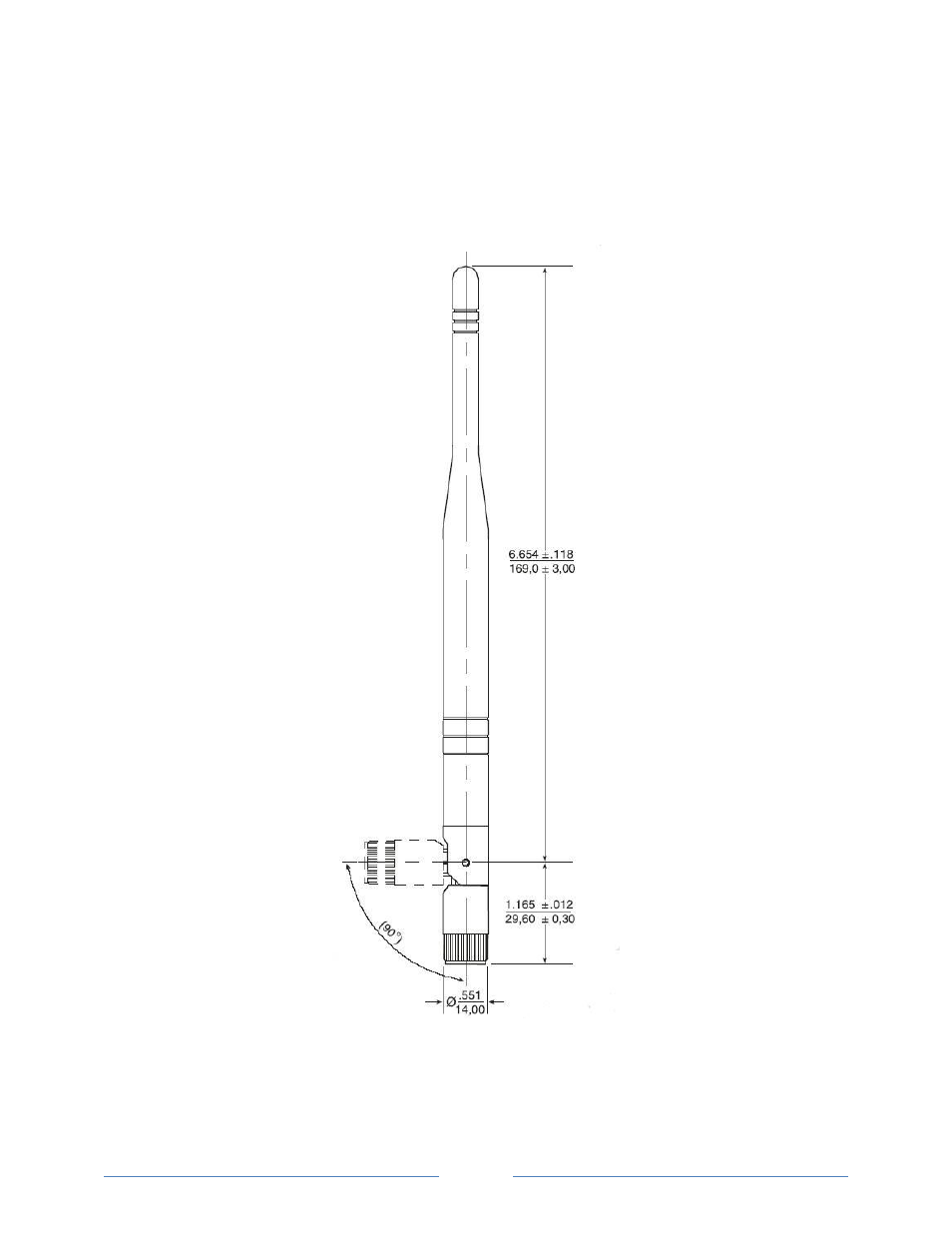

900 MHz Antenna Diagram
