Section Eight
– Testing and Trouble Shooting
8.0 Testing and Trouble Shooting
8.1 RSSI Range Test
The RSSI Range Test is used to check communication between two radio modems.
1. Connect the first modem to a computer running the Zlinx
®
Manager software. Set up the
modem for RS-232 operation as described in Section Six.
2. Configure the second modem to RS-232 operation as described in Section Six. The
second modem will also require a loop-back setup.
a. RS-232 Configuration
1) Set Dip Switch 1 and 2 in the ON Position
3. In the Zlinx ® Manager Software, click the RSSI Range Test Tab.

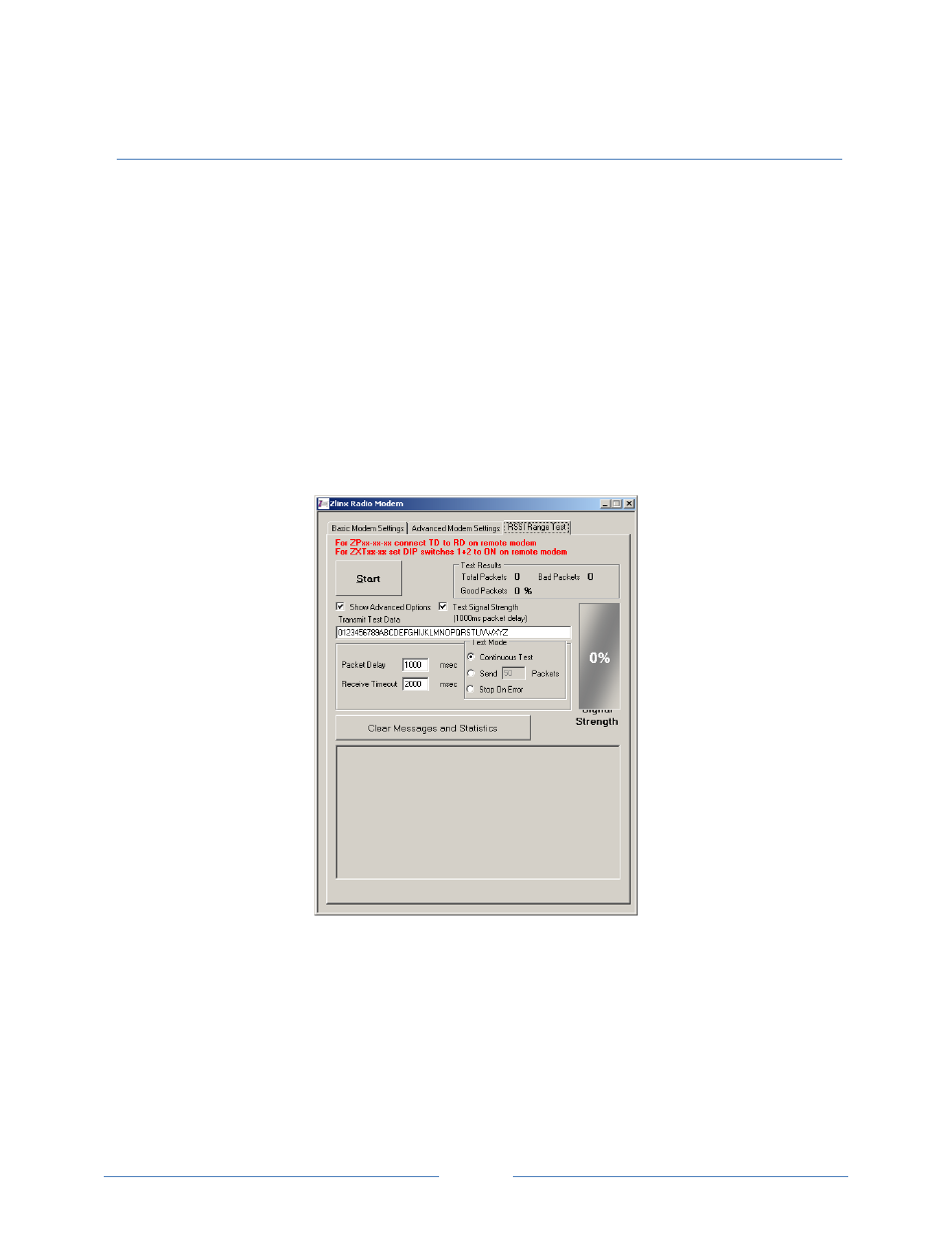

Figure 8-1 RSSI Range Test Screen
4. Press the „Start‟ button in the Zlinx ®
Manager RSSI Range Test screen. The screen will
change to show the results of the test.
