Document Number: pnZXTxRM-0712m
Page
34
Baud Rate: This allows you to specify the COM Port baud rate. Choices are from 1200 to
230400 baud.

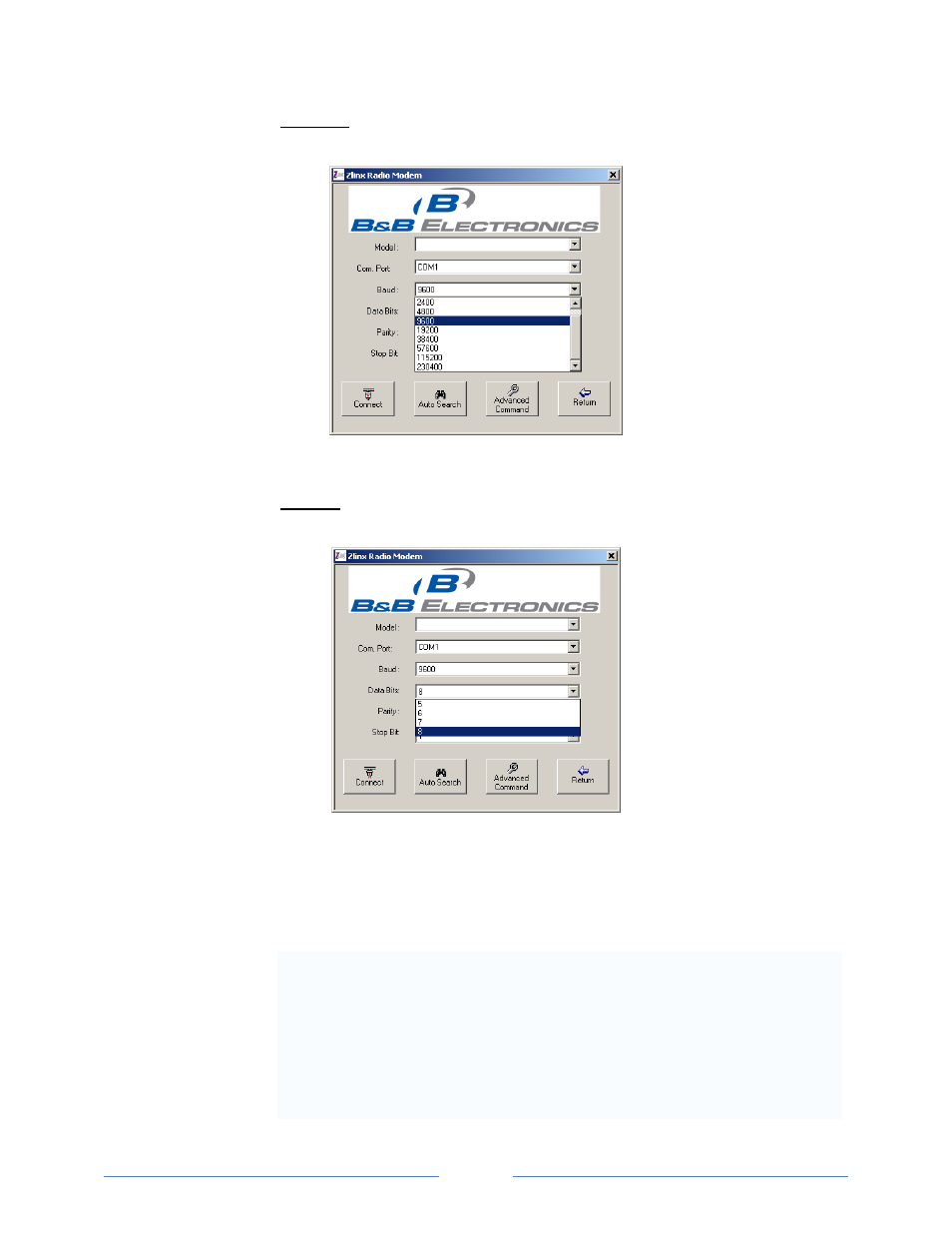

Figure 5-13 Baud Rate Pull Down Menu
Data Bits: This allows you to select the number of data bits. Choices are from five to
eight.
Figure 5-14 Data Bits Pull Down Menu
The number of data bits in each character can be 5 (for Baudot code), 6 (rarely used), 7
(for true ASCII), or 8 (for any kind of data, as this matches the size of a byte). Eight data
bits are almost universally used in newer applications. 5 or 7 bits generally only make
sense with older equipment.
