12.6.3 Data Transfer: Left Justified Mode

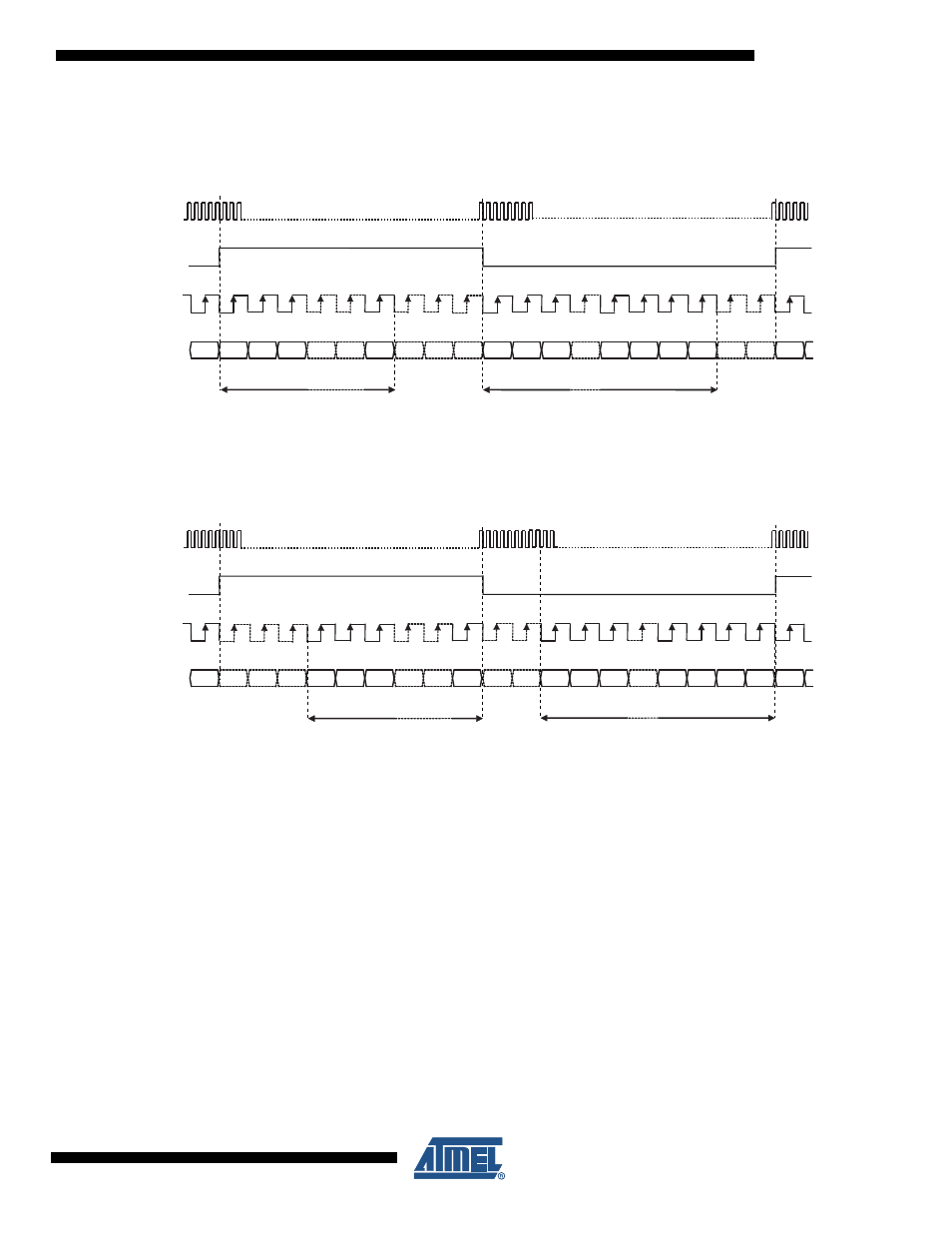

Figure 12-8. N-bit Left Justified Mode (FS = 44.1KHz - MCLK = 256 x FS)
12.6.4 Data Transfer: Right Justified Mode
Figure 12-9. N-bit Right Justified Mode (FS = 44.1KHz - MCLK = 256 x FS)
R
0
R
1
R
2
R
3
R
n-1
R n L
0
L
n-1
L
n
L
n-2
R
n-2
n bits Right Channel n bits Left Channel
LRFS
BCLK
SDOUT
MCLK
SDIN
R 0 R 1 R 2 R 3 R n-1 R n L 0 L n-1 L n L n-2 R n-2
n bits Right Channel n bits Left Channel
LRFS
BCLK
SDOUT
MCLK
SDIN
