147
11050A–PMAAC–07-Apr-10
AT73C246
15.4 LDO3
Unless otherwise noted, the reported measurement were performed at room temperature. External components are those
described in
Section 5. “Application Block Diagram” on page 8 .

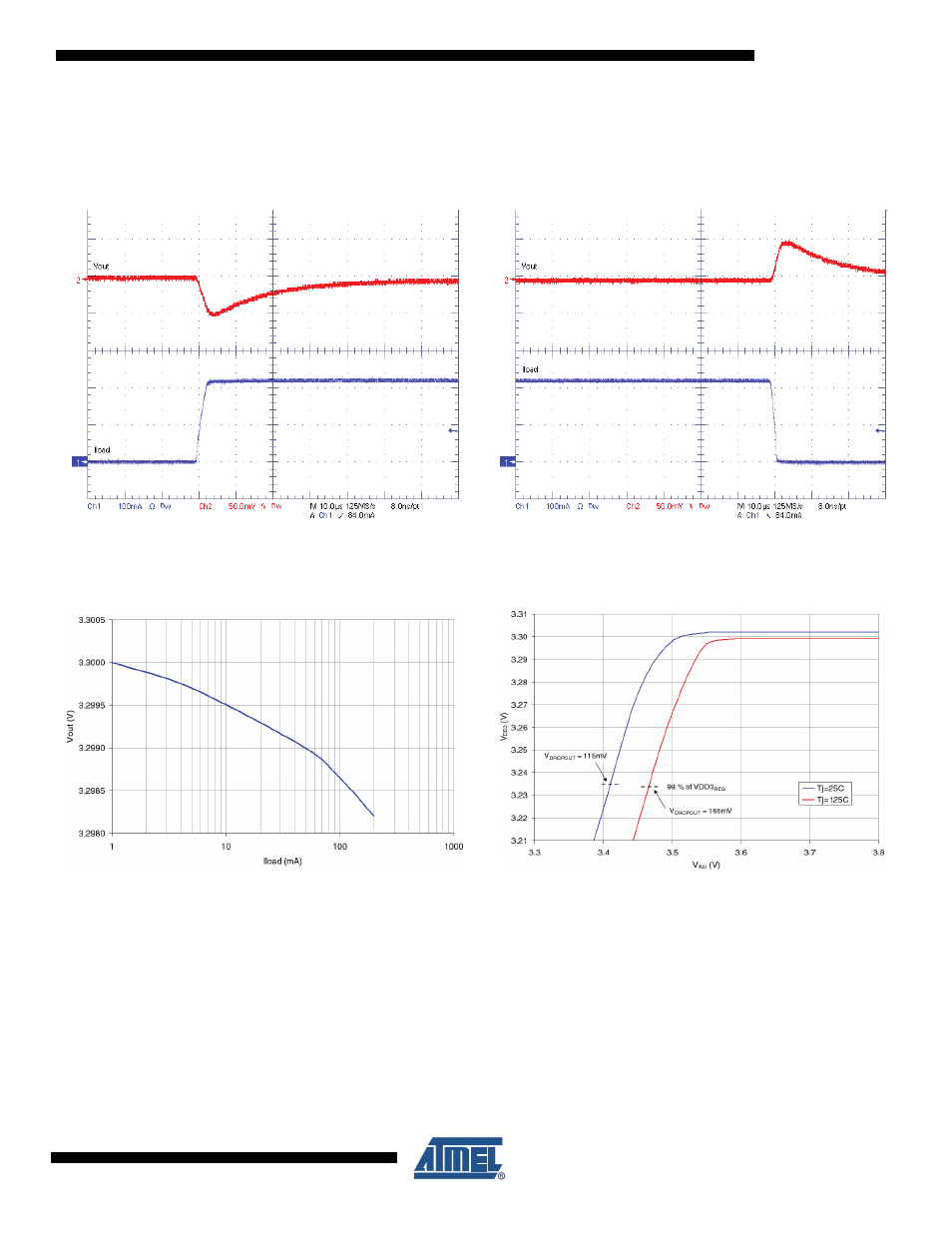

Figure 15-12. LDO3 Transient and Static Load Regulation Performance
LDO3- VIN = 5.5V - VDD3 = 3.3V
Load Step 0 To 200mA / 1us
LDO3 - VIN = 5.5V - VDD3 = 3.3V
Load Step 200 To 0mA / 1us
LDO3 - VIN = 3.6V - VDD3 = 3.3V
Static Load Regulation - 0 To 200mA
LDO3 - VDD3 = 3.3V - 200mA output load
Drop Out Characteristic.
(VDD3
REG
= VDD3 with VIN3 > VDD3 + 300mV)
