15.2 DCDC0 and DCDC1
Unless otherwise noted, the reported measurement were performed at room temperature. External components are those
described in
Section 5. “Application Block Diagram” on page 8

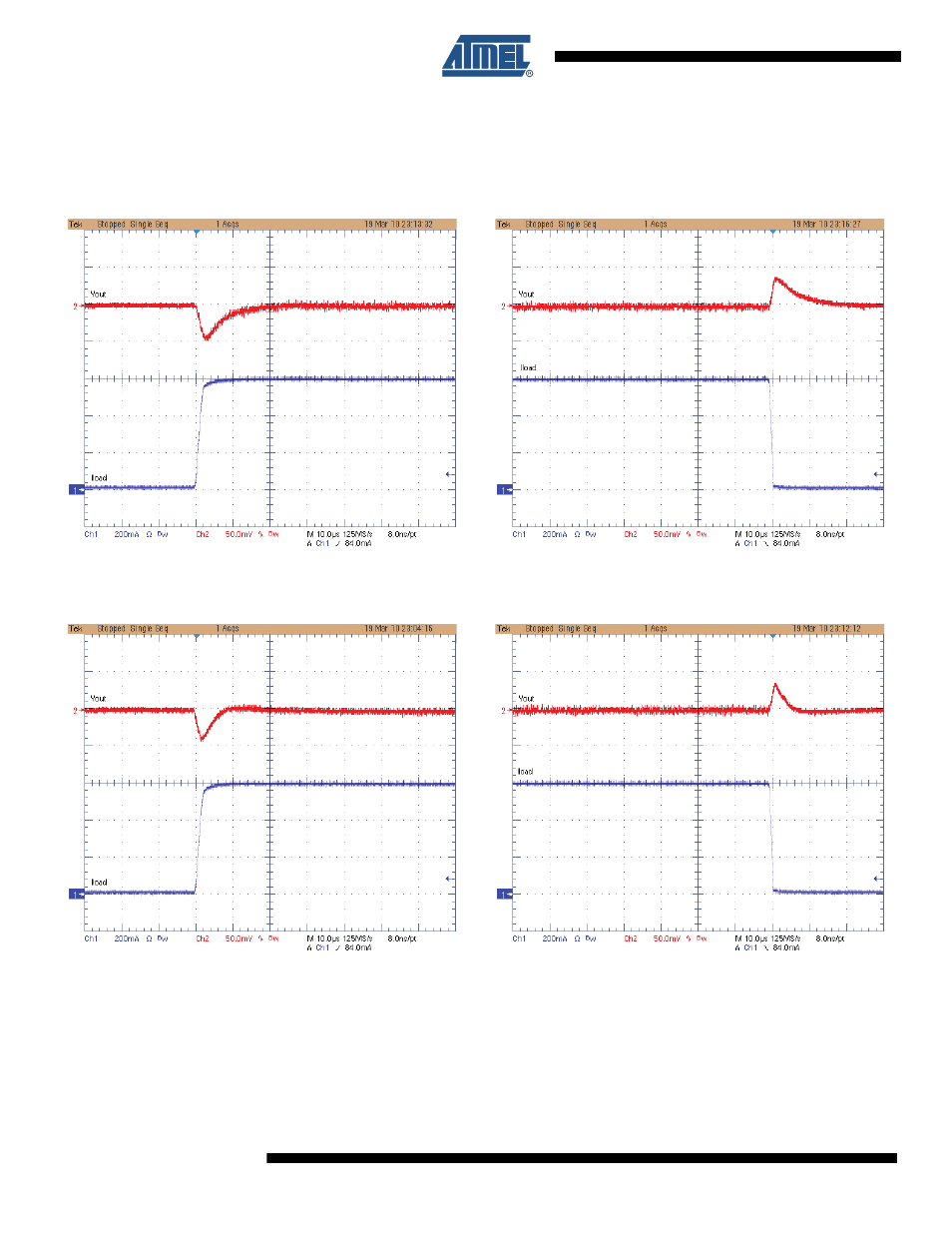

Figure 15-7. DCDC0 Transient Load Regulation Performance
DCDC0 - VIN = 3.3V - VOUT = 1.85V
Load Step 0 To 600mA / 1us
DCDC0 - VIN = 3.3V - VOUT = 1.85V
Load Step 600 To 0mA / 1us
DCDC0 - VIN = 5.5V - VOUT = 1.85V
Load Step 0 To 600mA / 1us
DCDC0 - VIN = 5.5V - VOUT = 1.85V
Load Step 600 To 0mA / 1us
