15.3 LDO2
Unless otherwise noted, the reported measurement were performed at room temperature. External components are those
described in
Section 5. “Application Block Diagram” on page 8

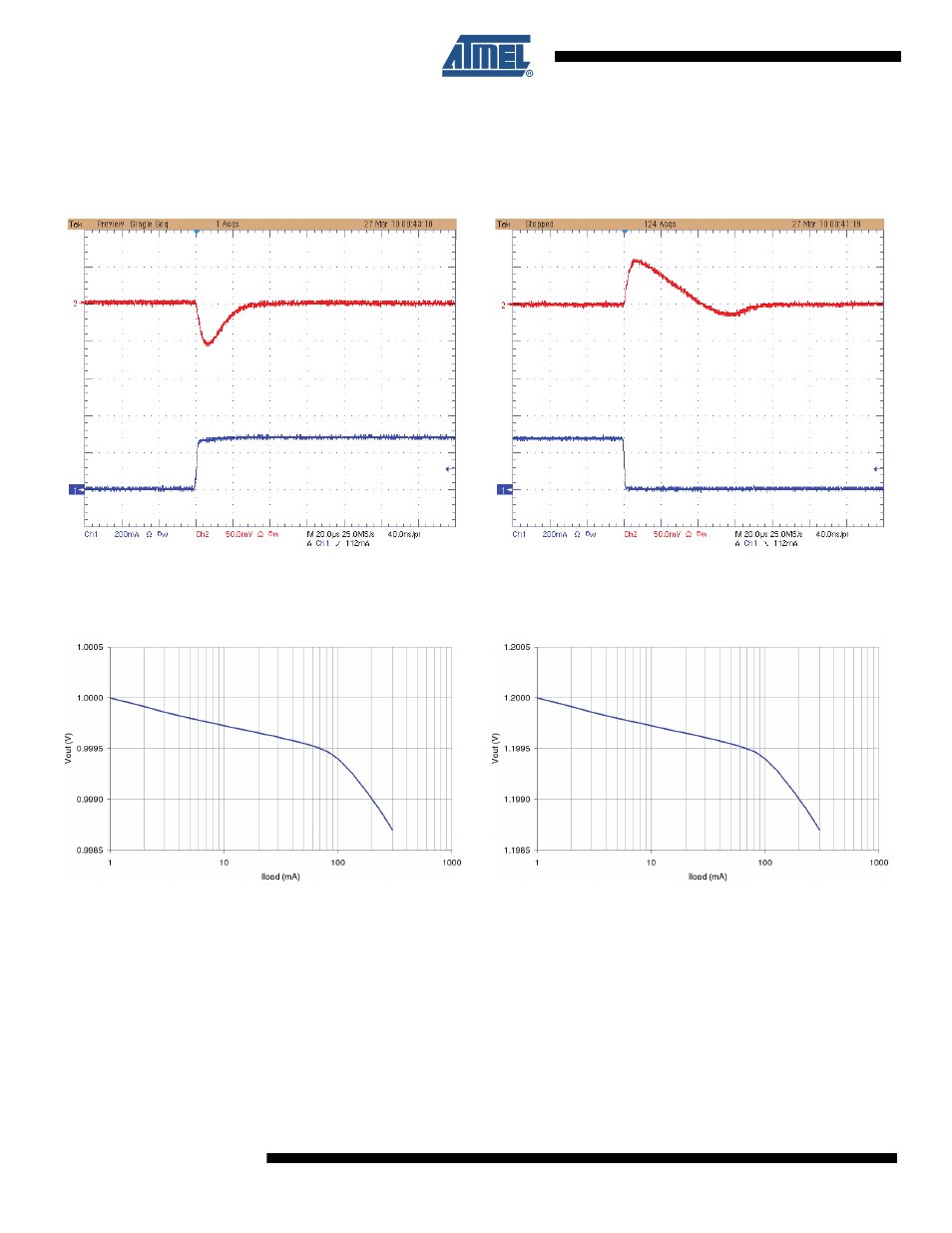

Figure 15-11. LDO2 Tansient and Static Load Regulation Performance
LDO2- VIN = 1.8V - VOUT = 1V
Load Step 0 To 300mA / 1us
LDO2 - VIN = 1.8V - VOUT = 1V
Load Step 300 To 0mA / 1us
LDO2 - VIN = 1.8V - VOUT = 1V
Static Load Regulation - 0 To 300mA
LDO2 - VIN = 1.7V - VOUT = 1.2V
Static Load Regulation - 0 To 300mA
