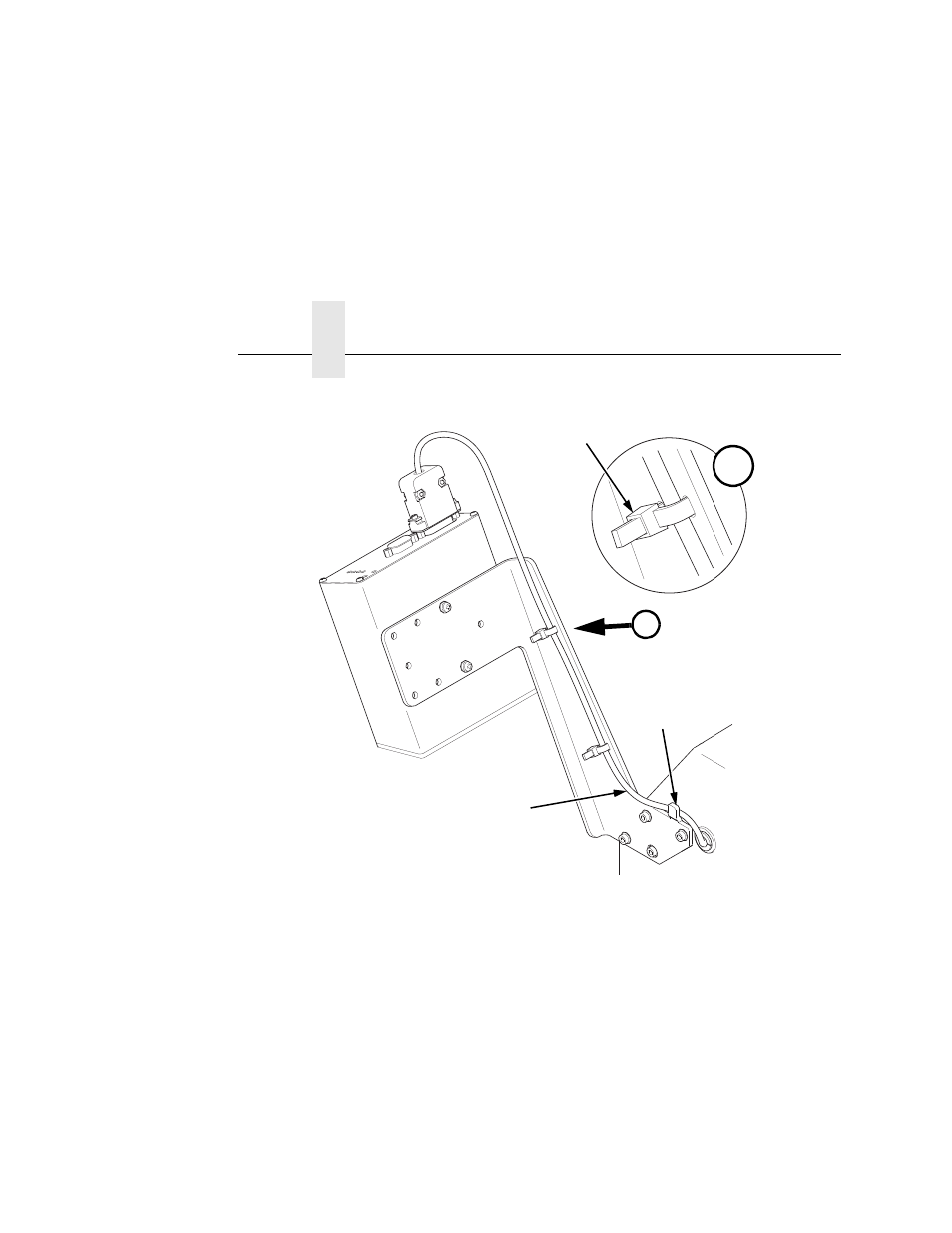

Figure 16. Securing the Power/Data Cable
4. Route the tie wrap back through the second upper slot and
underneath the power/data cable and then through the tie wrap
head, as shown in Detail A of Figure 16.
5. Pull the tie wrap just enough to hold the cable in place, but do
not over tighten it.
6. Repeat step 3 through step 5 using the lower pair of slots.
7. Route the power/data cable behind the bracket tab as shown in
Figure 16.
NOTE: If necessary, loosen the bracket mounting screws enough
to slip the power/data cable behind the bracket tab, then
retighten the bracket mounting screws.
183343a
A
A
Tie Wrap Head
Bracket Tab
Power/Data Cable
