Printronix Online Data Validator User Manual
Page 20
Chapter 1
Installation and Removal
20

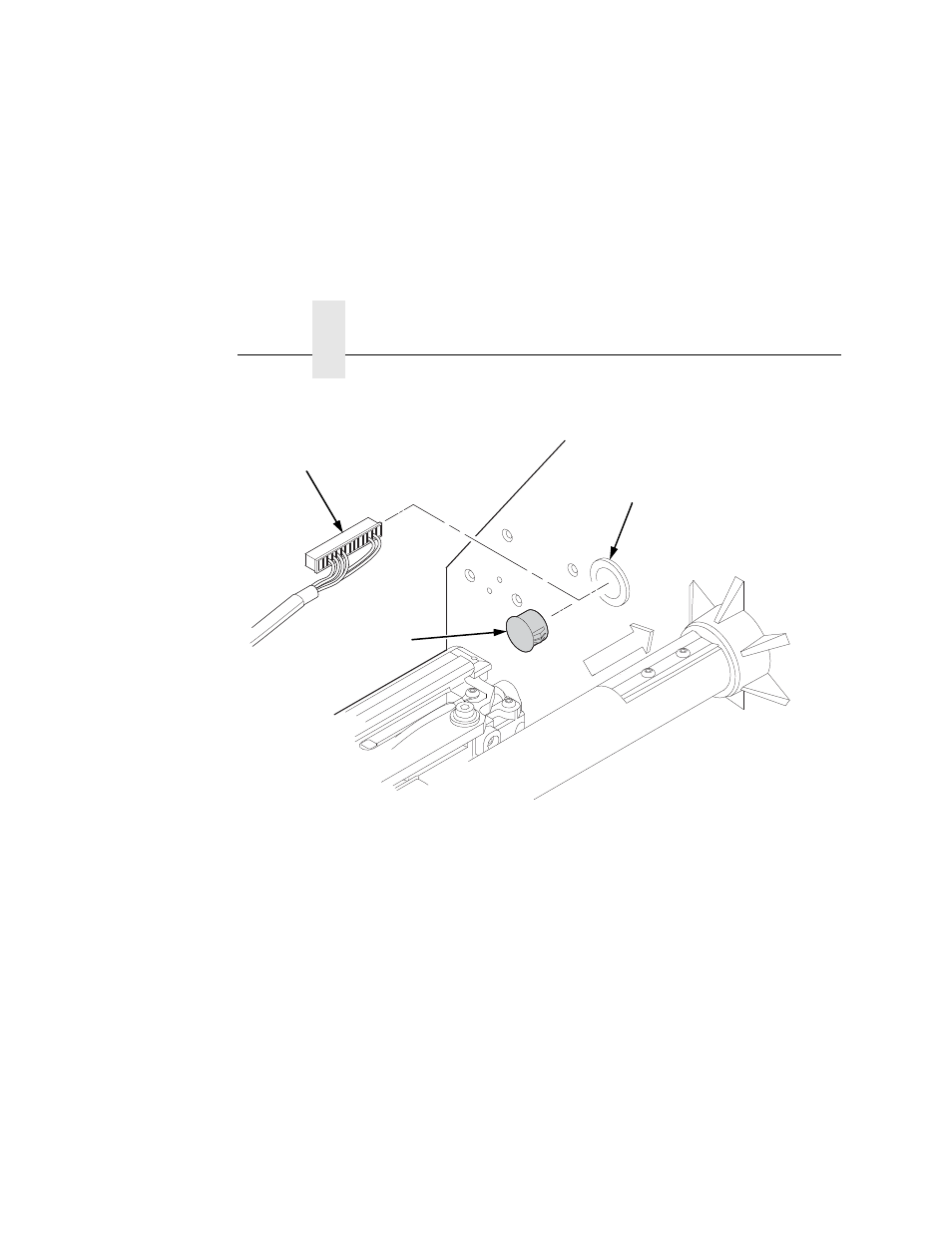

Figure 4. Routing the Power/Data Cable
CAUTION
To prevent electrostatic damage to electronic components,
always wear a properly grounded static wrist strap when you
handle circuit boards.
5.
Put on a static wrist strap and ground it to an unpainted part of
the printer frame. Touch the frame with the hand wearing the
wrist strap.
6.
Raise the media cover and remove the plastic plug from the
frame opening.
7.
Gently press the small wires of the P10 connector end of the
power/data cable against the connector and route the
connector through the frame opening. (Figure 4.)
183456a
P10 Connector
Plastic Plug
Frame Opening
