Install the Ferrite
19

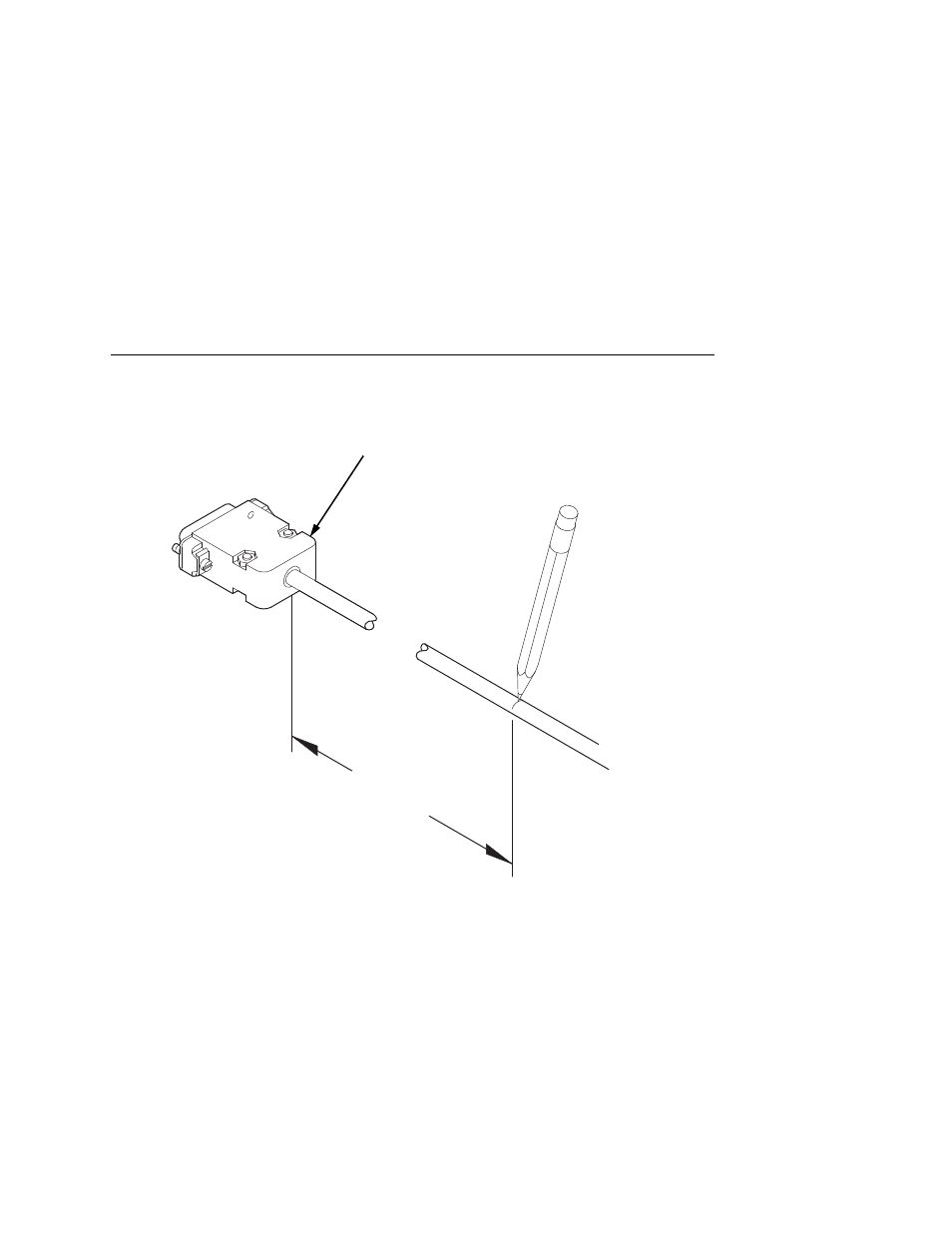

Figure 3. Locating the Ferrite Position on the Power/Data
Cable
3.
Stretch the Power/Data cable out straight on a flat surface.
4.
Measure back 20.0 ± 0.5 inches from the DB15 connector and
mark the cable with a pencil line. (Figure 3.)
183455a
±
20.0 0.5
inches
DB15 Connector
