4. To select an OUT port to associate to the player channel, click the arrow next to the
Router OUT Port field.

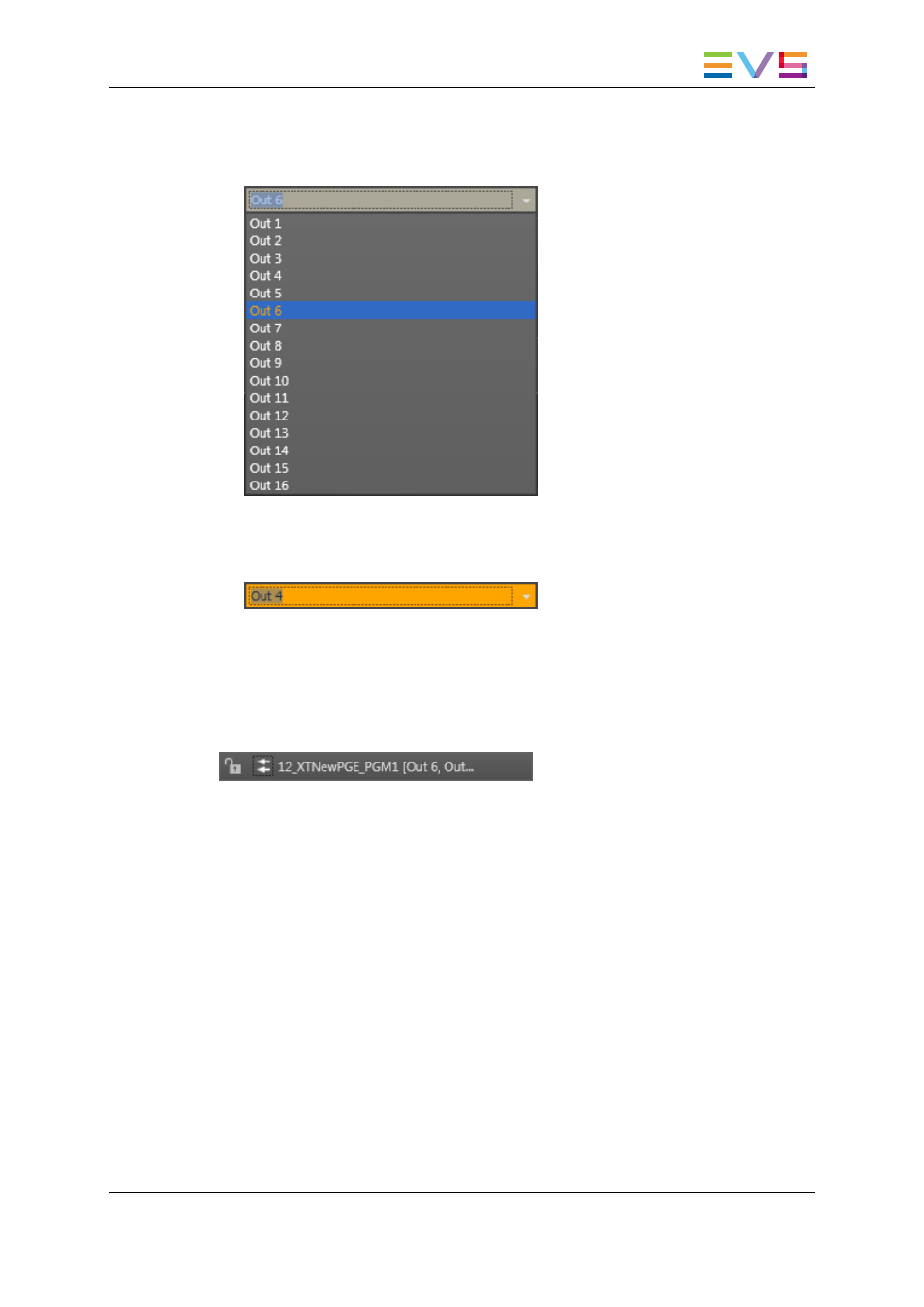

The list of all the router OUT ports is displayed:
5. Select an OUT port.
The Router OUT Port field is highlighted to warn the users that the selection has
changed but has not been saved:
6. Click Add to confirm the selection.
The OUT port name is displayed in the list.
7. Click TAKE to send a command to the router service to link the router IN port
connected to the player channel with the selected router OUT port.
The name of the OUT port is displayed after the player channel name.
