2.9 LAN CONNECTION SETTINGS (PAGE 6)
2.9.1 I
NTRODUCTION

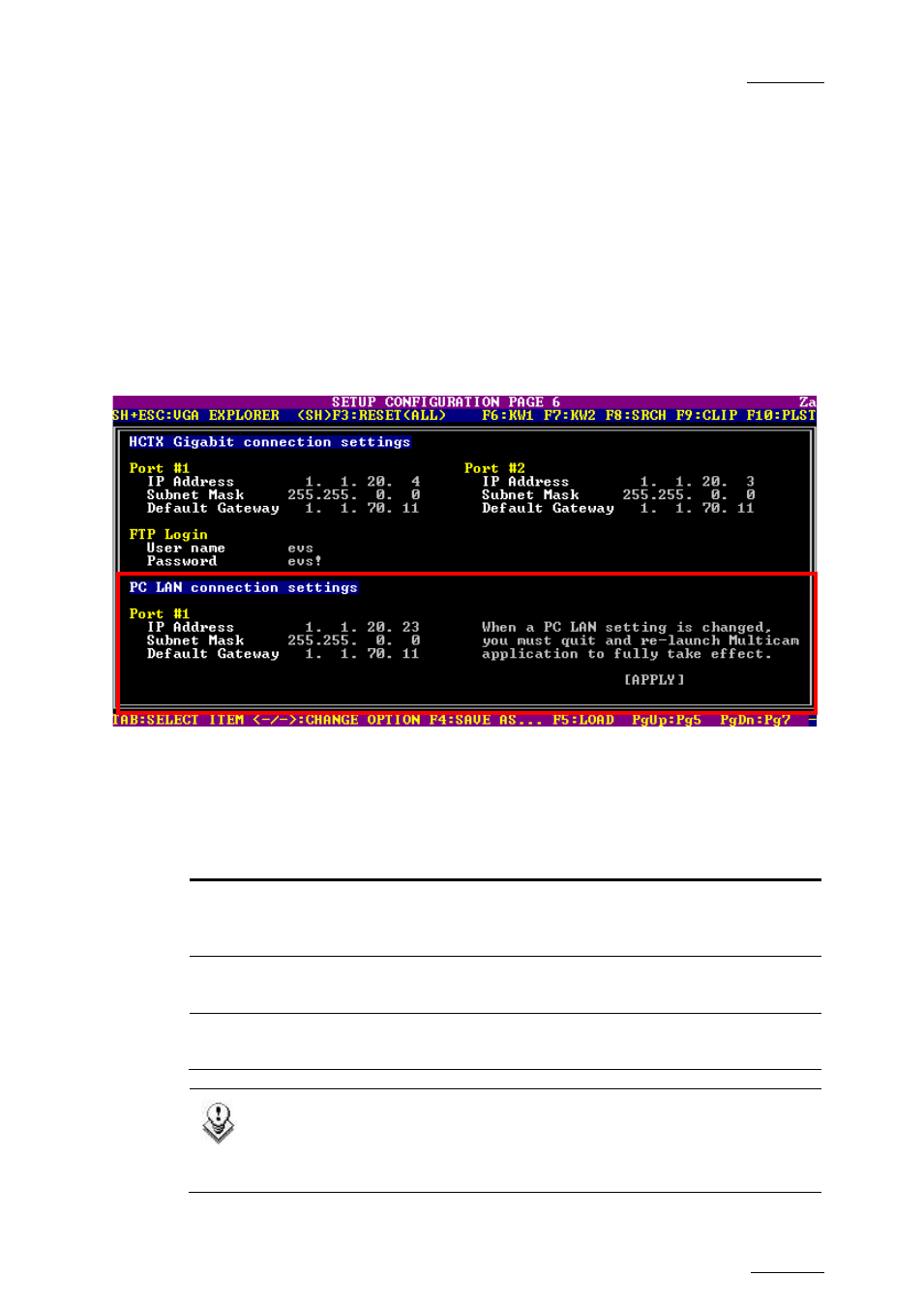

The settings for the connection with the MTPC board are defined in the Setup
Configuration module, on page 6.
This will allow interaction between the LAN and the MTPC board for the purpose of
system maintenance. The MTPC board and another workstation on the XNet
network will communicate through telnet or FTP access.
The XNetMonitor will use the LAN IP connection to transfer the monitoring data.
2.9.2 S
ETTINGS
D
ESCRIPTION
The MTPC board connection settings are described in the table below:
Port #1
IP Address Specifies the IP address to connect to the port 1 of the MTPC board
on the server. The IP addresses 0.0.0.0 and 255.255.255.255 are
not allowed.
Subnet
Mask
Specifies the range of logical addresses within the address space
assigned to the MTPC board connection.
Default
Gateway
Specifies the IP address of the router on the XNet network that the
MTPC board can use as an access point to external networks.
Note
The modifications of parameter values in this screen are not applied when
you leave the field. You need to select the APPLY option at the bottom
right of the screen and press ENTER to apply the modifications.
