2.3 VITC/ANC TIMECODE MANAGEMENT
(PAGE 2)
The second page available in the Setup Configuration menu (SHIFT-F2) on servers
allows the channel-by-channel management of VITC or ANC TC management.
It also allows the users to clean or not the VBI information: the VITC being
recorded in the active video lines, it can be disrupted in play var because of
interpolation or parity violation on some fields. Moreover, if the server inserts
VITC on the output while there is already VITC on another line, it can create
problems.
The server allows the user to totally clean the VBI information from the vertical
blanking at playback or to clean it only when it would not have been preserved.
2.3.1 VITC/ANC M
ANAGEMENT IN
SD IN
AND
OUT

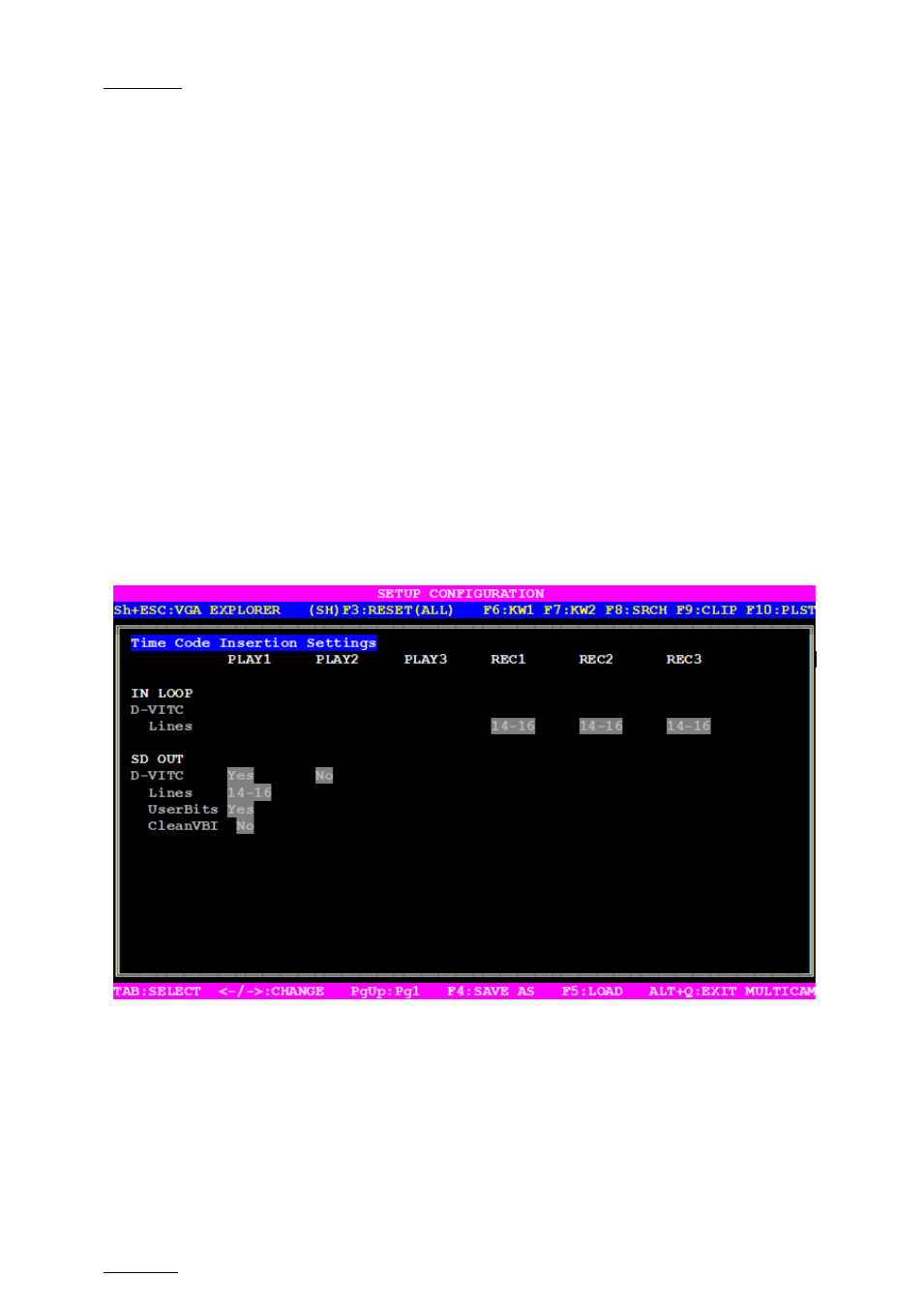

In SD, the page is as follows:
