2.6 GPI SETTINGS (PAGE 4)

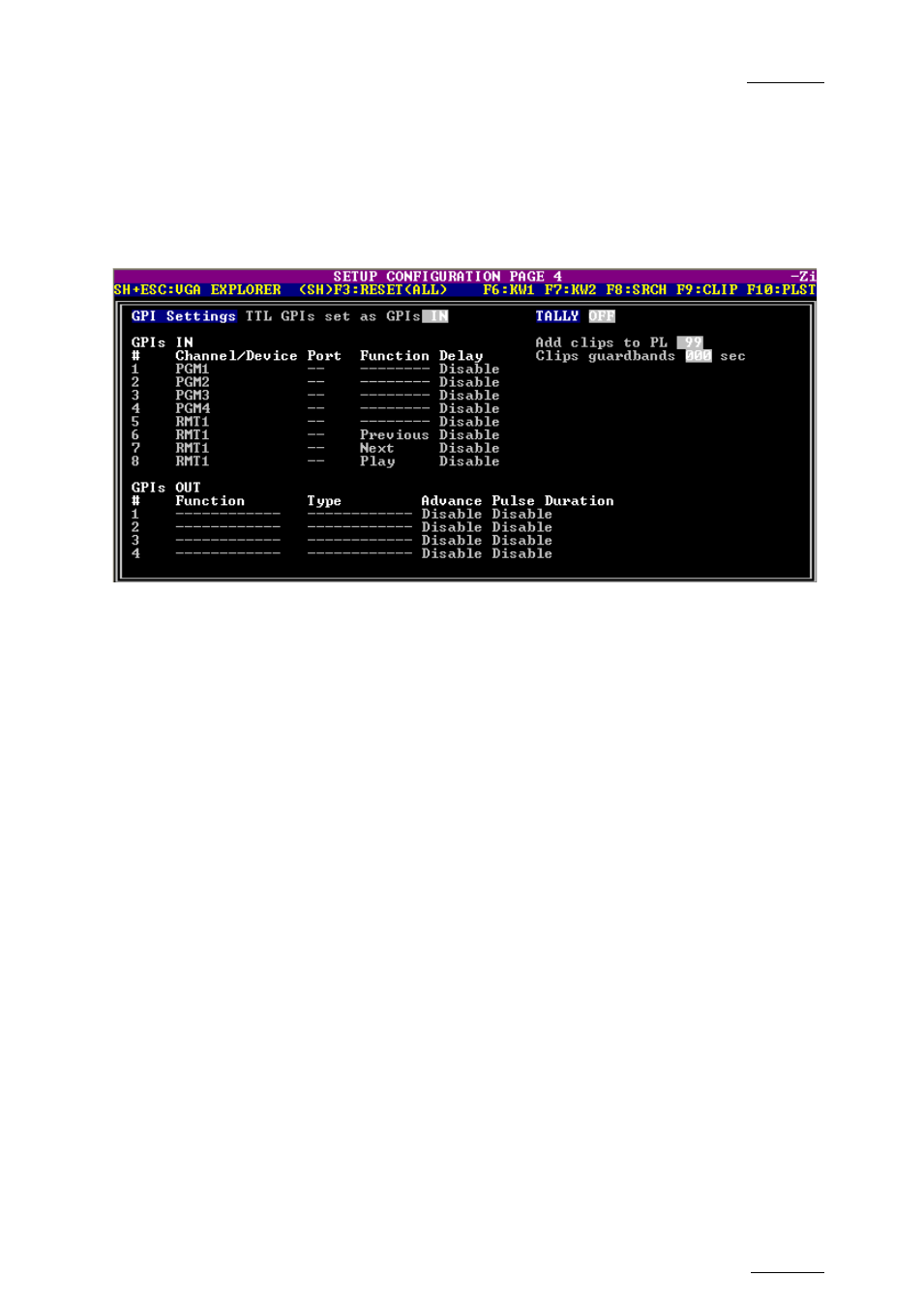

On the fourth page of the Setup Configuration module (SHIFT-F2), it is possible to
define GPI settings:
2.6.1 GPI T
YPES
Three types of GPIs are available to be used on the servers:
• Relay GPIs, which are always GPIs OUT, numbered from 1 to 4.
• OPTO GPIs, which are always GPIs IN, numbered from 1 to 4.
• TTL GPIs, which are switchable from GPIs IN to GPIs OUT or vice versa.
By default, they are GPIs IN. If TTL GPIs are already assigned when you
switch their type, a warning message will be displayed.
