EVS Multicam – Version 10.04 – Configuration Manual
EVS Broadcast Equipment SA – January 2011
Issue 10.4.A
23
Setting Description
Exit ASP Initiates a command to exit the loop as soon
as possible without playing the current
element until its end and jump to the
selected element. This GPI is used with
playlists in IPDirector.
Exit OUT Initiates a command to exit the loop as soon
as the OUT point of the current element is
reached and jump to the selected element.
This GPI is used with playlists in IPDirector.
None No value is defined.
GPI Delay Number of seconds and/or frames that the server will wait
after receiving the GPI IN signal to execute the GPI-related
function. The default value is ‘disabled’.
The following information is defined for each individual GPI OUT:
Setting Description
# GPI number
Function Operation that will trigger the GPI OUT. The GPI OUT can be
defined with the following function:
• Replace function

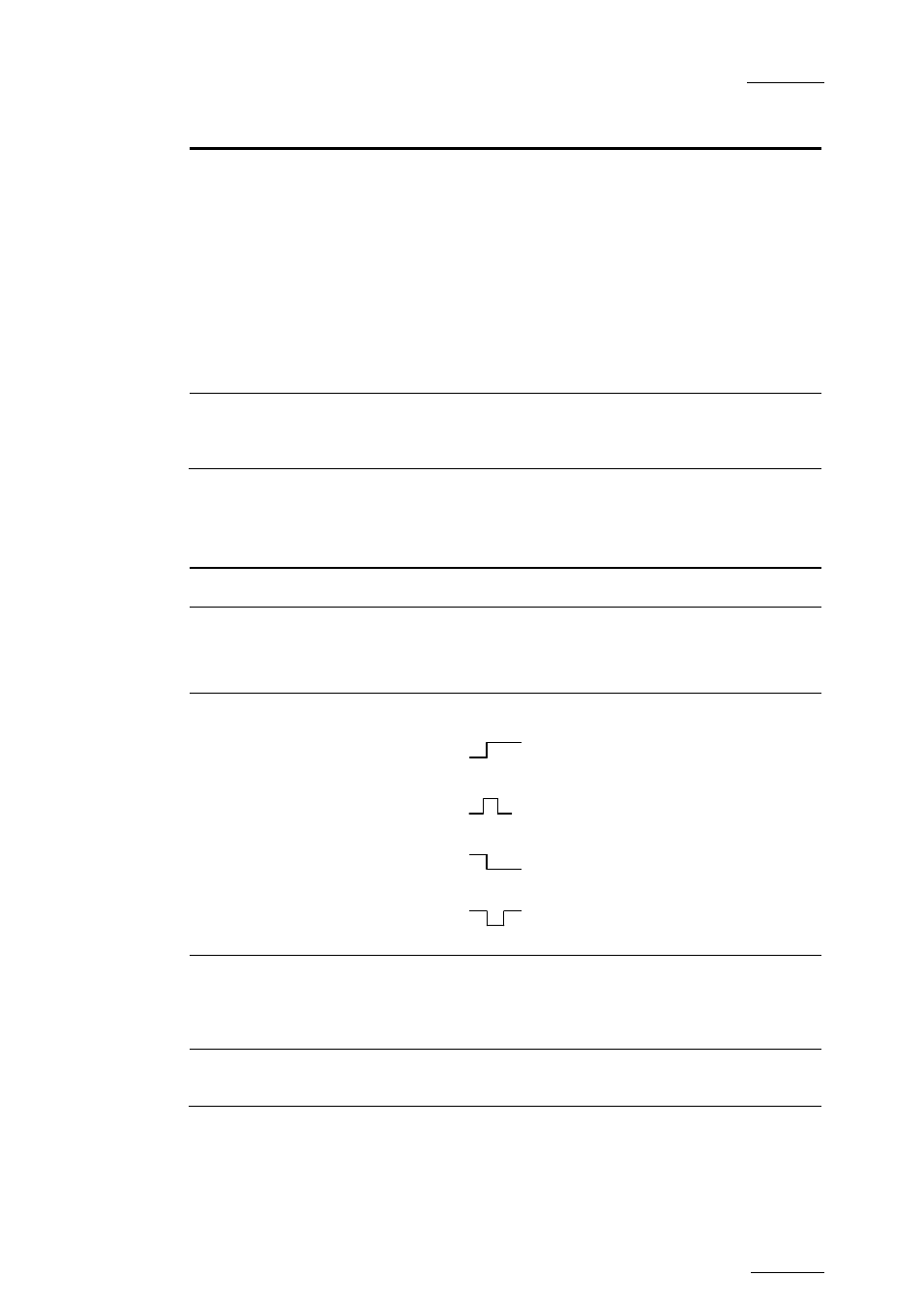

Type Type of GPI signal. Four types are possible:
Close-High The trigger is done when the
level changes to high level
Close-High
Pulse
The trigger is done on a rising
edge pulse
Open-Low The trigger is done when the
level changes to low level
Open-Low
Pulse
The trigger is done on a falling
edge pulse.
GPI OUT
advance
Number of seconds and/or frames ahead of the timecode (on
which a GPI is defined) corresponding to the time when the
GPI OUT will be sent by the server. The default value is
‘disabled’.
GPI Pulse
Duration
The pulse duration needs to be defined for pulse signals.
The default value is ‘disabled’.
