Configuration example one, Configuration example two, 4 configuration example one – ZyXEL Communications Prestige 1600 User Manual
Page 29: 5 configuration example two
Prestige 1600 Universal Access Concentrator
Initial Setup
2-3

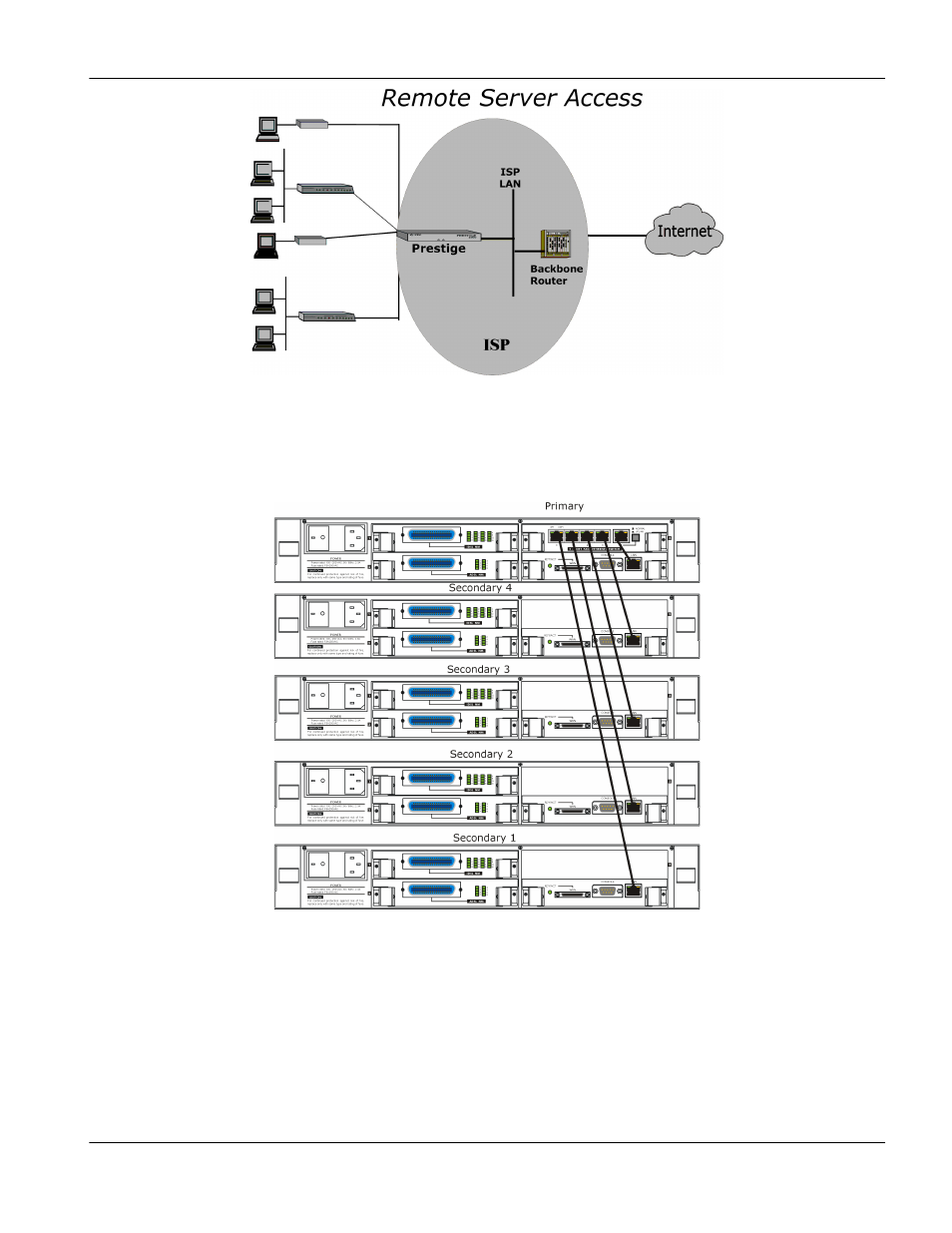

Figure 2-3 Deployed at an ISP
A few examples of possible configurations for these deployments are shown next.
2.2.4 Configuration Example One
Figure 2-4 A Very High Capacity Concentrator
2.2.5 Configuration Example Two
You can also have any number of P1600 standalones chained to an external Ethernet hub as shown next.
