Prestige 128MH PSTN Router/Hub
1-4 Chapter 1 Getting to Know Your Router/Hub
1.2.3 Prestige 128MH Back Panel
Figure 1-2 helps you identify the rear panel ports of your Prestige 128MH. Refer to this diagram
when attempting to make connections.
À :
POWER = 16V-AC power outlet to connect the AC adapter.
Á :
ETHERNET = 4 x RJ-45 socket HUB to connect ETHERNET 10Base-T cables.
 :
CONSOLE = RJ-45 connector to plug the RJ45-RS232 female adapter and connect to the Console or SMT.
à :
PHONE1 = RJ-11 socket to connect a phone or fax to Modem port 1.
Ä :
LINE1 = RJ-11 socket to connect the PSTN telephone line to Modem-1 (on WAN port 2).
Å :
PHONE2 = RJ-11 socket to connect a phone or fax to Modem port 2.
Æ :
LINE2 = LINE1 = RJ-11 socket to connect the PSTN telephone line to Modem-2 (on WAN port 3).
Ç :
WAN = RJ-45 socket to connect the RJ45-RS232 male adapter and plug a modem or ISDN TA to WAN port 1.

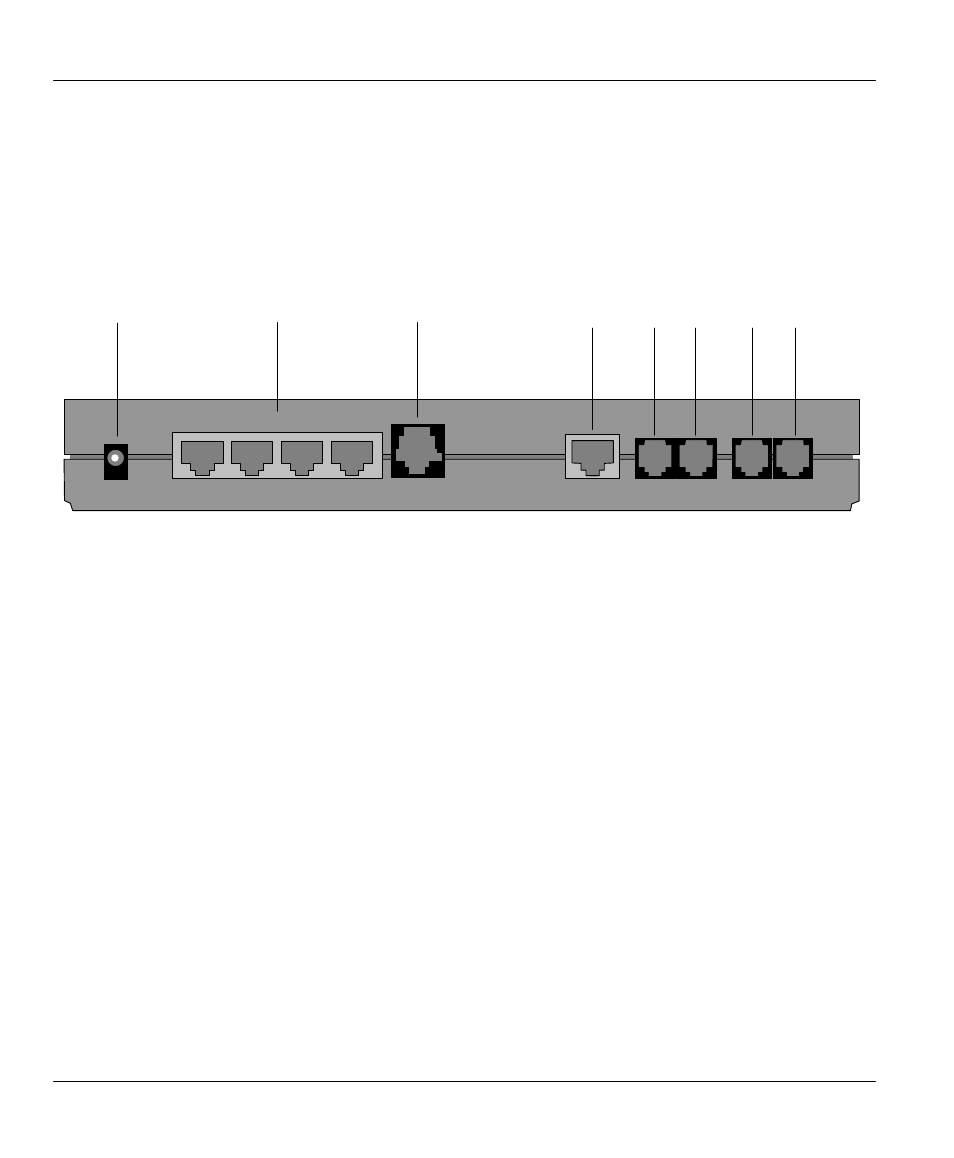

Figure 1-2. Prestige 128MH Back Panel Ports
А Б В
Д Е Г
POWER CONSOLE WAN LINE1 LINE2 PHONE1 PHONE2
Ж З
ETHERNET
4 3 2 1
