Appendix A Product Specifications
V500 Series User’s Guide
239
1
Be careful to avoid damaging pipes or cables located inside the wall when
drilling holes for the screws.
3 Do not insert the screws all the way into the wall. Leave a small gap of about 0.5 cm
between the heads of the screws and the wall.
4 Make sure the screws are snugly fastened to the wall. They need to hold the weight of
the V500 with the connection cables.
5 Align the holes on the back of the V500 with the screws on the wall. Hang the V500 on
the screws.

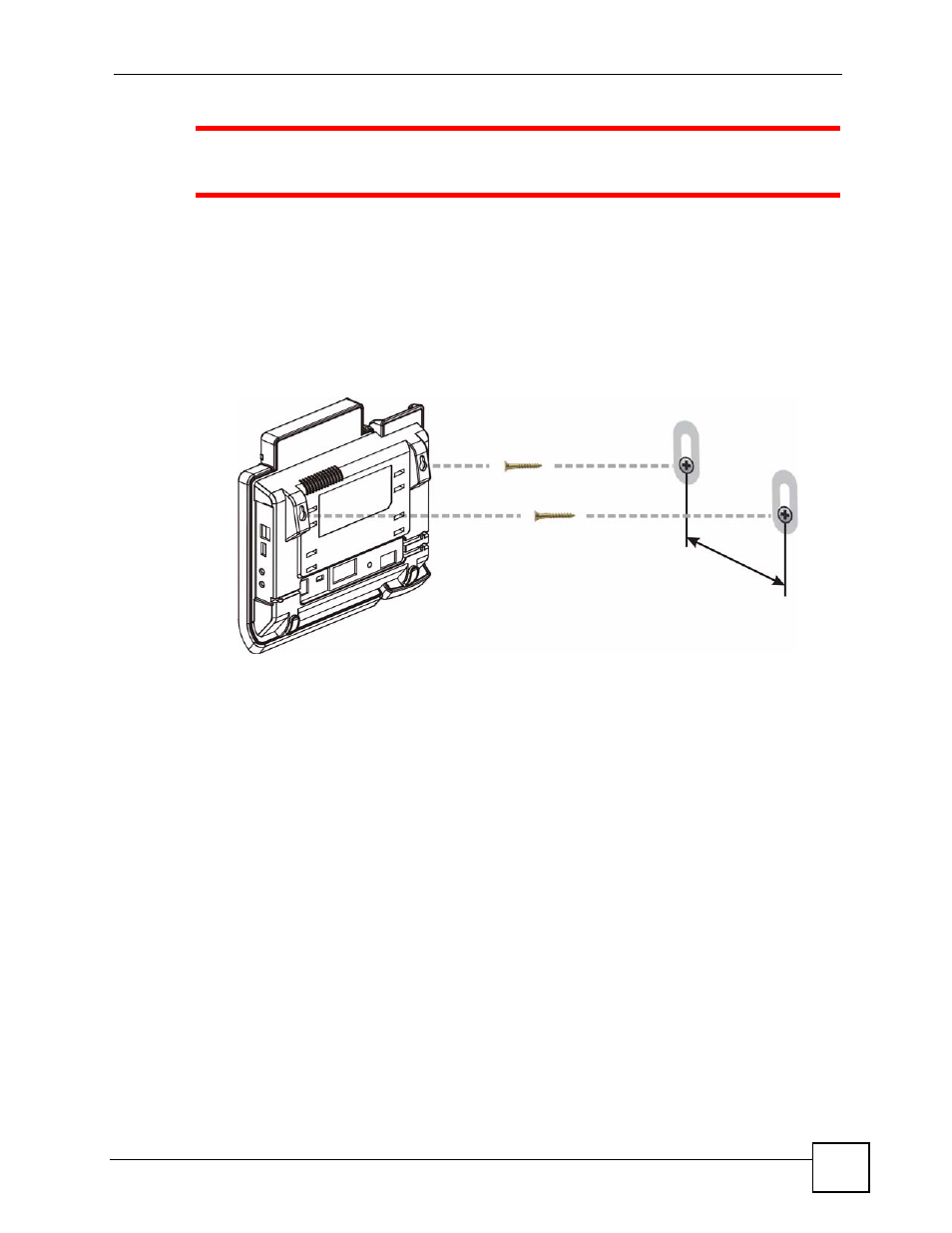

Figure 161 Wall-mounting Example
The following are dimensions of an M4 tap screw and masonry plug used for wall mounting.
All measurements are in millimeters (mm).
