Trane LO - Manual (Page 129)

UNT-IOM-6 129
For reference only:
This schematic show typical wiring of a fan-coil. It is not intended for a basis of design or for equipment
installation purposes in the field. For an as-built schematic specific to a particular unit, please see the
ship-with schematic for that specific unit.

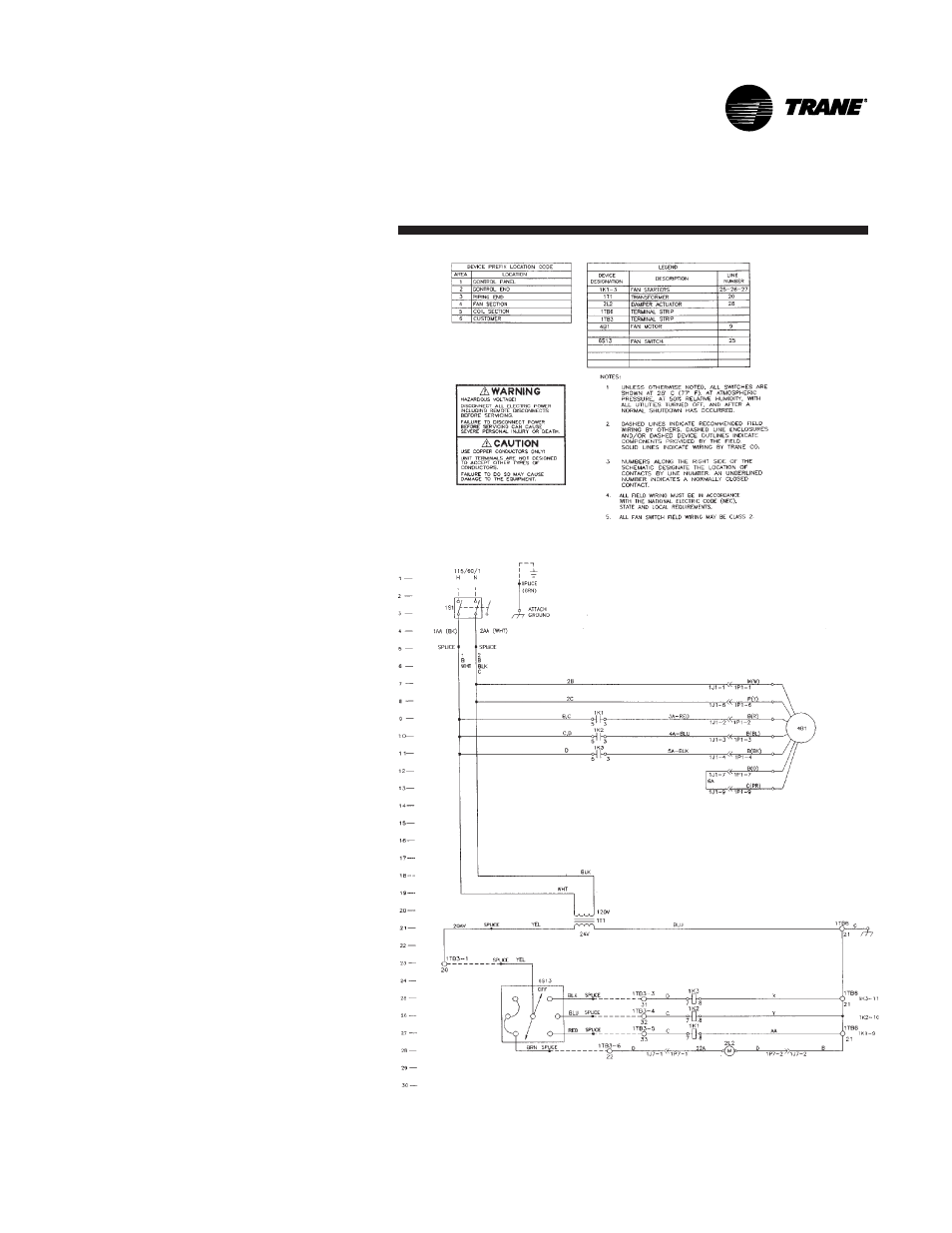

Fan Mode Switch Typical Wiring
Diagram
For Reference Only:
This schematic shows typical wiring
of a fan-coil. It is not intended for a
basis of design or for equipment
installation purposes in the field.
For an as-built schematic specific to
a particular unit, please see the
ship-with schematic for that specific
unit.
Two-pipe unit without control valve
Fan mode switch option “K”
Wall mounted mode switch — off/
high/med/low
Disconnect switch
Automatic two-position fresh air
damper
