Weights
Table W-1 — Unit and Corner Weights — Net Lbs (kg)
Unit
Shipping
Net
Corner Weights
Model No.
Maximum (lbs)
Maximum (lbs)
1
2
3
4
TTA075A
370 (167.8)
326 (147.9)
105 (47.6)
83 (37.6)
61 (27.7)
77 (34.9)
TTA085A, 100A
443 (200.9)
399 (181.0)
149 (67.6)
116 (52.6)
78 (35.4) 100 (45.4)
TTA100B
481 (218.2)
427 (193.7)
133 (60.3)
135 (61.2)
87 (39.5)
85 (38.6)
TTA100C
492 (223.2)
437 (198.2)
139 (63.1)
122 (55.3)
87 (39.5)
95 (43.1)
TTA125B
481 (218.2)
427 (193.7)
133 (60.3)
135 (61.2)
87 (39.5)
85 (38.6)
TTA155B
764 (346.6)
679 (308.0)
196 (88.9)
193 (87.5) 144 (65.3) 146 (66.2)
TTA155C
764 (346.6)
679 (308.0)
196 (88.9)
193 (87.5) 144 (65.3) 146 (66.2)
TTA200B
948 (430.0)
863 (391.5)
247 (112.0) 244 (110.7) 185 (83.9) 187 (84.8)
TTA200F
920 (418)
835 (379)
292 (133)
181 (83)
222 (101)
140 (64)
Table W-2 — Accessory Weights — Net Lbs (kg)
Unit
RIS
Steel Spring
Anti-Short
Coil
Low
Model No.
Isolators
Isolators
Cycle Timer
Guard
Thermostats
Ambient
TTA075A
2 (.9)
12 (5.4)
1 (.5)
8 (3.6)
1 (.5)
23 (10.4)
TTA100A
TTA100B
2 (.9)
12 (5.4)
1 (.5)
11 (5.0)
1 (.5)
23 (10.4)
TTA100C
TTA125B
2 (.9)
12 (5.4)
1 (.5)
20 (9.1)
1 (.5)
23 (10.4)
TTA155B
2 (.9)
12 (5.4)
1 (.5)
22 (10.0)
1 (.5)
23 (10.4)
TTA155C
TTA200B
2 (.9)
12 (5.4)
1 (.5)
34 (15.4)
1 (.5)
23 (10.4)
TTA200F
2 (.9)
12 (5.4)
1 (.5)
45 (20.4)
1 (.5)
42 (19.1)

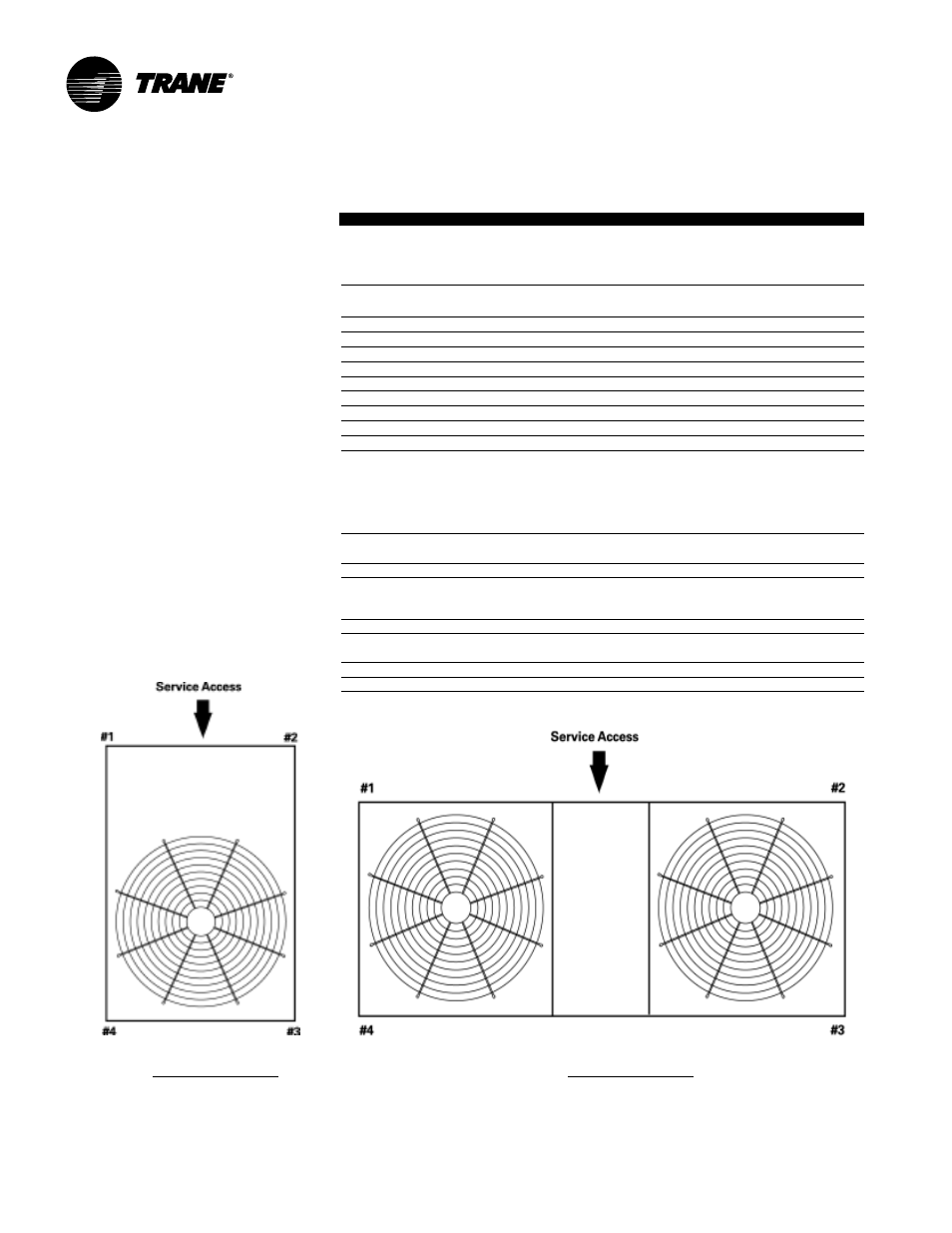

TTA075, 100, 125
TTA155, 200
