Dimensional
Data

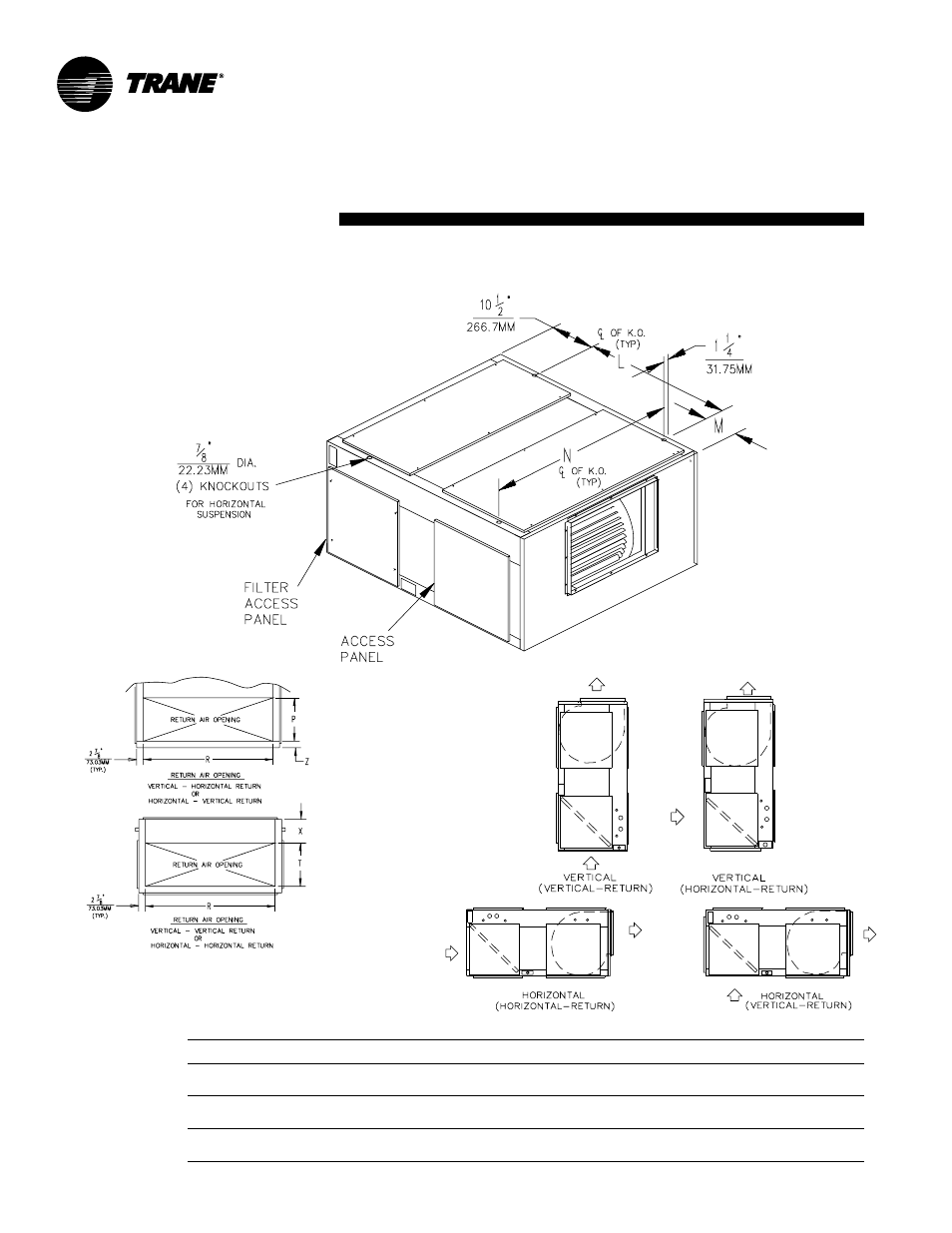

Figure DD-11 — TWE050A, 075A 100A; TWE100B Air Handlers
All dimensions are in inches and
millimeters
.
Table DD-3 — Air Handler Dimensions — in. (mm)
Model No.
L
M
N
P
R
T
X
Z
TWE050A
34-5/8
2-7/8
35-5/8
12-1/4
32-1/4
12-1/2
7-5/8
2
(879.48)
(73.03)
(904.88)
(311.15)
(819.15)
(317.50)
(193.68)
(50.80)
TWE075A
36-7/8
6-5/8
45-1/8
16-1/8
41-3/4
16-1/4
6-7/8
1-3/4
(936.63)
(168.28)
(1146.18)
(409.58)
(1060.45)
(412.75)
(174.63)
(44.45)
TWE100A, 100B
36-7/8
6-5/8
61-1/8
16-1/8
57-3/4
16-1/4
6-7/8
1-3/4
(936.63)
(168.28)
(1552.58)
(409.58)
(1466.85)
(412.75)
(174.63)
(44.45)
