Step 2: install the hard disk drive (hdd) – Oki C 9400 User Manual
Page 395

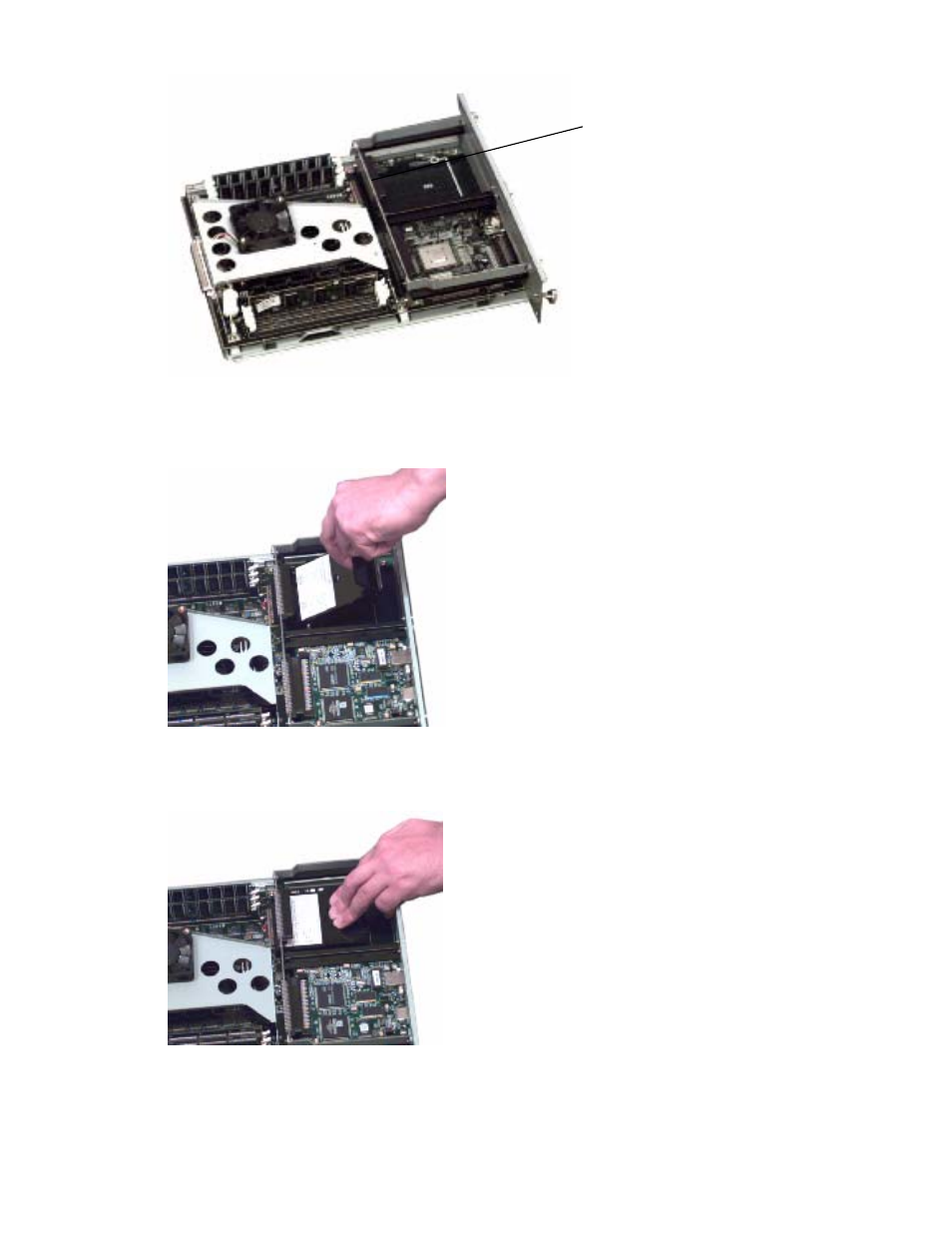

Hard Disk Drive Connector
2. Remove the HDD from its shipping package.
3. Lift the handle on the HDD and lower it onto the control board.
4. Insert the board firmly into the connector and press down on the handle to lock it in
place.
Step 3: Complete the Installation
1. Align the bottom of the control board with the track in the printer and slide it back into
394
