Macintosh postscript driver, Print servers, Model 6200e, oki p/n 70036701 – Oki C 9400 User Manual

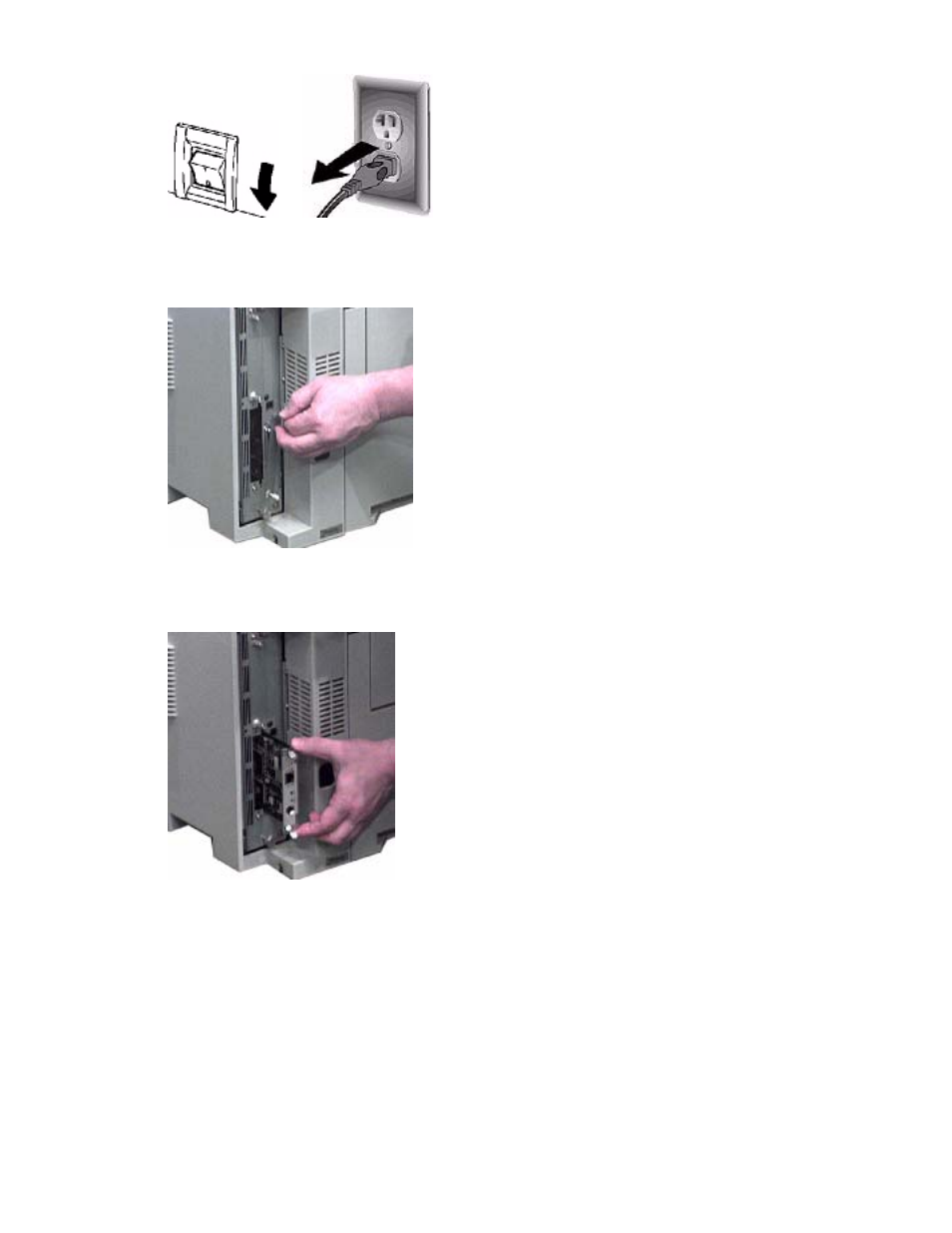

Page 390: Installing the okilan® 6200e print server, Installing the okilan, 6200e print server

3. Remove any connector cables.

4. Loosen the two screws from the bottom option slot, then remove the slot cover.

5. Insert the OkiLAN 6200e into the slot, pushing it in firmly until you feel it plug into the

connector.

6. Tighten the two screws to secure it in place, then plug the RJ45 connector into the

Ethernet port on the print server.

389
