3... I NTERFACE M ODULES
U SING THE OMP-MODL 3-21
CAUTION: The switch banks may have different numbering than the circuit
board... insure that the marking on the circuit board is followed... not the
marking on the switch banks.
NOTE: The MLAD-1 module does not have Module Address Switches as
the MLAD-1 is always in Module Address Layer Position 1.
ml051
Module 3
Module 2
Module 4
Module 5
Module 6
OFF - ON OFF - ON OFF - ON
Module Address (Layer) Switch banks

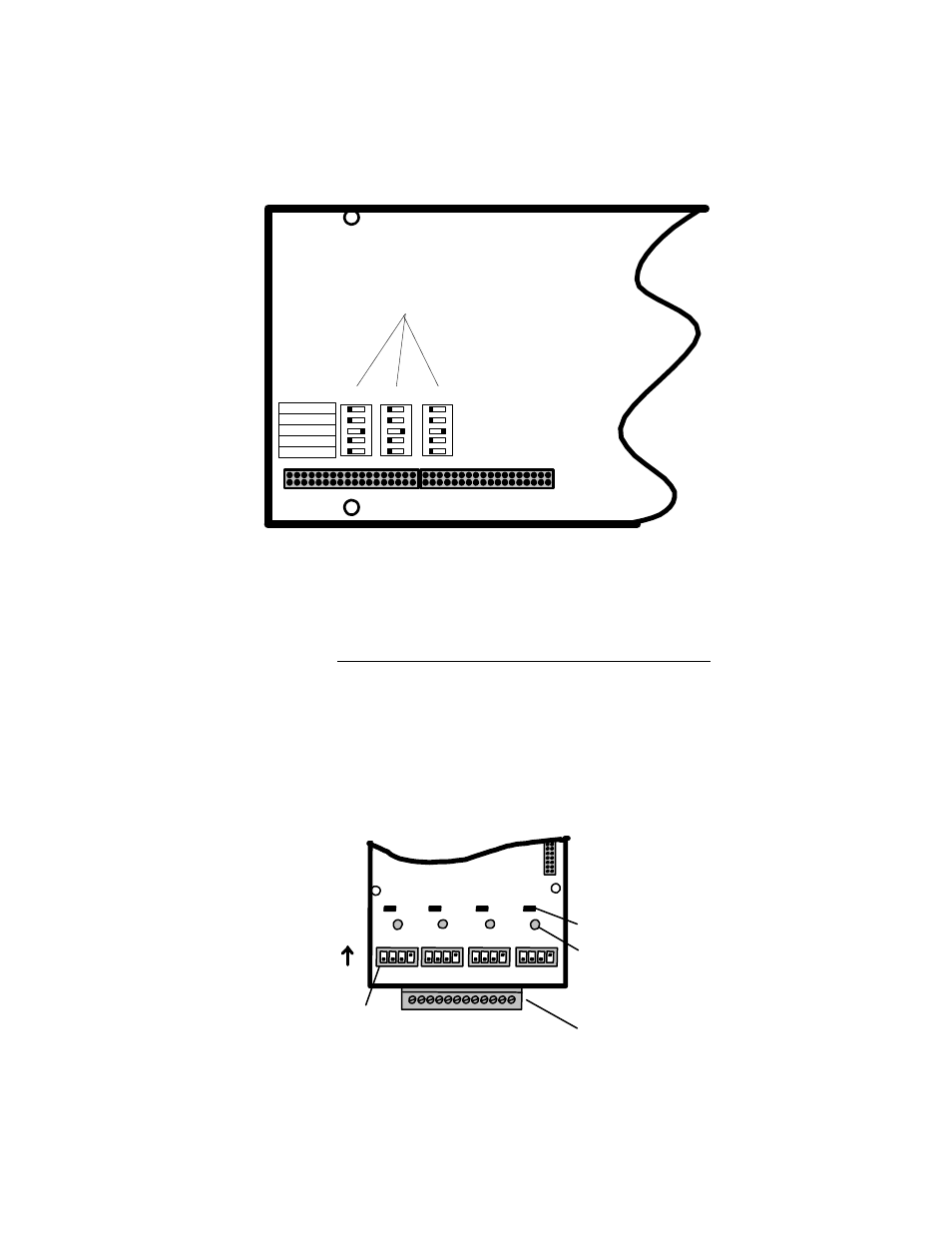

Figure 3... -10: Example Address setting for Module Layer Position 4
Configuration Switches
(one per channel)
I/O Wiring Terminal
Strip
ml013
Chan A Chan B Chan C Chan D
ON
OFF
Fuse (one per
channel)
Ground Ref
jumpers
Figure 3... -11: Channel configuration switches within the MLIM-1
Module
