9... H YPER P LOT ™ G RAPHIC D ATA D ISPLAY
U SING THE OMP-MODL 9-6
C HANNEL N AME
The individual data channel names from the OMP-MODL
Download file are listed. The names are assigned when
developing a HyperNet and/or Post-Processing Net.
D ISPLAY C HANNEL
Checking a data channel’s checkbox results in that channel being
plotted.
D ISPLAY G RID
A row of radio buttons specifies to which channel’s Y-axis the
horizontal grid should be connected.
D ISPLAY Y-A XIS
Checking a data channel’s Y-Axis checkbox results in that
channels Y-Axis being displayed. In many plots, it may only be
necessary to display a single Y-axis if the scaling is the same for
all channels. For example if four channels of temperature data
are being plotted and they all are scaled from 0 to 100F, only a
single Y-Axis is required, allowing more area for data display.
D ISPLAY S YMBOLS
Check boxes are provided for the enabling of symbols for each
displayed channel.
S CALING A UTO / M ANUAL
When a OMP-MODL Download file is first plotted, all channels
are autoscaled to fit on the screen. This auto-scaling feature can
be disabled by the User and a manual range specified by clicking
the Manual checkbox and entering a High and Low limit in the
Manual Ranges text boxes. (As a short-cut, editing of the

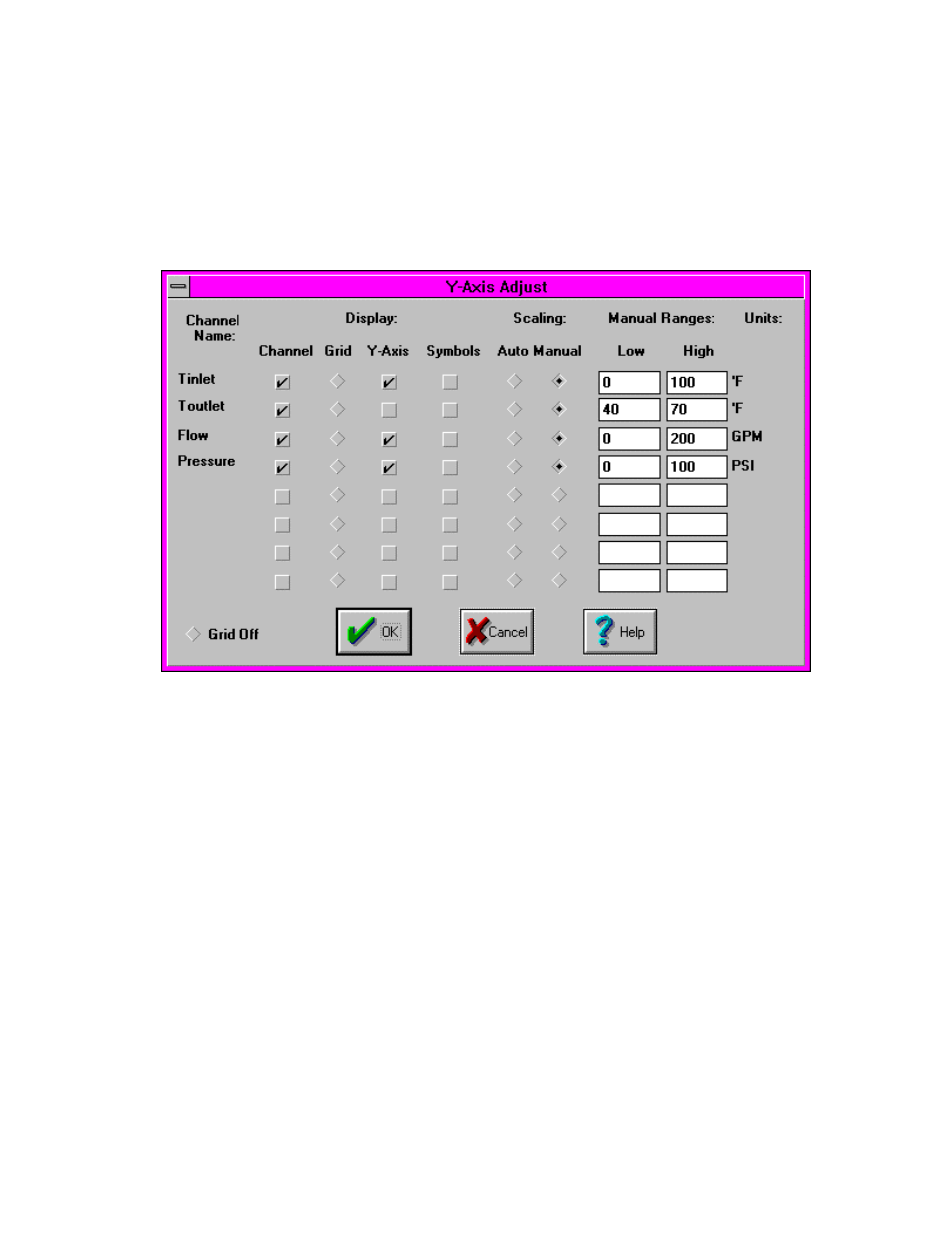

Figure 9... -5: Y-Axis configuration dialog
