11.. . A PPENDIX A: M ASTER I CON R EFERENCE
U SING THE OMP-MODL 11-17
R
ESISTANCE
I
NPUT
I
CON
(MLIM-4)
FUNCTION:
RTD, resistance, and thermistor signal inputs can all be handled with the MLIM-4. With
the MLIM-4 installed in a OMP-MODL, these respective function icons become available
for use in Program Nets.
As a Resistance input, the icon samples the resistance of the connected input and
passes it along to the next icon. 2, 3, and 4-wire configurations are all supported.
This channel/icon can be changed to a thermistor or RTD input channel by selecting the
Change button.
INPUTS:
Hardware: No signal input shown on icon for Program Net connections.
Update: The input is sampled every time an Update command is received on the
Update input and the Enable terminal is True.
Enable: Processing of the icon is allowed when Enable pin is unconnected or
connected and the Enable signal is TRUE.
OUTPUTS:
Output Signal: Data type signal. The Units of the output are ohms.

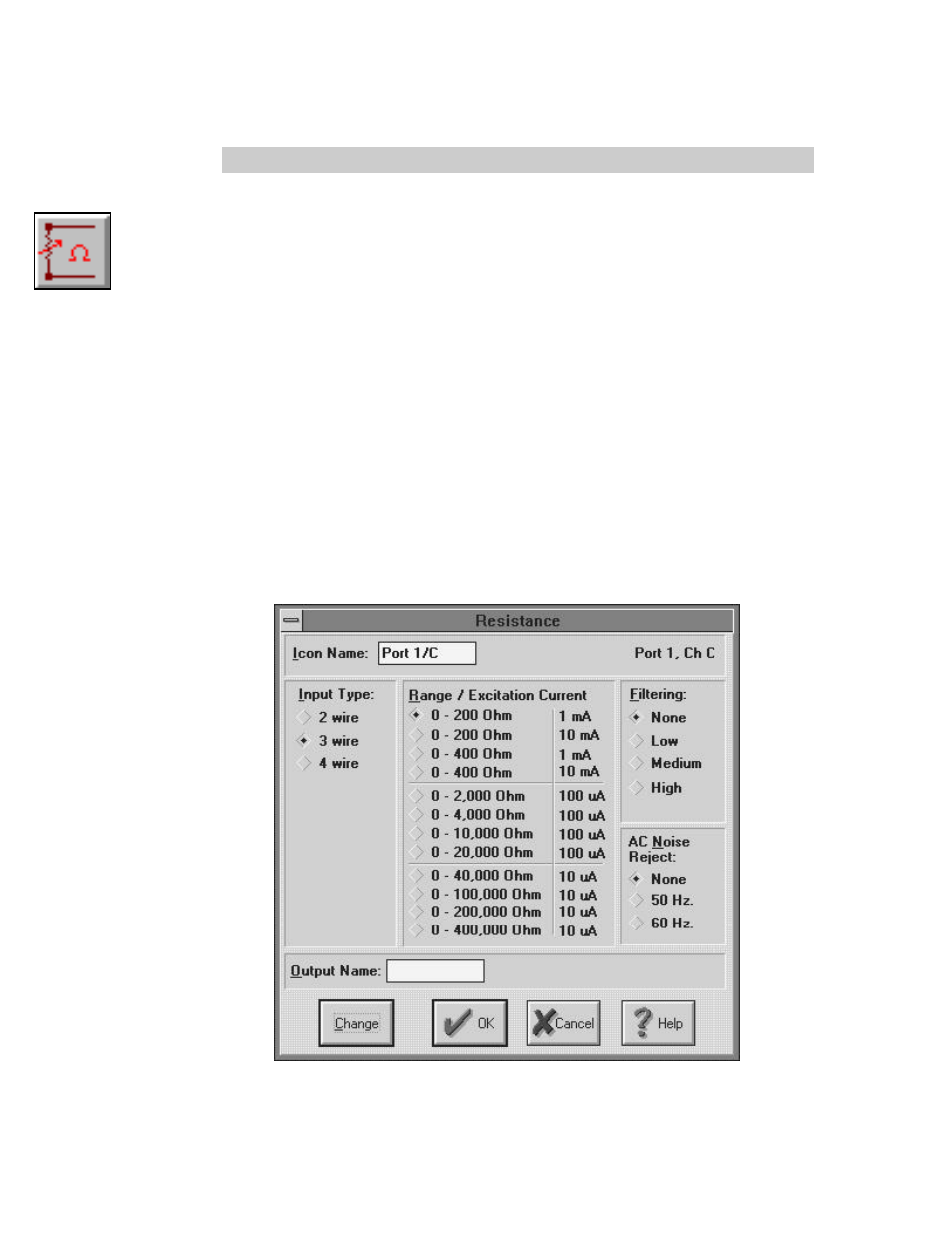

ICON CONFIGURATION DIALOG BOX:
