11.. . A PPENDIX A: M ASTER I CON F ILE R EFERENCE
U SING T HE OMP-MODL 11-74
AND L OGIC F UNCTION I CON
FUNCTION:
The Output turns TRUE ONLY when both of the Inputs are TRUE. If either or both of the
Inputs are FALSE, the Output is FALSE.
INPUTS:
Data/Logic Signal: Two Logic (TRUE/FALSE) type.
Update Clock: None
Enable: None
OUTPUTS:
Output Signal: Logic type.

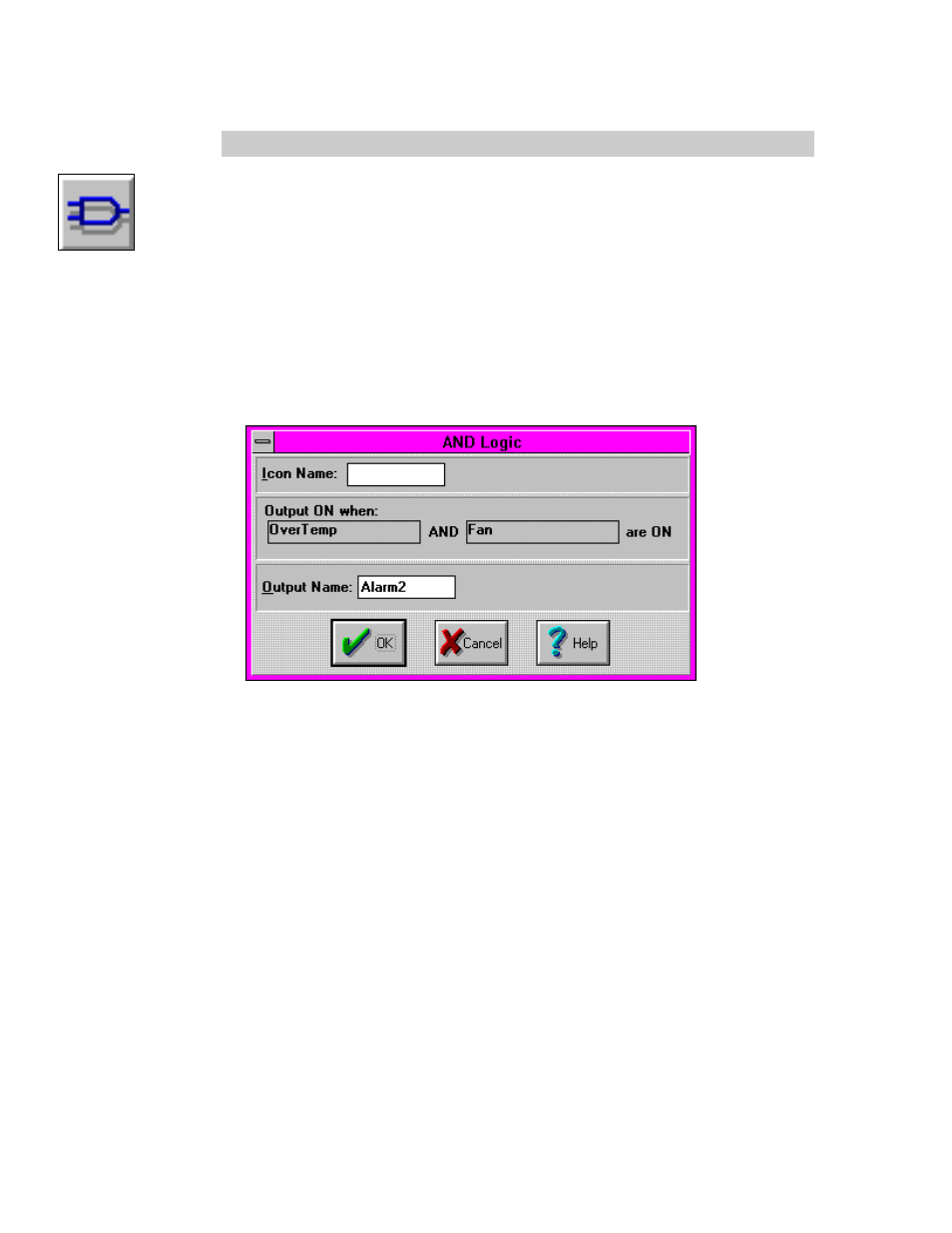

ICON CONFIGURATION DIALOG BOX:
CONFIGURATION OPTIONS:
Icon Name: Specify the label for the icon. This name will show directly under the icon
within the Program Net.
Output TRUEwhen: ___________ AND _________ are TRUE: HyperNet completes
this functional statement using the names of the Outputs from the icons
that are connected to this AND icon’s Inputs.
Output Name: Specify the label for the Output. This name will show directly
under the Output terminal within the Program Net.
