RELAY ALARM O UTPUT I CON
FUNCTION:
Two Relay Alarm outputs are provided as an integral part of the OMP-MODL System
Base. The Relay Alarm icons provide software access to these alarm outputs.
INPUTS:
Input Signal: Logic type. True input turns Alarm ON. False input turns Alarm
OFF. Optionally, use the Latch icon in front of the icon to latch the Alarm
ON with a momentary True input.
Update Clock: None
Enable: None
OUTPUTS:
Output Signal: Hardware output only. No output terminal shown on icon for
Program Net connections.

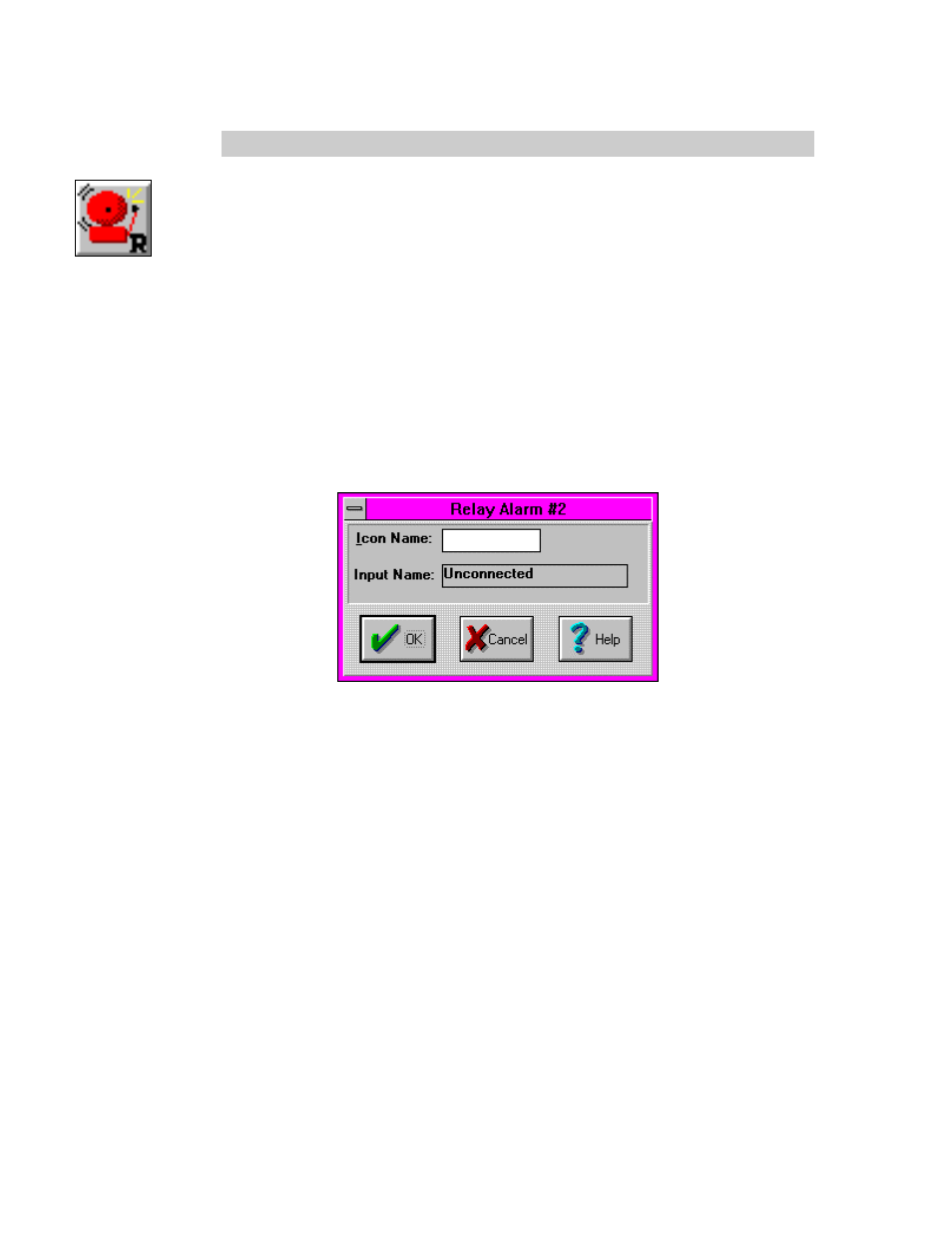

ICON CONFIGURATION DIALOG BOX:
CONFIGURATION OPTIONS:
Icon Name: Specify the label for the icon. This name will show directly under the icon
within the Program Net.
Input Name: In this box, HyperNet displays the Output Name of the icon connected to
this icon’s Input. The Output Name can be changed in the other icon’s
dialog.
