Page 69
69
Other Settings
8.
Press the [Value/Exit Menu] knob twice to return to the
main screen.
The settings you make in the “USER/MIDI” screen are saved in the
* This setting will return to the default value when you turn off the
power, but you can store the setting so that it will be remembered
even after the power is turned off. For details, refer to “Storing Your
Settings (Customize)” (p. 73).
Here’s how you can assign a [USER/MIDI] coupler to play a
separately sold external MIDI sound module from each division.

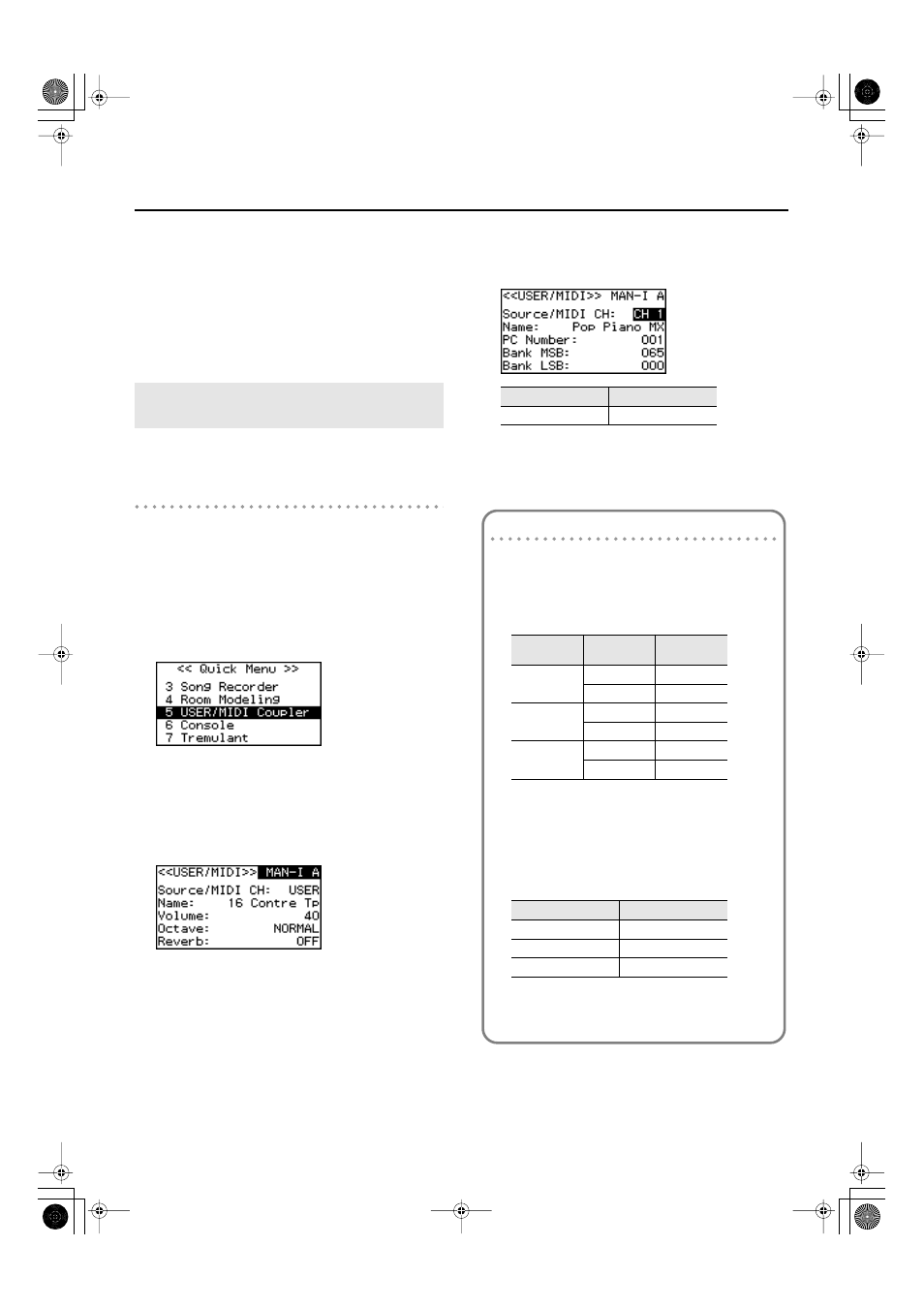

Setting the MIDI transmit channel
You can specify the channel on which the performance data for
MAN I (the lower keyboard) of will be transmitted via MIDI.
* The transmit channels for MAN II (upper keyboard) and the
1.
From the main screen, press the [Select/Menu] knob.
2.
Turn the [Select/Menu] knob to select “5 USER/MIDI
Coupler.”
fig.LCD006.eps
3.
Press the [Select/Menu] knob to access the “USER/MIDI”
screen.
4.
Turn the [Select/Menu] knob to move the cursor to the
top position, and then turn the [Value/Exit Menu] knob
to select “MAN-I A.”
fig.LCD072.eps
5.
Turn the [Select/Menu] knob to select the “Source/MIDI
CH” item, and turn the [Value/Exit Menu] knob to change
the MIDI transmit channel.
fig.LCD073.eps
* When set to “USER” it can be used as a USER coupler (p. 68).
6.
Press the [Value/Exit Menu] knob twice to return to the
main screen.
Playing Sounds on an External MIDI Sound
Module (MIDI Coupler)
Indication
Range
Source/MIDI CH
USER(*), CH1–CH16
About MIDI transmit channels
When the [USER/MIDI] coupler is on
To avoid a conflict between the MIDI transmit channels of the
various [USER/MIDI] couplers, the MIDI transmit channels are
fixed as follows.
When the [USER/MIDI] coupler is off
Even when the [USER/MIDI] coupler is off, the performance
data from each division is transmitted on the following MIDI
channels.
As appropriate, you’ll need to change the MIDI reception
settings on the MIDI device that’s connected.
* When using a [USER/MIDI] coupler to control an external MIDI
sound module, we recommend that you set your external MIDI
device to not receive messages on channels 12–14.
Division
(keyboard)
Tablet name
MIDI transmit
channel
MAN-I (lower)
USER MIDI A
CH1–CH16
USER MIDI B
CH5 (fixed)
MAN-II (upper)
USER MIDI A
CH2 (fixed)
USER MIDI B
CH6 (fixed)
PEDAL
(pedalboard)
USER MIDI A
CH3 (fixed)
USER MIDI B
CH7 (fixed)
Division (keyboard)
MIDI transmit channel
MAN-I (lower)
CH12 (fixed)
MAN-II (upper)
CH13 (fixed)
PEDAL (pedalboard)
CH14 (fixed)
