18

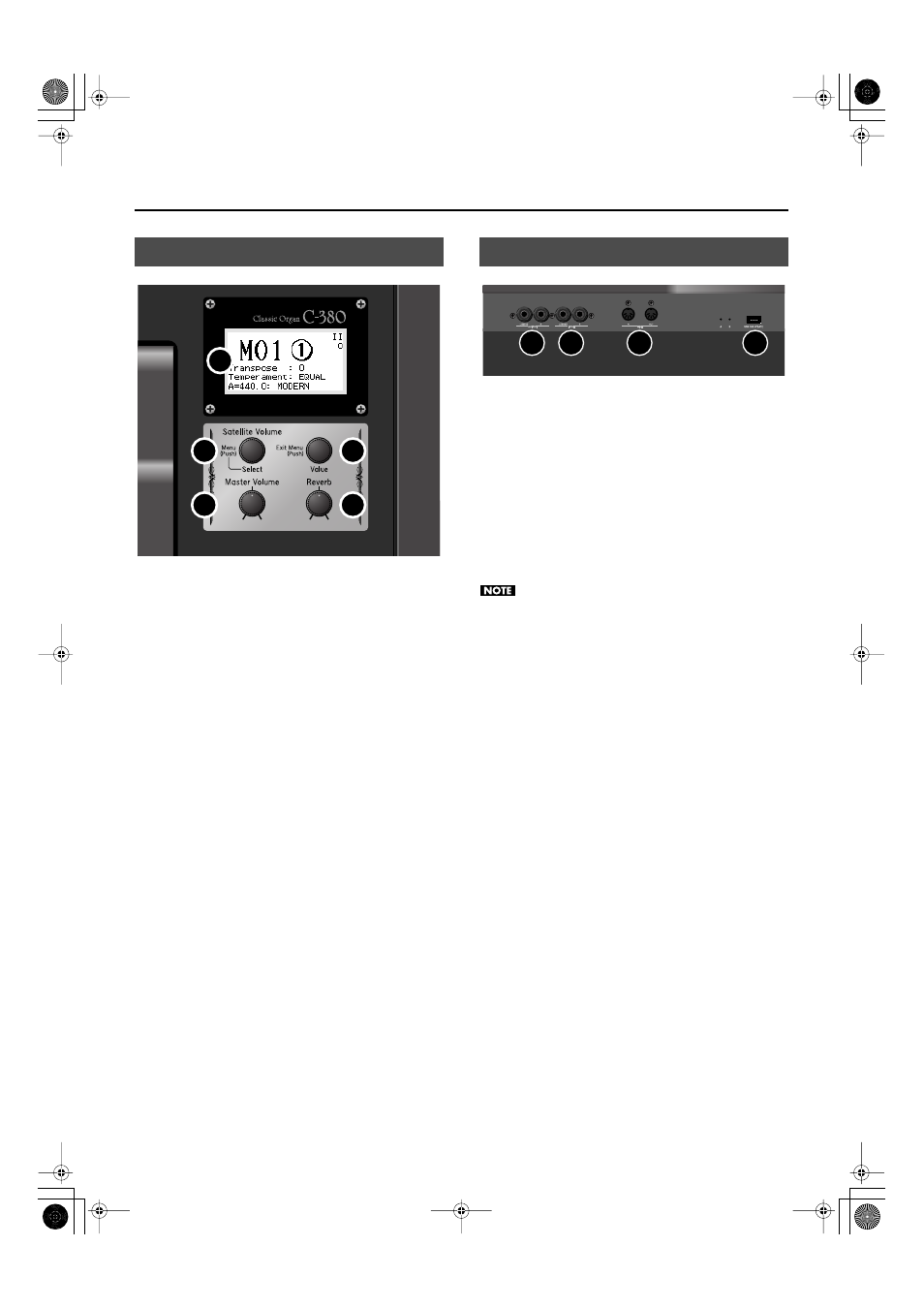

Names of Things and What They Do
1. Display
Various information is shown here.
2. [Select/Menu] Knob/[Satellite Volume] Knob
Turn: Adjusts the volume of the satellite speakers.
When you’re in a menu screen for making detailed
settings, turn this knob to select the item you want to
operate.
Press: Takes you to a menu screen, or finalizes a setting item.
3. [Value/Exit Menu] Knob
Turn: Adjusts a setting.
Press: Returns you to the previous menu, or cancels an
operation.
4. [Master Volume] Knob
This adjusts the volume of the entire organ.
5. [Reverb] Knob
This adjusts the depth of reverberation.
1. OUTPUT L/MONO, R (Output) Jacks
You can connect an external speaker system here so that the sound
of the organ is played from the connected speakers (p. 74).
2. INPUT L/MONO, R (Input) Jacks
You can connect an external sound module or similar device here so
that its sounds are heard from the organ’s speakers (p. 75).
3. MIDI OUT/IN Connectors
You can connect external MIDI devices here to exchange
performance data with the organ (p. 76).
4. Connector for Service Use
This connector is for technical service use only. Do not connect
anything to this connector.
Display and Panel
3 2
4 5
1
External Connectors
1 3 2 4
