21
Before You Start Playing

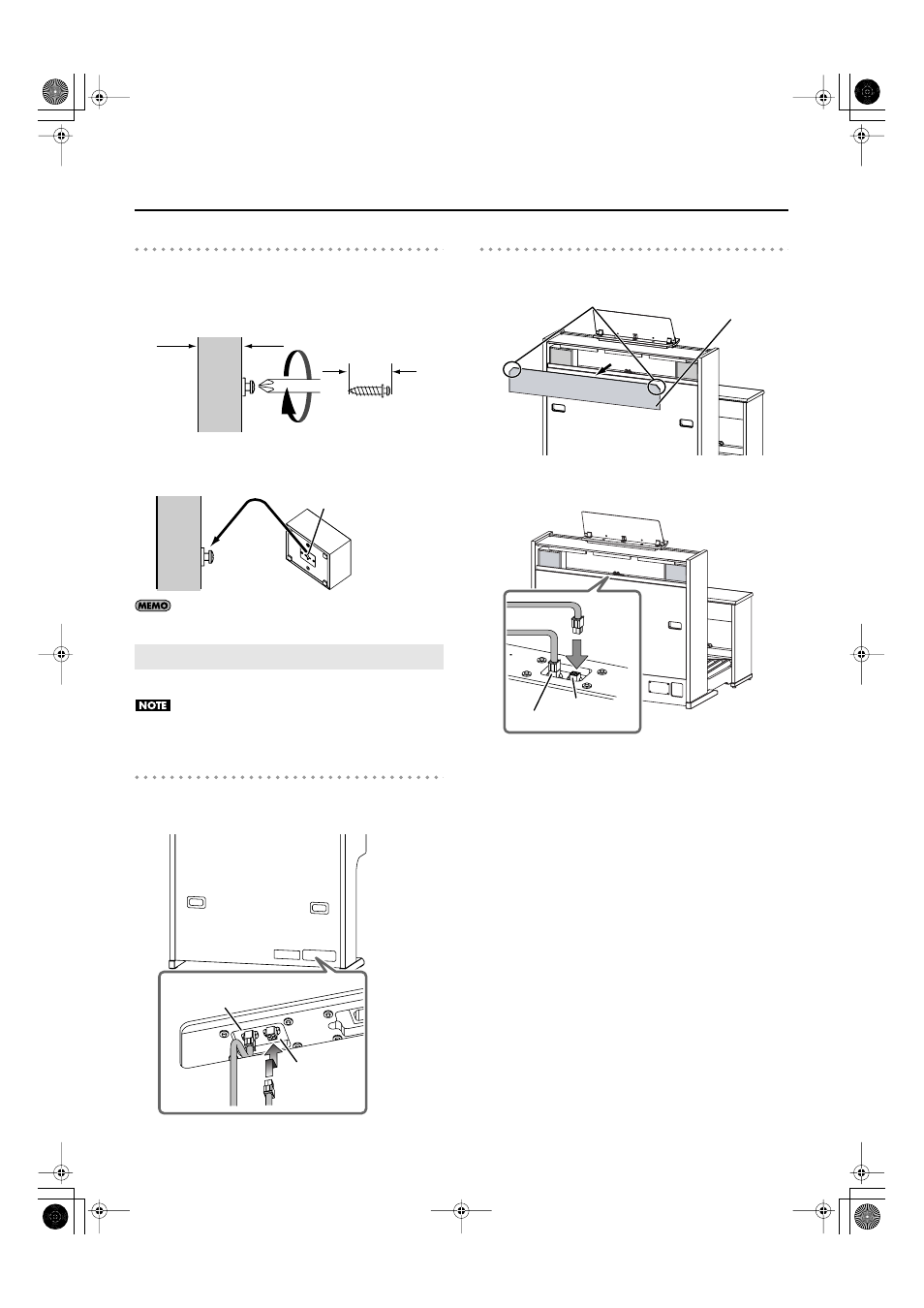

Attaching the satellite speakers
1. Use a Phillips screwdriver to attach the included screws
to the wooden wall.
2. Insert the head of the included screw into the wall
hanging hook located on the rear of the satellite speaker.
The satellite speakers can be attached in either the vertical or
horizontal orientation.
Connect the speaker cables of the satellite speakers to the organ.
Make sure that the organ’s power is turned off before you
connect the satellite speakers to the organ.
For the C-380
1. Connect the speaker cable connectors to the satellite
speaker jacks located on the back of the organ.
For the C-330
1. Remove the satellite speaker grill.
2. Connect the speaker cable connectors to the satellite
speaker jacks located on the back of the organ.
3. Attach the satellite speaker grill.
Pass the speaker cables through the openings where the corners of
the satellite speaker grill have been cut off.
Position the satellite speaker grill so that the side with the corners
cut off is at the top. Lightly tap the outer edge of the grill until it
snaps firmly into place.
Connecting the Satellite Speakers to the Organ
Wooden wall at least 9 mm
(3/8 inches)
22.5 mm
(15/16 inches)
Wall Hanging Hook
Right Speaker
Left Speaker
Corners cut off
Satellite Speaker Grill
Right Speaker
Left Speaker
