Appendix B BIP external cable pin assignments 79
Installing the Breaker Interface Panel for the Ethernet Routing Switch 8010co Chassis
Standalone office alarm connector (J5)
The standalone office alarm connectors (J5) uses a high-density, 26-pin D-sub
connector (
Figure 49 ).

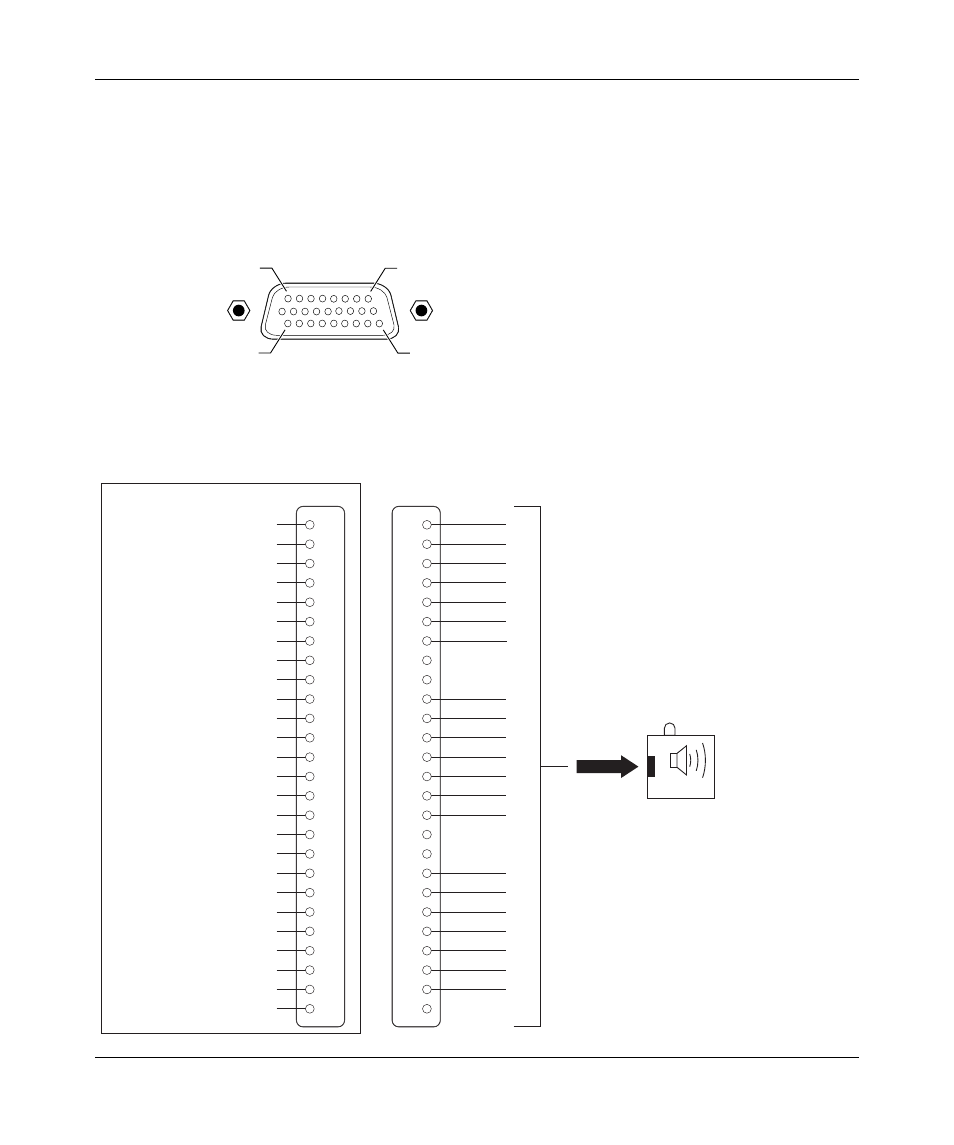

Figure 49 J5 high-density 26-pin D-sub connector
Figure 50 shows the pinouts for the J5 standalone office alarm connector.
Figure 50 J5 standalone office alarm connector
10438EA
1
19
9
26
Critical alarm, Visual (NC)
Major alarm, Visual (NC)
Minor alarm, Visual (NC)
Critical alarm, Audible (NC)
Major alarm, Audible (NC)
Minor alarm, Audible (NC)
External alarm (NC)
Not used
Not used
Critical alarm, Visual (COM)
Major alarm, Visual (COM)
Minor alarm, Visual (COM)
Critical alarm, Audible (COM)
Major alarm, Audible (COM)
Minor alarm, Audible (COM)
External alarm (COM)
Not used
Not used
Critical alarm, Visual (NO)
Major alarm, Visual (NO)
Minor alarm, Visual (NO)
Critical alarm, Audible (NO)
Major alarm, Audible (NO)
Minor alarm, Audible (NO)
External alarm (NO)
Not used
J5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
P5
External cable (not supplied)
BIP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Central office device
10440EA
