46
Chapter 2 Installation
312755-G Rev 00
12 Secure the power supply in bay 1 of the lower chassis (
a
Use the power supply handle to push the power supply firmly into bay 1.
b
Push the extractor lever down to lock the power supply in place.
c
Tighten the two power supply retaining screws.

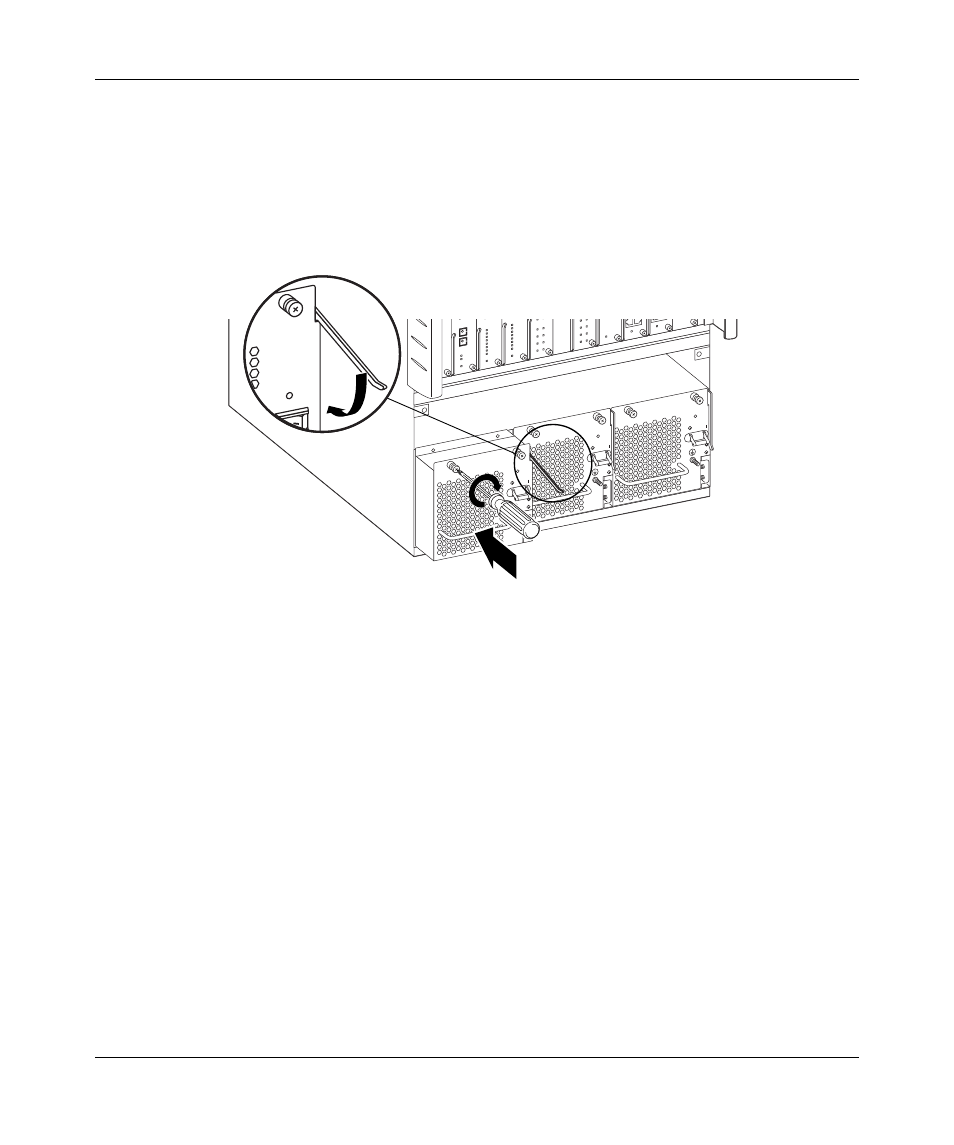

Figure 29 Replacing the power supply
13 Perform steps
for each power supply in the system configuration,
including the upper shelf chassis, if installed.
Use the shorter, 90-inch power cables for upper shelf power supplies.
14 After all power supplies are cabled, go to the next section,
supply cables to the BIP” on page 47
10432FB
+DC
-DC
+DC
-DC
+DC
-DC
