Chapter 2 Installation
55
Installing the Breaker Interface Panel for the Ethernet Routing Switch 8010co Chassis
4
Connect the -48 VDC input feeds according to your configuration
requirements.
a
Match the tagged -48 VDC input feed cable lead with the correct power
terminal block on the back of the BIP (
).
a
Loosen the power terminal block screw just enough to insert the cable
lead (item 1 in
b
Insert the lead and tighten the screw securely.

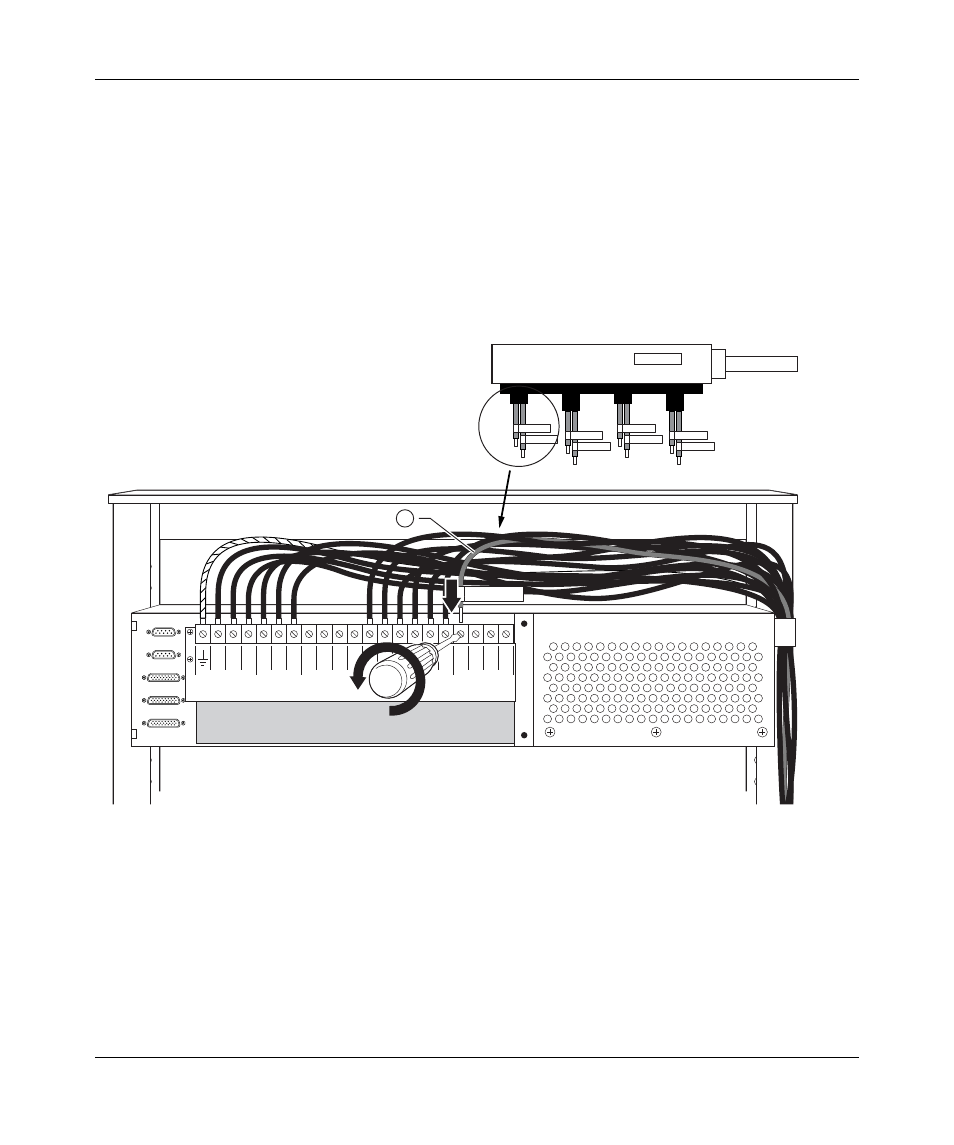

Figure 37 Connecting the A and B -48 VDC input feeds to the BIP (1 of 2)
10406FA
3 2
PS (+)
Lower Shelf
PS (+)
Upper Shelf
PS (-)
Lower Shelf
PS (-)
Upper Shelf
A/B Input Feed
Returns
– 48 VDC
A/B Input Feeds
1 3 2 1
3 2 1 3 2 1
A
2
A
1
B
1
B
2
1 = -48 VDC input feed (Primary A feed)
-48 VDC Feeds
-48 VDC A feed 1
1
