5-2 I/O Board Installation
This chapter provides information for adding I/O boards to the
Express5800/1080Xd core module and to the optional PCIX Unit. Only a
technically qualified person should integrate and configure I/O boards into the
server.
!
CAUTION
Server options other than I/O boards require installation and
configuration by a trained NEC technician.
Identifying PCI Slots in the Core Module
The core module has 12 PCI-X slots. Two slots contain the Basic I/O Board for
standard I/O interface support and a VGA board for the connection of a VGA
video monitor.
Figure 5-1 shows the PCI slots in the core module, Table 5-1 lists board/card
allocations for the PCI slots in the core module, and Figure 5-2 shows 66-MHz
slots assigned to two bus groups in the core module.
GXB GXB GXB
PCI01
PCI02
PCI03
PCI04
PCI05
PCI06
PCI07
PCI08
PCI09
PCI10
PCI11
PCI12

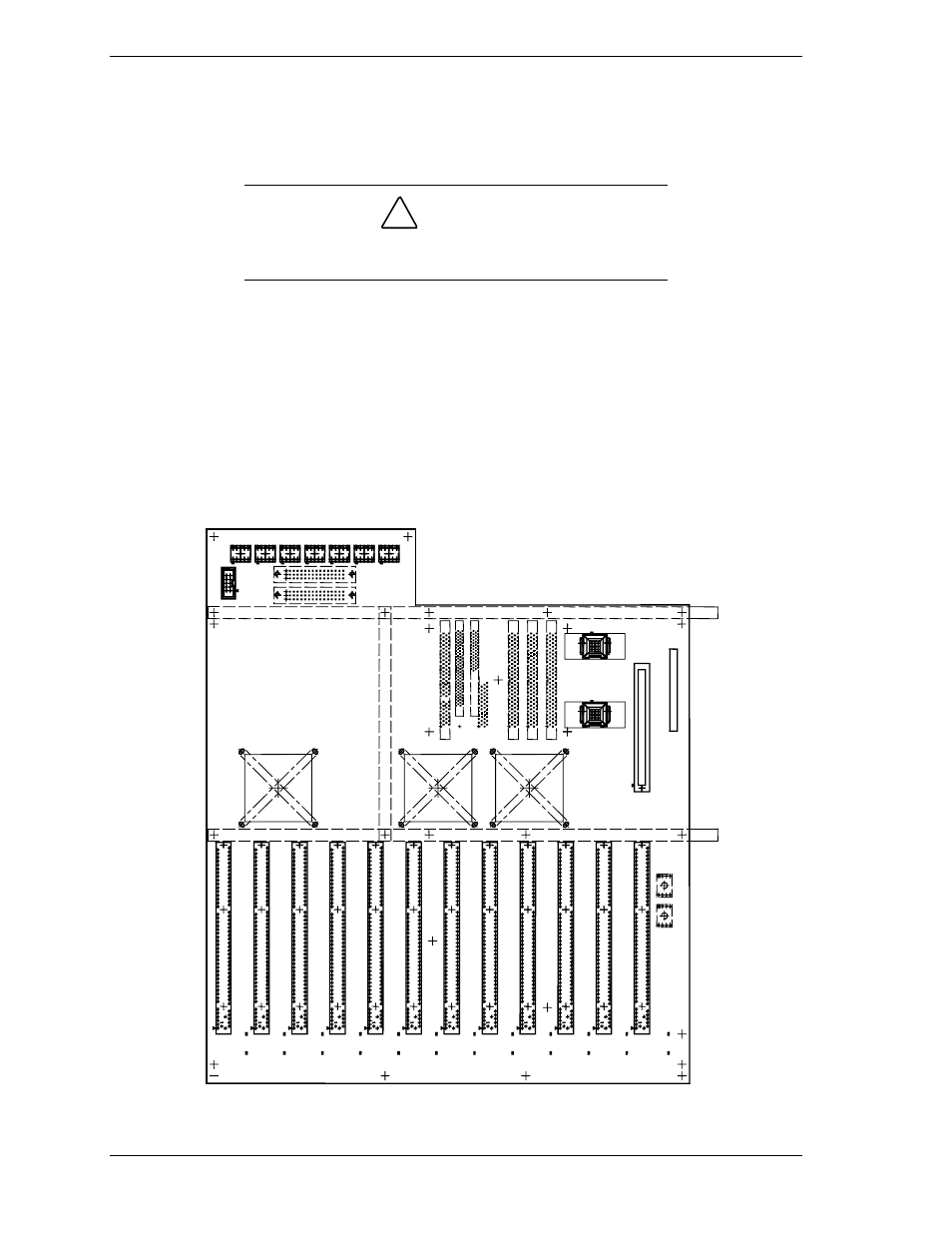

Figure 5-1. PCI Slots in the Core Module
