Reload Paper
25

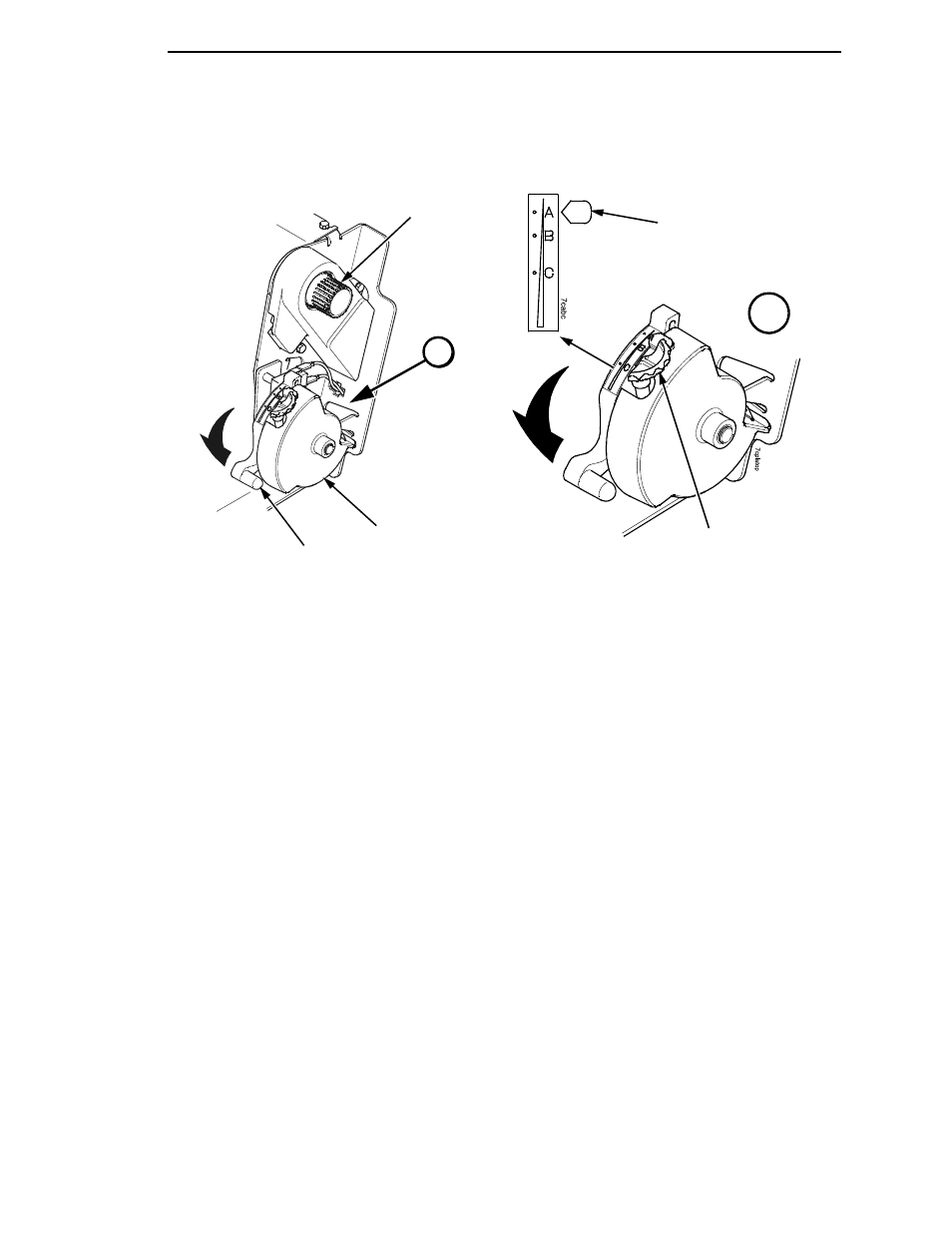

Figure 8. Setting the Platen Lever
9. Turn the platen stop knob clockwise or counterclockwise to match the
paper thickness. (The A-B-C scale corresponds approximately to 1-, 3-,
and 6-part paper thickness).
NOTE: If you are using the same thickness of paper, there is no need to
readjust.
10. Lower the platen lever.
NOTE: Do not set the platen lever too tightly; excessive friction can cause
paper jams, ribbon jams with potential for ribbon damage, smeared
ink, or wavy print.
11. Press ONLINE/CLEAR to remove the “LOAD PAPER” fault message
from the display.
12. Press PAPER ADVANCE several times to make sure the paper feeds
properly beyond the tractors and over the lower paper guide. Feed
sufficient paper to ensure the paper stacks correctly.
13. Close the printer cover. Close the cabinet front door.
14. Press ON LINE/CLEAR to place the printer in online mode and resume
printing.
7crib opn
Platen Lever
Vertical Position Knob
Platen Stop
Knob
A
A
Platen Stop
Paper Thickness
Indicator
