Load Paper
177
Load Paper

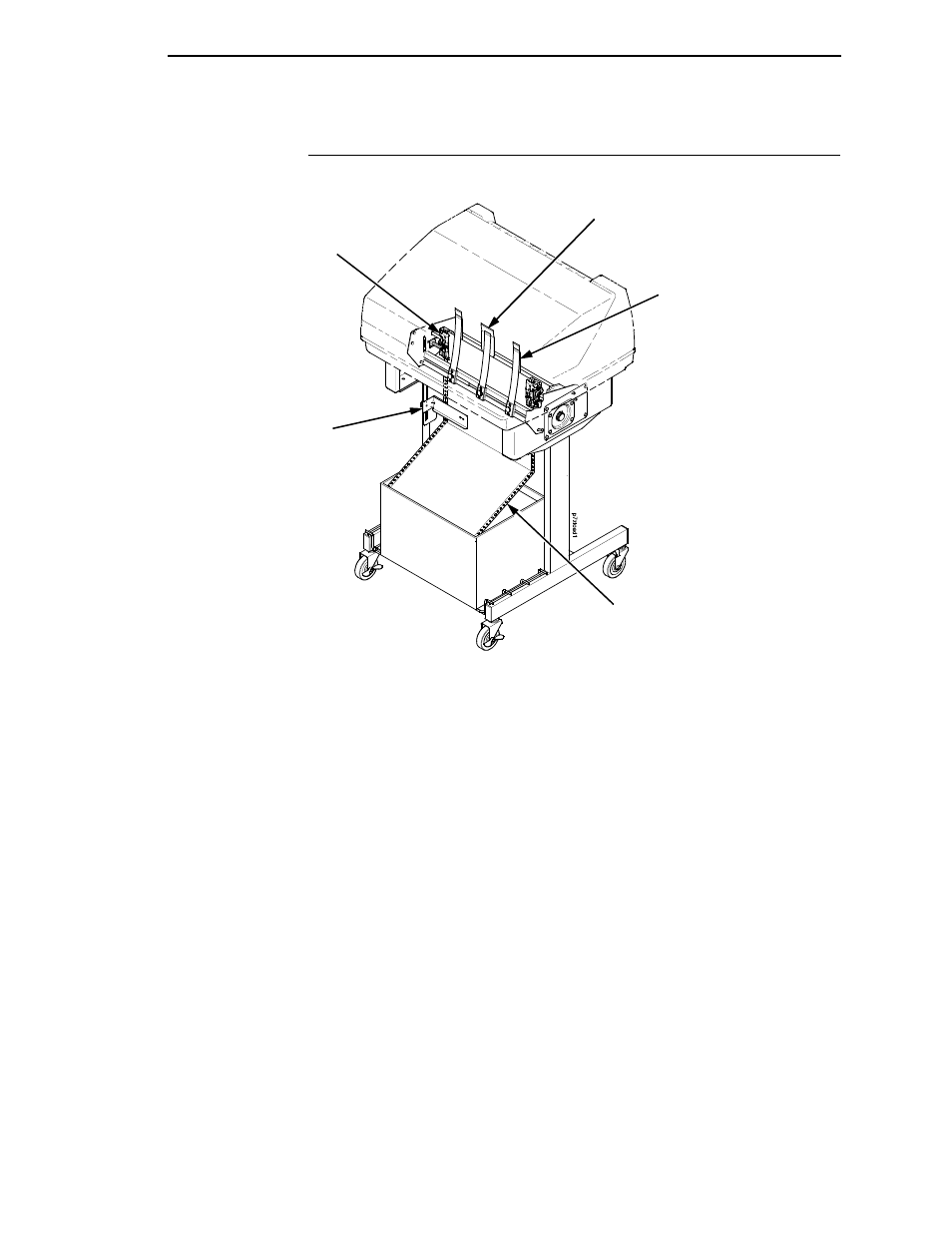

Figure 30. Loading Paper Onto The Printer
1.
Open the tractor doors and slide the paper from below, through the black
paper out sensor slot on the left side, and up between all front and rear
paper guides.
2.
Unlock the left tractor and load the paper on the left tractor sprockets.
3.
Close the tractor door.
4.
Unlock the right tractor and load the paper onto the right tractor sprockets.
5.
Close the tractor door.
6.
Adjust the paper web tightness by sliding the right tractor to remove slack
or to adjust for various paper widths.
7.
Lock the tractors in position by pressing down on the tractor locks.
Paper
Paper Out Sensor
Rear Paper Guide
Front Paper Guide
Tractor Door
