S3F80JB

CLOCK

CIRCUITS

7-3

SYSTEM CLOCK CONTROL REGISTER (CLKCON)

The system clock control register, CLKCON, is located in address D4H, Set1, Bank0. It is read/write addressable
and has the following functions:

— Oscillator frequency divide-by value

The CLKCON.7 - .5 and CLKCON.2- .0 Bit are not used in S3F80JB. After a reset, the main oscillator is activated,
and the f

OSC/16

(the slowest clock speed) is selected as the CPU clock. If necessary, you can then increase the

CPU clock speed to f

OSC

, f

OSC/2

, f

OSC/8

or f

OSC/16

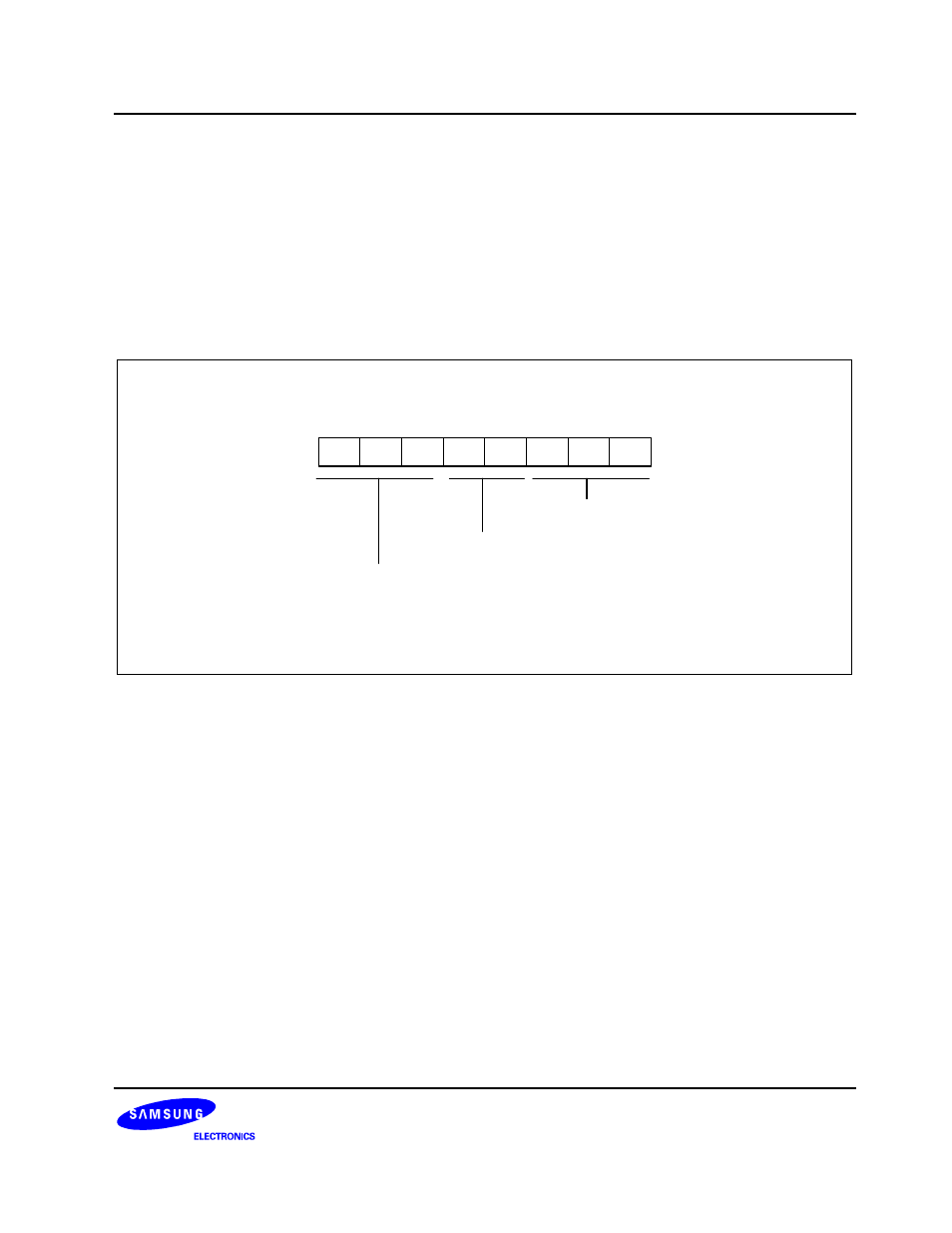

System Clock Control Register (CLKCON)

D4H, Set 1, Bank 0, R/W

MSB

LSB

Not used

Divide-by selection bits for
CPU clock frequency
00 = fosc/16
01 = fosc/8
10 = fosc/2
11 = fosc (non-divided)

Not used

Figure 7-4. System Clock Control Register (CLKCON)
