Technical Product Specification
91
Order #273817
Intel NetStructure
®
MPCBL0001 High Performance Single Board Computer
Contents
4.2.5
PMC Connectors (J25, J26, J27)
There are three 64-pin connectors that make up the PMC card connection:
MOLEX Part Number:
71439-0864
These connectors and pinouts are defined by the following industry standard specifications:
•
Draft Standard Physical and Environmental Layers for PCI Mezzanine Cards: PMC IEEE
(MMSC) P1386.1/Draft 2.3, October 9, 2000
•
Draft Standard for a Common Mezzanine Card Family: CMC IEEE (MMSC) P1386/Draft 2.3,
October 9, 2000
The PMC slot is available at the front panel. See
Figure 13, “MPCBL0001 SBC Connector
for their positions on the board. Pin assignments are listed in
“PMC Connector Pin Assignments - 32 Bit” on page 92
and
Assignments - 64 Bit” on page 93
.

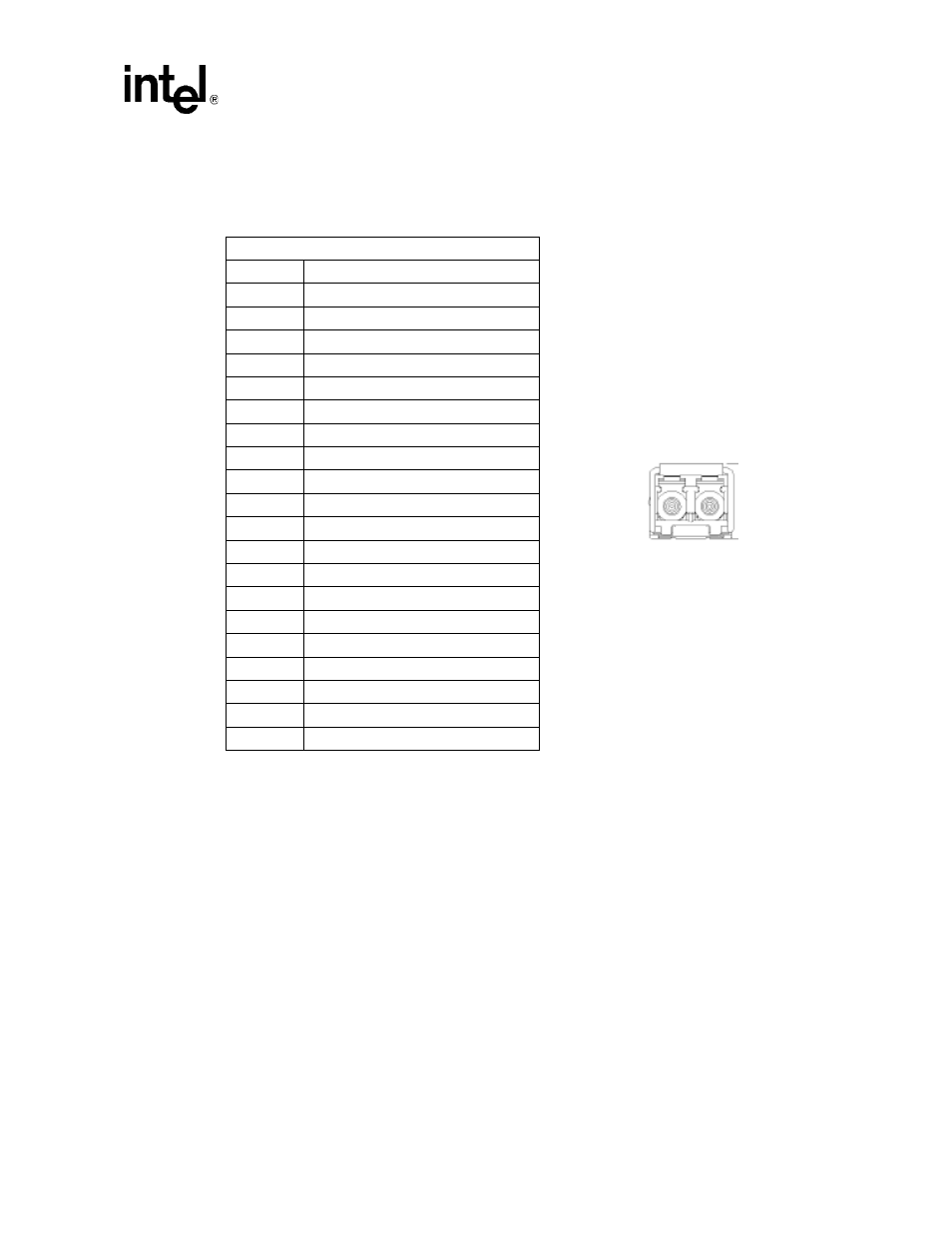

Table 50.
Fibre Channel SFP Pin Assignments
USFibre Channel Connector (J34, J35) Pin
Assignments
Fibre Channel SFP Optical Transceiver Module
(J34, J35)
Fibre Channel CONNECTOR
Pin #
Signal Name
1
Transmitter Ground
2
Transmitter Fault (not supported)
3
Transmitter disable
4
Module Definition 2
5
Module Definition 1
6
Module Definition 0
7
Rate Select
8
Loss of Signal Indication
9
Receiver Ground
10
Receiver Ground
11
Receiver Ground
12
Receiver Inverted DATA Out
13
Receiver Non-Inverted DATA Out
14
Receiver Ground
15
Receiver Power Supply
16
Transmitter Power Supply
17
Transmitter Ground
18
Transmitter Non-Inverted DATA In
19
Transmitter Inverted DATA In
20
Transmitter Ground
