4.1 Backplane Connectors
4.1.1 Power Distribution Connector (Zone 1)
Zone 1 consists of P10, a 34-pin Positronic header connector that provides the following signals:
• Two -48 VDC power feeds (four signals each; eight signals total)
• Two IPMB ports (two signals each, four signals total)
• Geographic address (eight signals)
• 5.55 Amperes are allocated to MPCBL0001 on the -48 VDC redundant power feeds. This is
equivalent to 200 Watts at the minimum input voltage (-36 VDC). The Zone 1 connector and
pin out is compatible with the backplane for Intel NetStructure
®
MPCHC0001 14U Shelf
Technical Product Specification.
Note: The analog test and ring voltage pins defined on P10 are left unconnected on MPCBL0001.
The connector used is Positronic part number VPB30W8M6200A1. Figure 16, “Power
Distribution Connector (Zone 1) P10” on page 84 shows the mechanical drawing of the connector.
The pin assignments are given in Figure 45, “Power Distribution Connector (Zone 1) P10 Pin
Assignments” on page 84 .

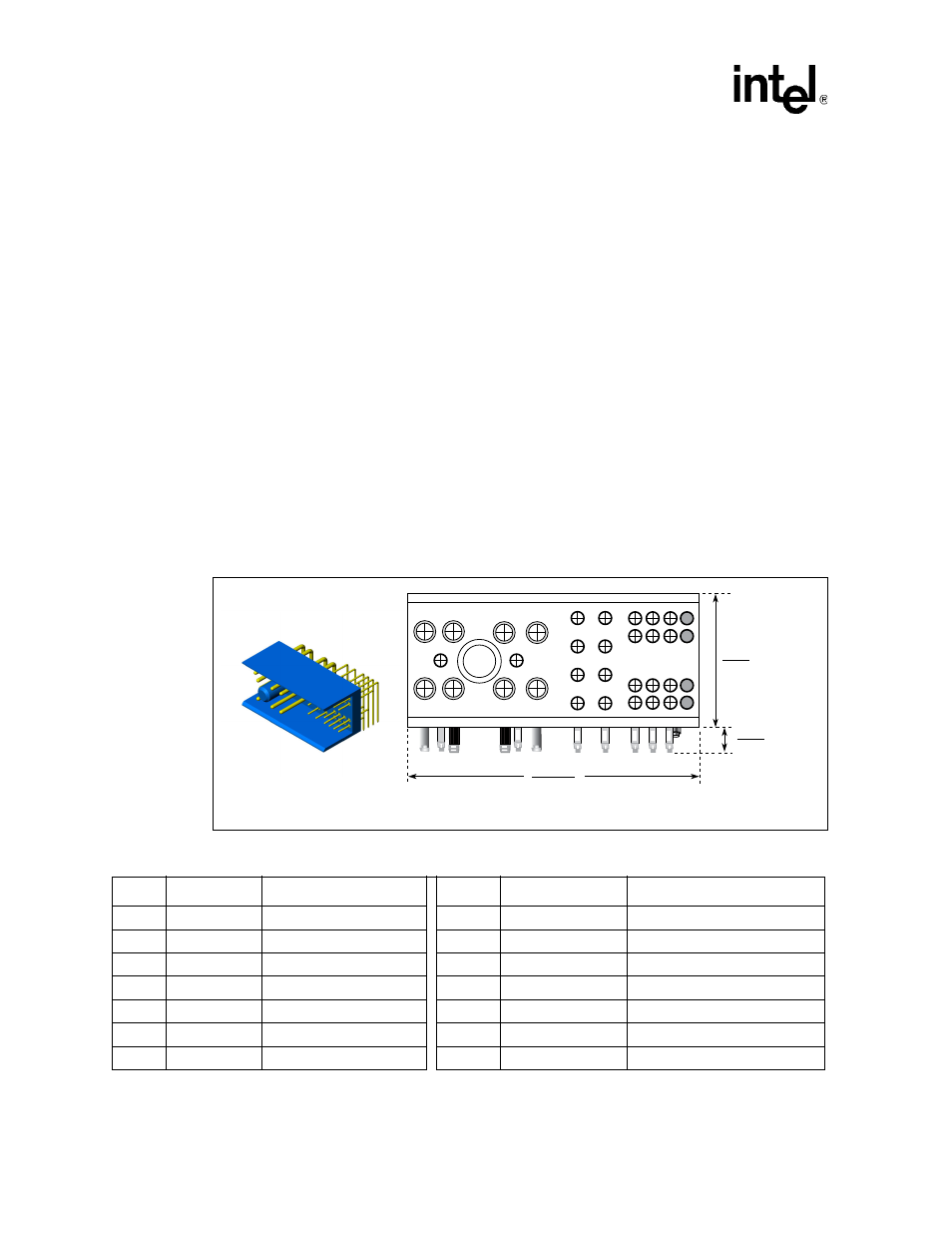

Figure 16. Power Distribution Connector (Zone 1) P10
Table 45. Power Distribution Connector (Zone 1) P10 Pin Assignments
Pin # Signal Name Description Pin # Signal Name Description
1 Reserved No Connect 18 Unused No Connect
2 Reserved No Connect 19 Unused No Connect
3 Reserved No Connect 20 Unused No Connect
4 Reserved No Connect 21 Unused No Connect
5 GA0 Geographic Addr Bit 0 22 Unused No Connect
6 GA1 Geographic Addr Bit 1 23 Unused No Connect
7 GA2 Geographic Addr Bit 2 24 Unused No Connect
B0900-01
46.10
[1.815] MAX
4.10
[0.161] MAX
20.90
[0.823] MAX
