1150 Audio Card, Main Card, and Riser
Card
Port Replicator (1010)
Option Card Cover and Option Card (1020)
UltraBay II (1040)
Device Space Bay Frame (1050)
Upper Cover (1060)
Bracket (1070)
Cables (1100)
Shield Cover (1130)
Main Card Assembly (1140)

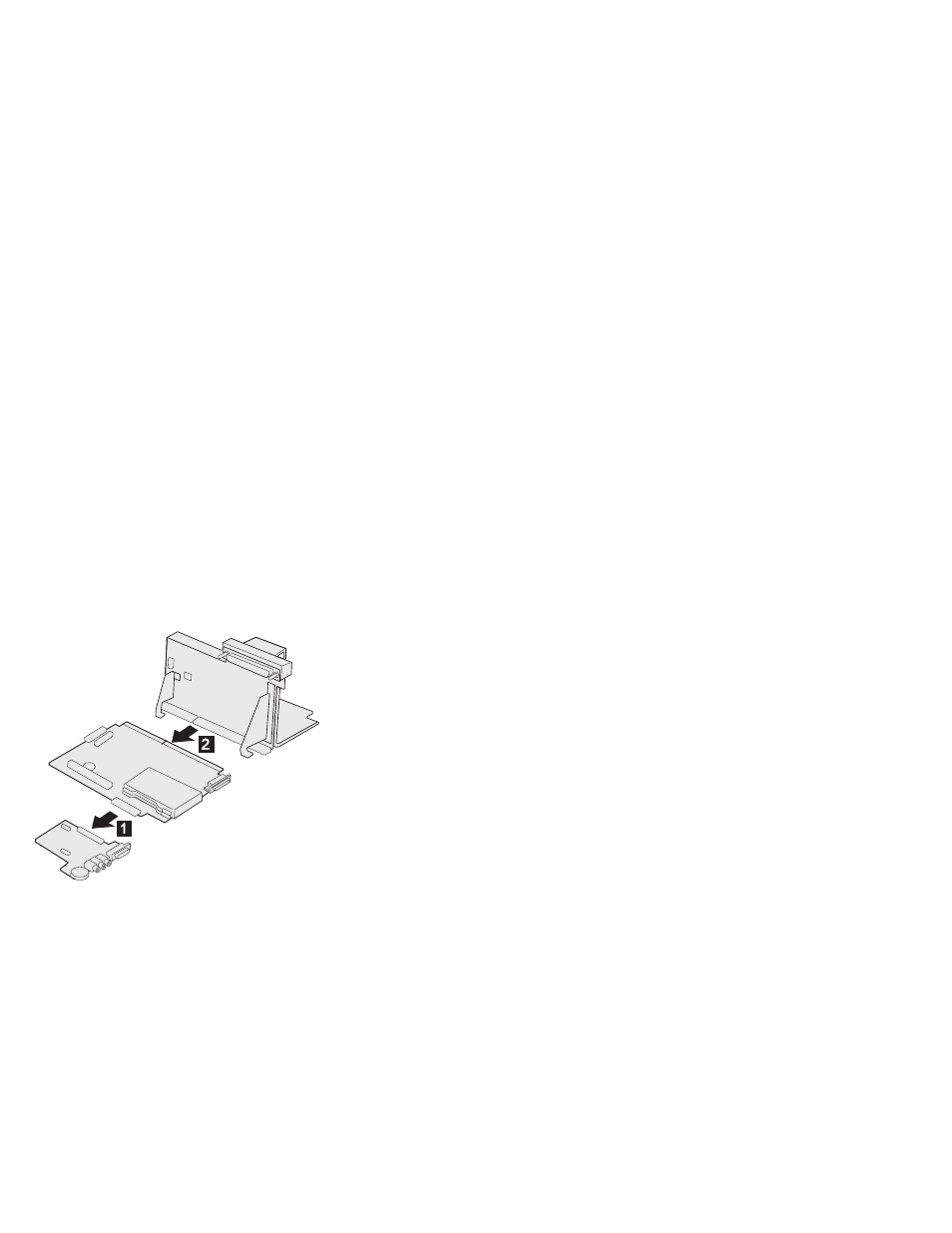

1
: For removing the audio card
2
: For removing the riser card
1
,
2
: For removing the main board
672
IBM Mobile Systems HMM
