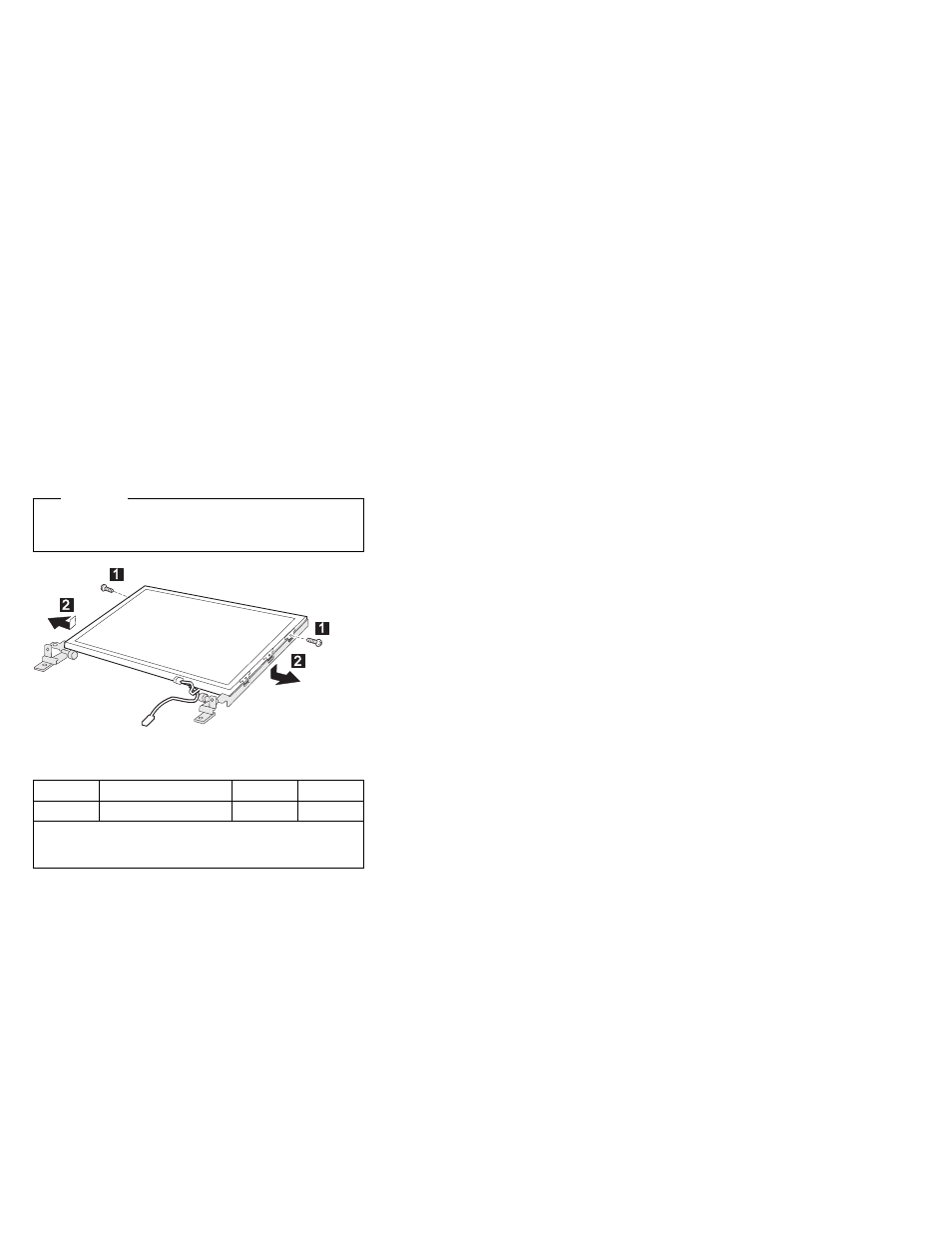

2050 Hinge and LCD Latch

Battery Pack (1010)
UltraBay II Device or 2nd Battery Pack (1020)
Keyboard Unit (1060)
Hinge Cover and Center Cover (1070)
LCD Unit (1090)
LCD Front Cover (2010)
Inverter Card (2030)

Attention

Make sure you use the correct screw when replacing.
A wrong-size screw will damage the LCD panel.

When replacing:

Make sure the connector is not loosen.

Step

Size (Quantity)

Color

Torque

M2.5 x 4 mm (2)

Yellow

4 kgcm

Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.
